Chapter 7 Selection guide of inverter Accessory IR610 high performance vector control frequency inverter user manual
- 162 -
.

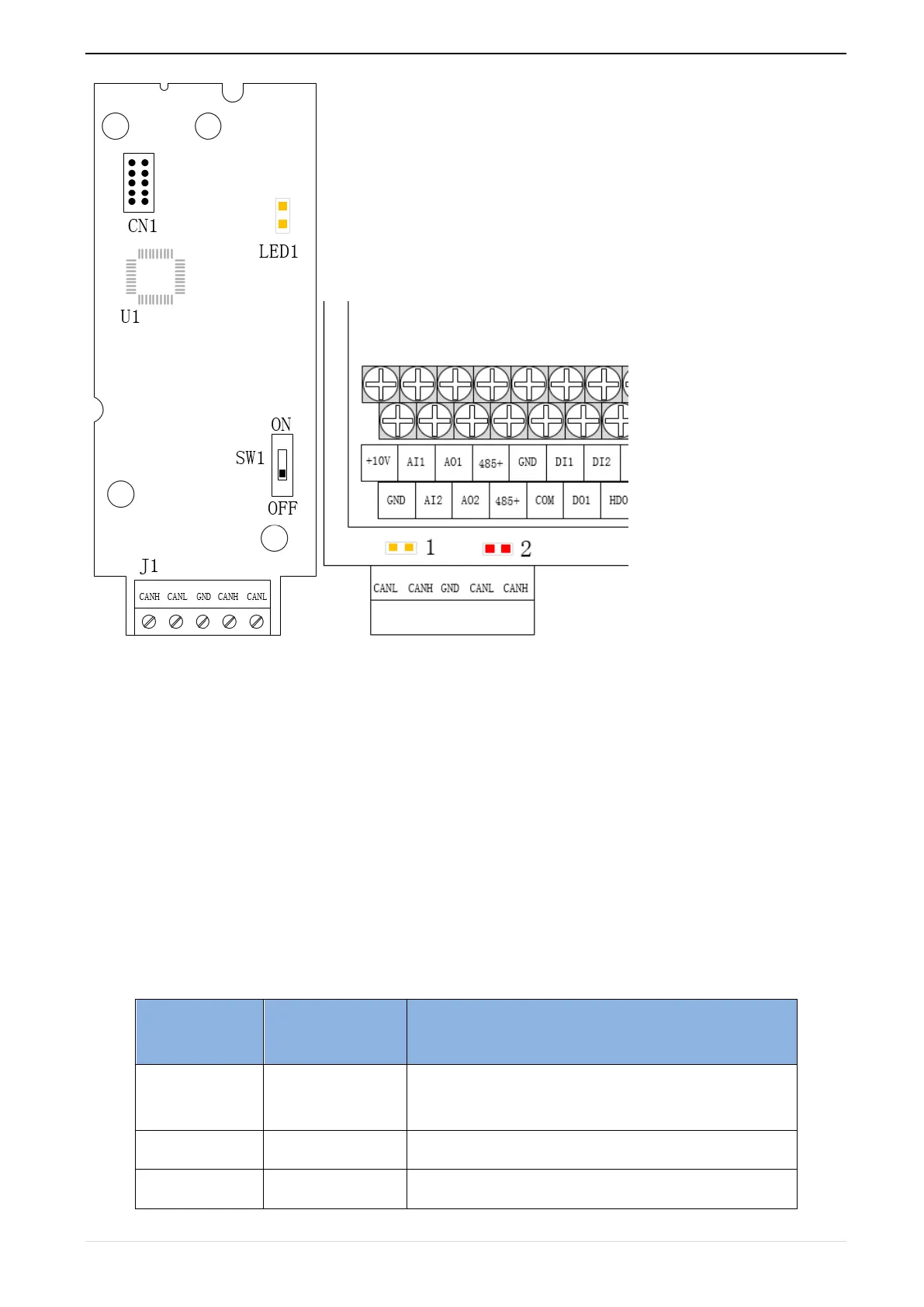

Figure 7-11 CANopen communication card and installation DiagramTable 7-12 CANopen
communication card hardware description
Graphic name
Description
name
Function description
J1
Terminals
CANopen bus terminal block, see description of
Table 7-9
LED1
Power Indicator
Lights up to indicate normal power supply
Indicator light:
Status Indicator
Working status and fault indication:
