IR610 high performance vector control frequency inverter user manual Chapter 5 function code table
- 50 -
Functio
n code
Parameter name
Description
Default
Property

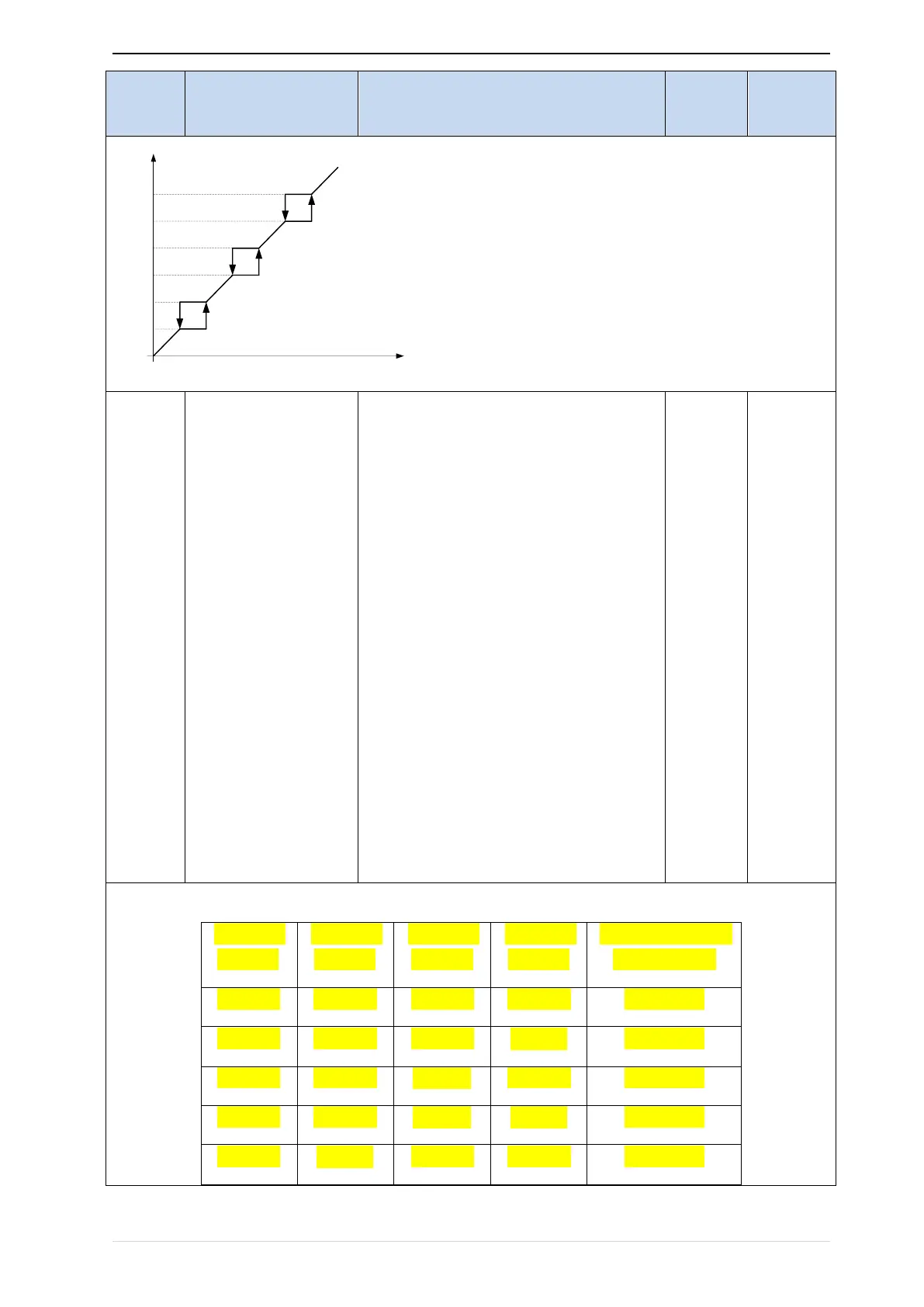

Motor frequency
Giving frequency
P01.13
P01.15
P01.14
P01.17
P01.16
P01.18
P01.19
Multi-step speed
reference source
Unit’digit：0 phase reference source
set by
0-multi-step speed(P01.21)
1-preset frequency (P00.07)
2:AI1
3:AI2
4:AI3(IO expansion board)
5:AI4(IO expansion board)
6:HDI pulse
7:Communication
8:PID
Ten’s digit：Combination of multiple speed
0：Combination method
1：Priority method
00
★
Combination method Description:
Multispeed
terminal 4
Multispeed
terminal 3
Multispeed
terminal 2
Multispeed
terminal 1
Combination method
Speed reference
Ineffective
Ineffective
Ineffective
Ineffective
Multispeed 0
Ineffective
Ineffective
Ineffective
effective
Multispeed 1
Ineffective
Ineffective
Effective
Ineffective
Multispeed 2
Ineffective
Ineffective
Effective
effective
Multispeed 3
Ineffective
effective
Ineffective
Ineffective
Multispeed 4
