- 63-
Function
code
Parameter name
Description
Default
Property

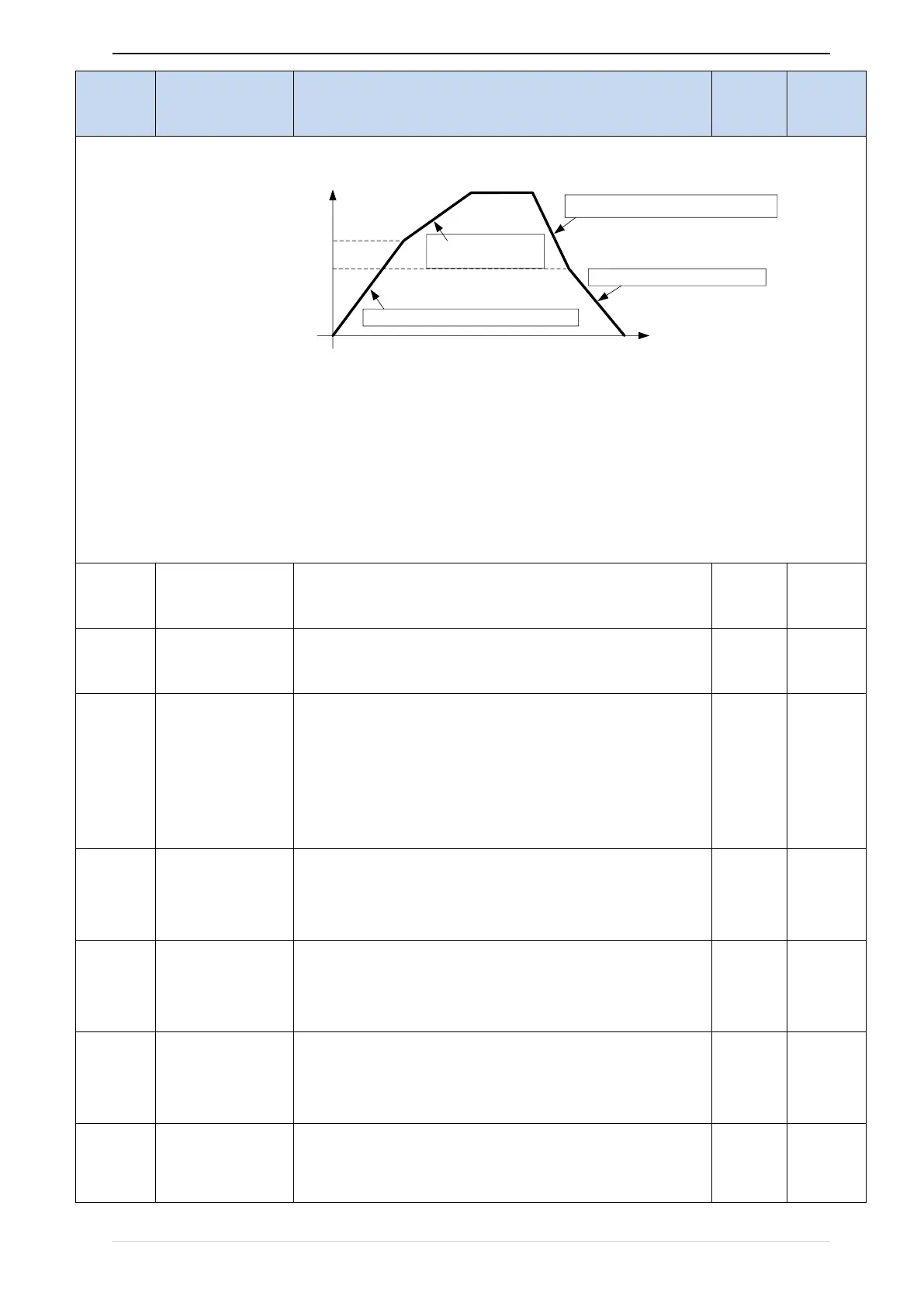

The schematic diagram of selecting acceleration / deceleration time according to the output frequency is as follows：
t
Output frequency
Acceleration time
switch frequency1
(P03.18)
Deceleration time
switch frequency1
(P03.19)
Acceleration time2
Acceleration
time1
Deceleration time1
Deceleration time2
Other ways to select acceleration / deceleration time can be found in the description of relevant parameters。
P03.09
Jog Acceleration
time
Time Setting same as P03.01
6.00s
☆
P03.10
Jog Deceleration
time
Time Setting same as P03.02
10.00s
☆
P03.11
S-curve
Acceleration
begin time
Setting value depend on P03.16
P03.16 = 2, 0.01～30.00s;
P03.16 = 1, 0.1s～300.0s;
P03.16 = 0, 1s～3000s
0.50s
☆
P03.12
S-curve
Acceleration arrival
time
SAME AS P03.11
0.50s
☆
P03.13
S-curve
Deceleration
begin time
SAME AS P03.11
0.50s
☆
P03.14
S-curve
Deceleration
Arrival time
SAME AS P03.11
0.50s
☆
P03.15
Accel and
Deceltime
frequency
0：Maximum frequency
1：Motor rated frequency
0
★
