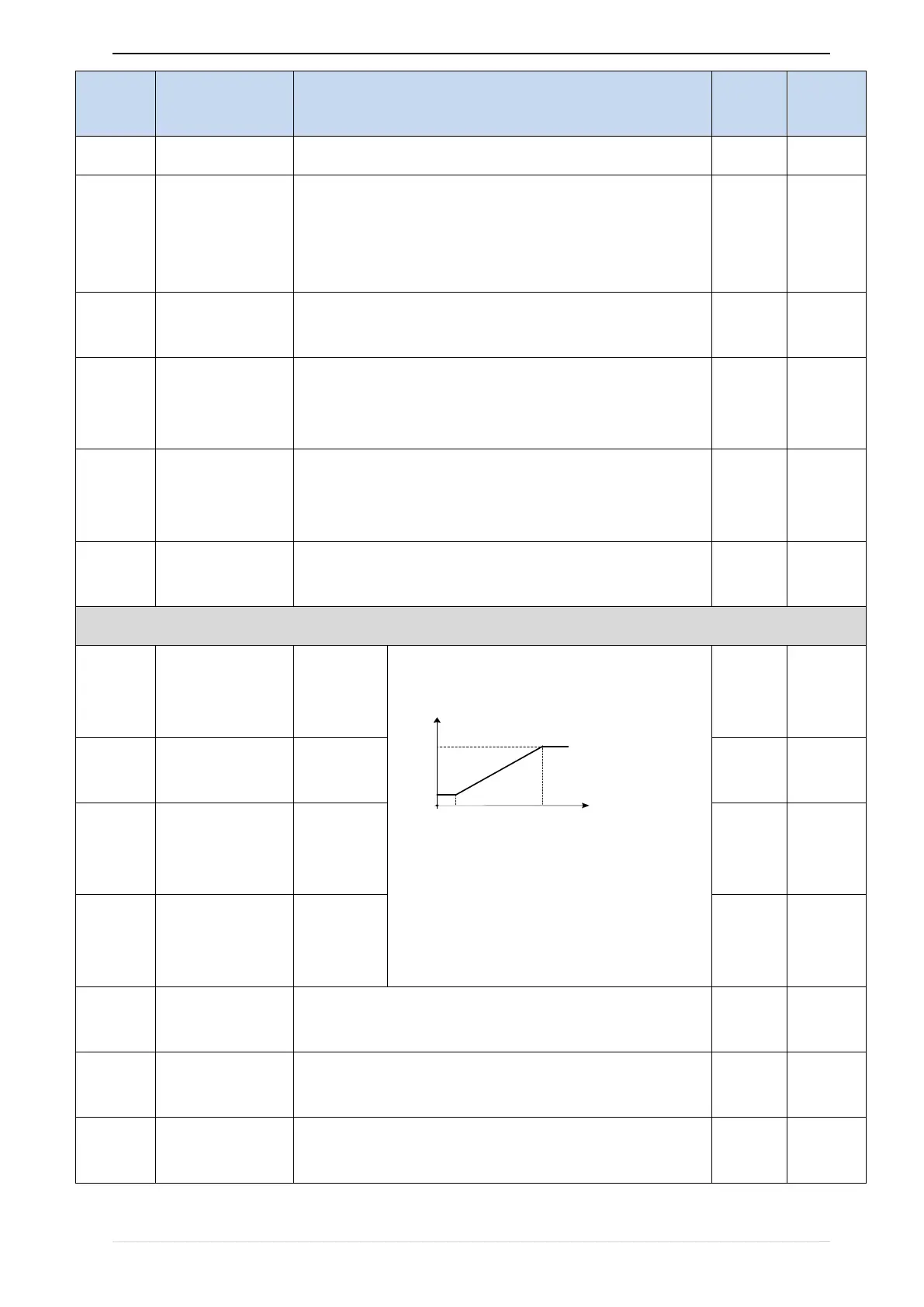

IR610 high performance vector control frequency inverter user manual Chapter 5 function code table
- 64 -
Function
code
Parameter name
Description
Default
Property
benchmark
P03.16
Accel and Decel
time unit selection
0：1s
1：0.1s
2：0.01s
2
★
P03.17
Quickstop
deceleration time
0.01～65000s
5.00s
☆
P03.18
Switchingfrequency
1 in acceleration
time
0.00Hz～maximum frequency(P01.06)
0.00Hz
☆
P03.19
Switchingfrequency
1 in deceleration
time
0.00Hz～maximum frequency(P01.06)
0.00Hz
☆
P03.20
Forward/reverse
Dead band time
0.00s～30.00s Waiting time for zero speed during forward and
reverse switchover
0.00s
★
04 Group Analog and Pulse input
P04.00
Minimum input
pulse frequency
0.00kHz～
50.00kHz
P04.01
P04.03
HDI input frequency
Corresponding setting
P04.00
P04.02
1.00kHz
☆
P04.01
Maximum input
pulse frequency
0.00kHz～
50.00kHz
30.00kHz
☆
P04.02
Setting
Corresponding to
Minimum input
-100.0%～
100.0%
0.0%
☆
P04.03
Setting
Corresponding to
maximum input
-100.0%～
100.0%
100.0%
☆
P04.04
Pulse input filter
time
0.000s～10.000s
0.050s
☆
r04.05
Pluse input
frequency
0.00kHz～50.00kHz(it is used to check HDI pulse input
frequency)
-
●
r04.06
HDI equivalent
value
-100.0%～100.0%(it is used to View the output of the HDI
mapping curve)
-
●
