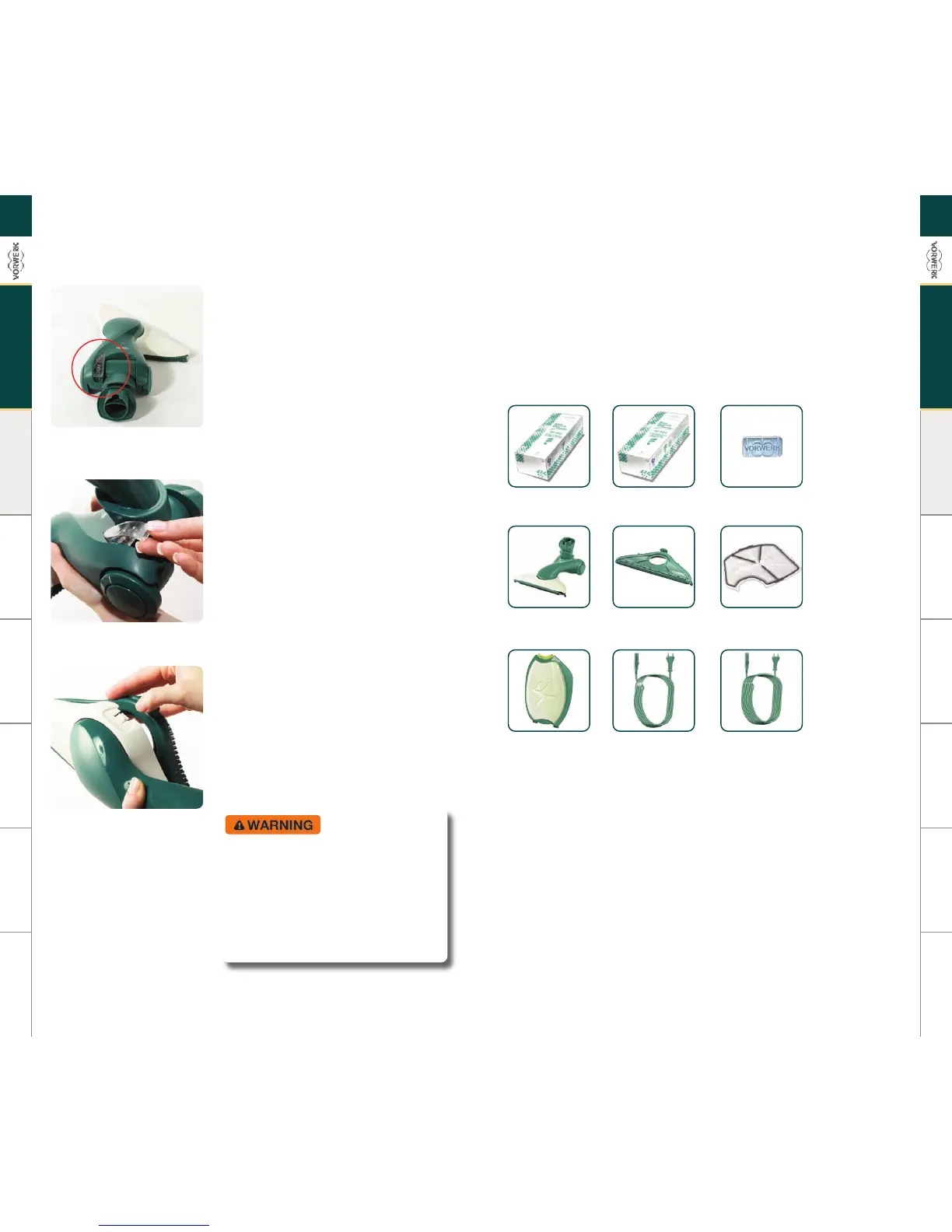

FIGURE 38
Kobold VK 140 with HD 40
Spare parts & consumables
5035
FP 140
5033
FP 140 + DOVINA
4856
DOVINA
5090
HD 40
4866
FILTRO MOTORE
5041
UNITA’ FILTRO
5040
PIASTRA CON SETOLE
Maintenance of the HD 40
If the HD 40 becomes clogged while using
the Kobold VK 140, open the transparent
hatch on the upper side of the brush and
remove the blockage, then close the hatch
again.
(FIGURE 38)
To open the transparent cover pull it
upwards. To close it, replace it and push it
backwards.
(FIGURE 39)
If the bristle plate is worn out, you can
replace it: to remove the old one press the
hook downwards and detach it, attach now
the new bristle plate beginning from the
front paying attention the 3 hooks are
inserted in the hinges and strongly pressing
till the back hook clicks into place.
(FIGURE 40)
Before doing any maintenance,
disconnect the appliance from the mains
supply by removing the plug.
Do not twist the HD 40 plate over the
mechanical end stop.
Keep small parts such as the transparent
cover away from children due to the danger
of choking and suffocation.
Maintenance Spare parts & consumables
VK 140
33
VK 140
32
FIGURE 39
5090
CAVO 7 M
5040
CAVO 10 M
FIGURE 40
