Pulilux PL 515
Spare parts & consumables
4750
MODULO PECARI
4751
MODULO PANDA
4752
CARTER INFERIORE
4753
CONFEZIONE 6 PAD
The two Pulilux PL 515 modules should
never be washed, but can be easily cleaned
using the accessories of the Kobold VK 140.
The brush units and housings can be
replaced when necessary.
With the Hard Floor module, it is possible to
change just the Pads, since they tend to
wear down more rapidly than the other
brushes.
If the PAD set (hard floor module) is worn,
replace it with a new set. To do this, lever
up the white ring under the PAD using a
flat, thin tool that is not sharp. When fitting
the new PAD, make sure that the
attachments penetrate correctly into their
respective seats.
(FIGURE 13)
If the polishing pads (Polishing module)
are heavily soiled, for example, by wax
residues, the module must be replaced.
If necessary, the brush unit housing plate
can also be replaced.
Open the cowling, remove the brush unit
and apply leverage to the two attachment
points, exerting the same force on both
points (as shown in
FIGURE 14).
After inserting the new plate onto the two
pins, position the brush unit on the plate,
close the cowling and lower the handle: the
Pulilux PL 515 is now ready to use again.
For exceptional cases in which obstructions
have to be removed from the frontal suction
channels, open the cover as shown in the
photo and remove the obstruction. Then
close the cover again by attaching the two
hooks and pressing the pins into their
guides.
(FIGURE 15)
Pulilux PL 515
Maintenance
PL 515
73
PL 515
72
Maintenance Spare parts & consumables

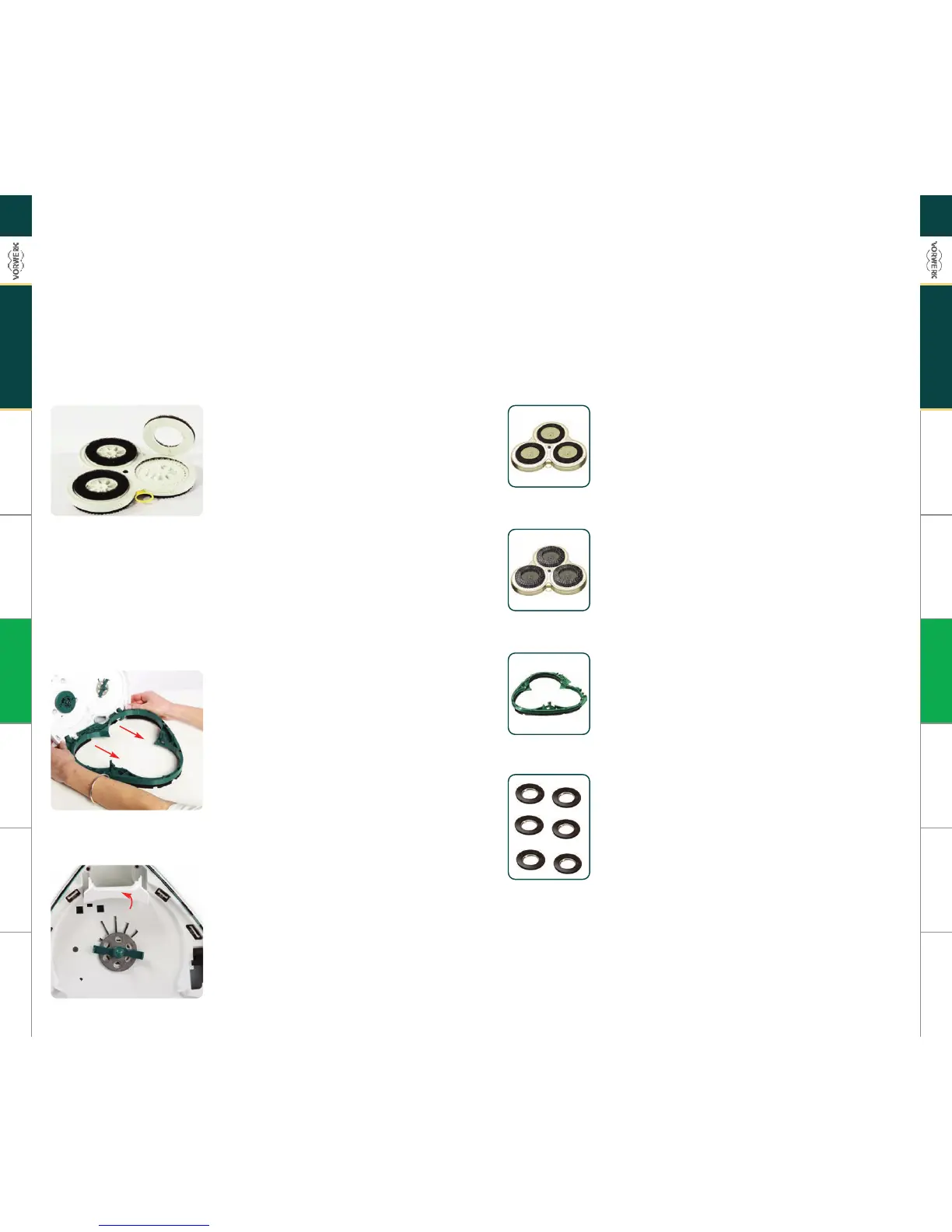

FIGURE 13
FIGURE 14
FIGURE 15
