TSLM - M601 Operational & Install Manual

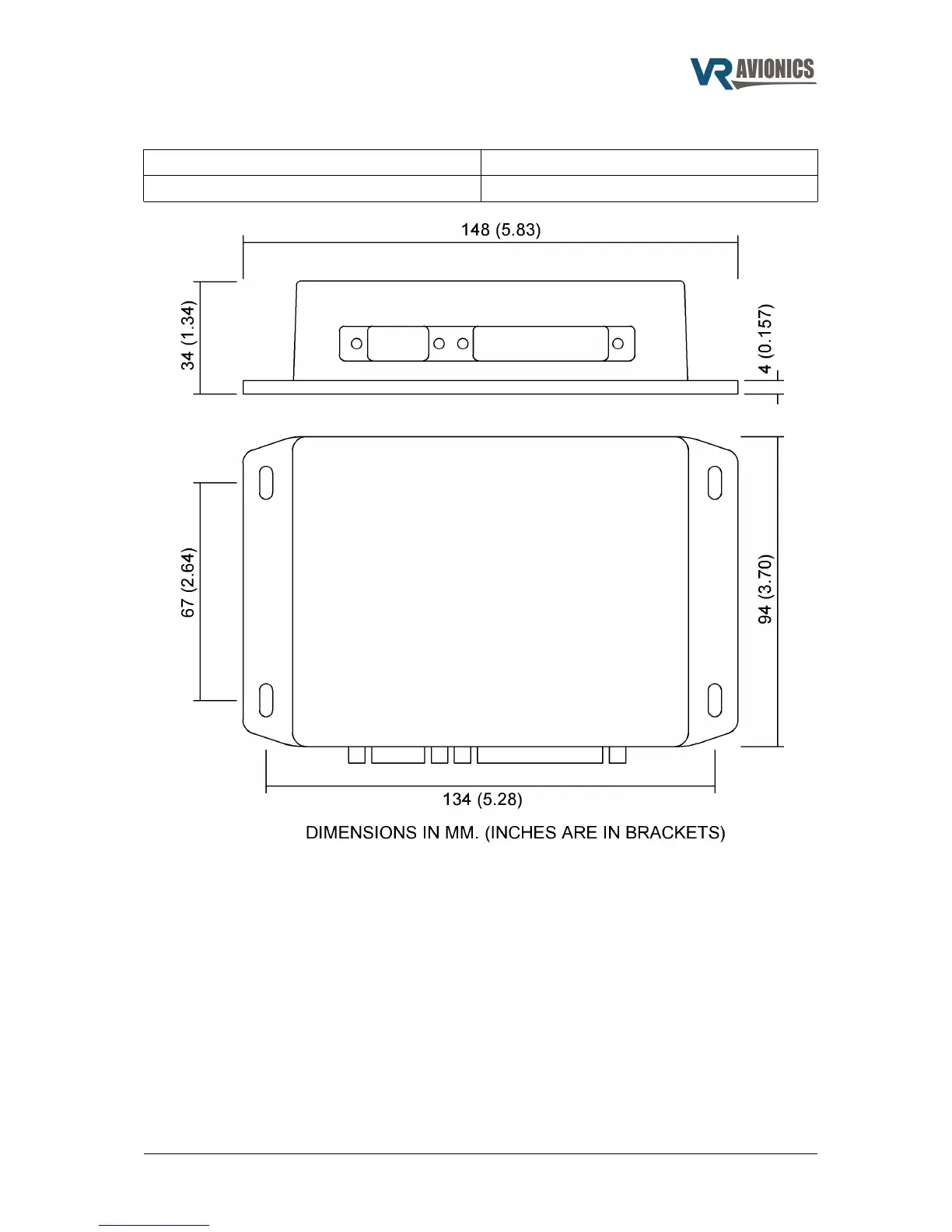

Dimensions (SN 5001 – 6200)
Weight 350g (0.772 lb)
Dimensions 150 x 95 x 35mm (5.9" x 3.74" x 1.38")
RS232 Data Interface (SN 5001 – 6200)
The TSLM uses a RS232 interface (9600 baud, 8 data-bits, 1 stop-bit, no parity) to link to a
Personal Computer, Laptop or similar device. The pins used on the DB-9 port are as follows:
2 – RXD
3 – TXD
5 – GND
The TSLM will transmit a stream of data 10 times per second out on pin 2. Please contact VR
Avionics should you require detailed protocol information.
