TSLM - M601 Operational & Install Manual
TSLM Status Light
The TSLM drives an annunciator or panel light in the cockpit that provides feedback to the pilot
concerning the status of the TSLM system such as error codes. The TSLM light's wiring in the next
figure shows the common circuit-breaker that may be used for the whole annunciator system.

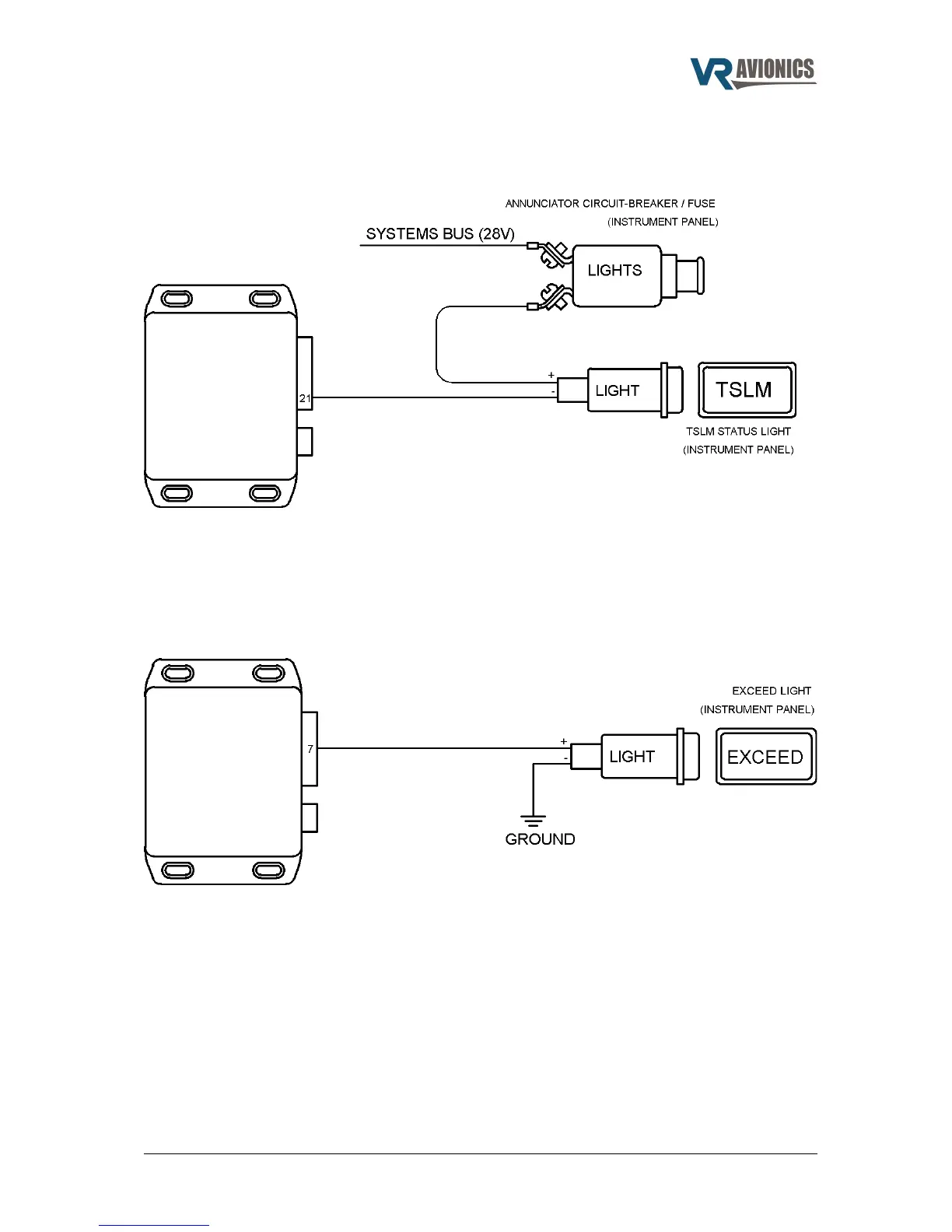

Figure 10 - Status Light Wiring
Exceed Light
The TSLM drives another annunciator or panel light in the cockpit as shown in the following
diagram. Though not absolutely necessary we do strongly recommend installing this light. It lights
up during start-up of in-flight when an exceedence occurs, or is about to occur if no corrective
action is taken. You can leave this out if not wanted or if this functionality is already provided for.
Figure 11 - Exceed Light Wiring
06/29/16 © 2016 VR Avionics page 20 of 33
