TSLM Pin Definitions
ITT+ 1
14 ITT-
N1 2
15 N2
VOLT 3
16 TORQUE
OIL PRESS 4
17 OILT-
CAN-H 5
18 CAN-L
BETA 6
19 RUN
EXCEED+ 7
20 START
EHT+ 8
21 STATUS-
ICONTACTOR+ 9
22 IGNITION B+
IINTERUPTER+ 10
23 EHT-
IIGNITION A+ 11
24 POWER
POWER 12
25 OILT+
GROUND 13

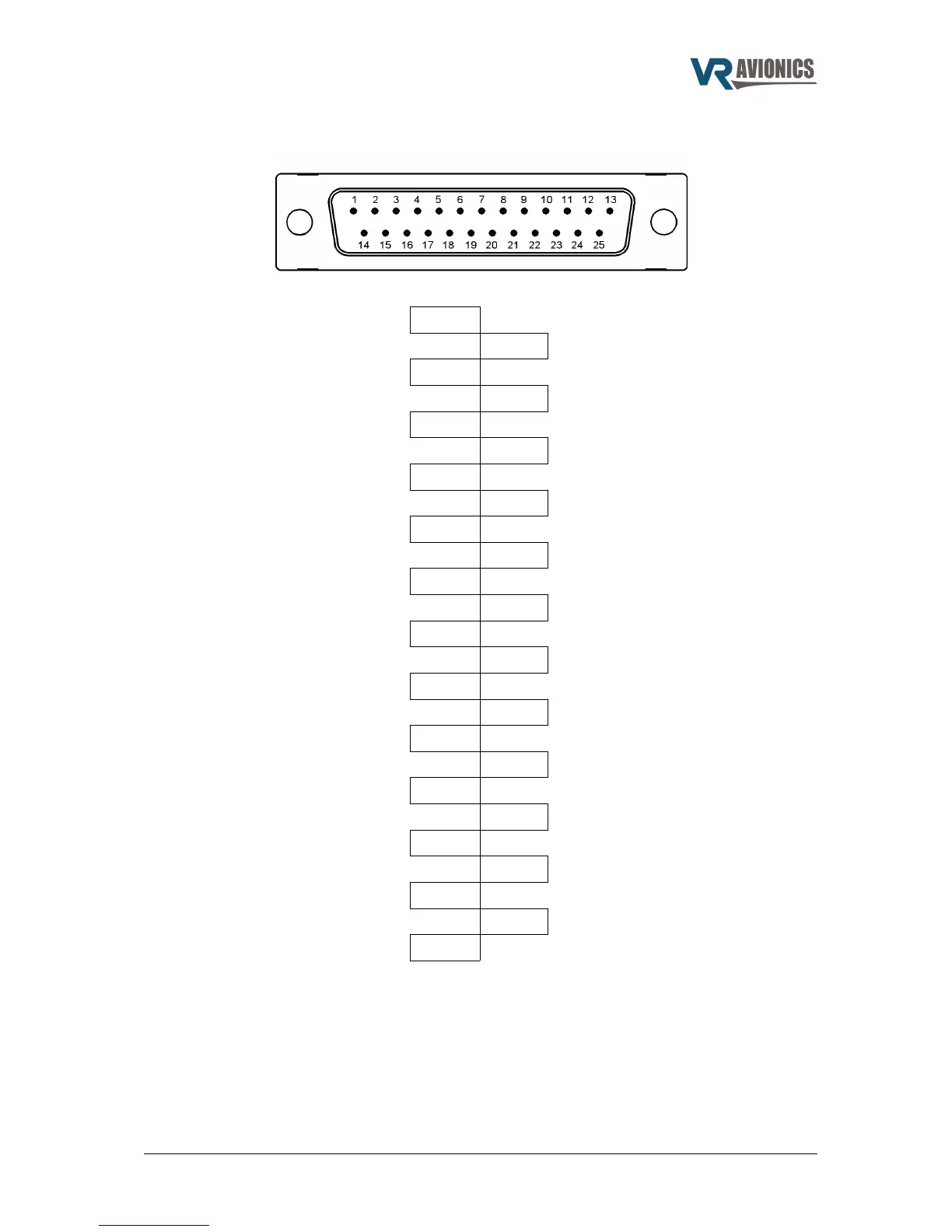

Table 1 - TSLM Connector
