VWR B2 Series - Appendix; Dimensions; Connectors

- 53 -
The command changes settings for a current working mode if, for a particular balance type, last digit settings
are assigned to the working mode.
An example:
Command:
LDS_1<CR><LF>
– set last digit option to value ‘always’
Response:
LDS_OK<CR><LF>
– ‘always’ value set
20. APPENDIX

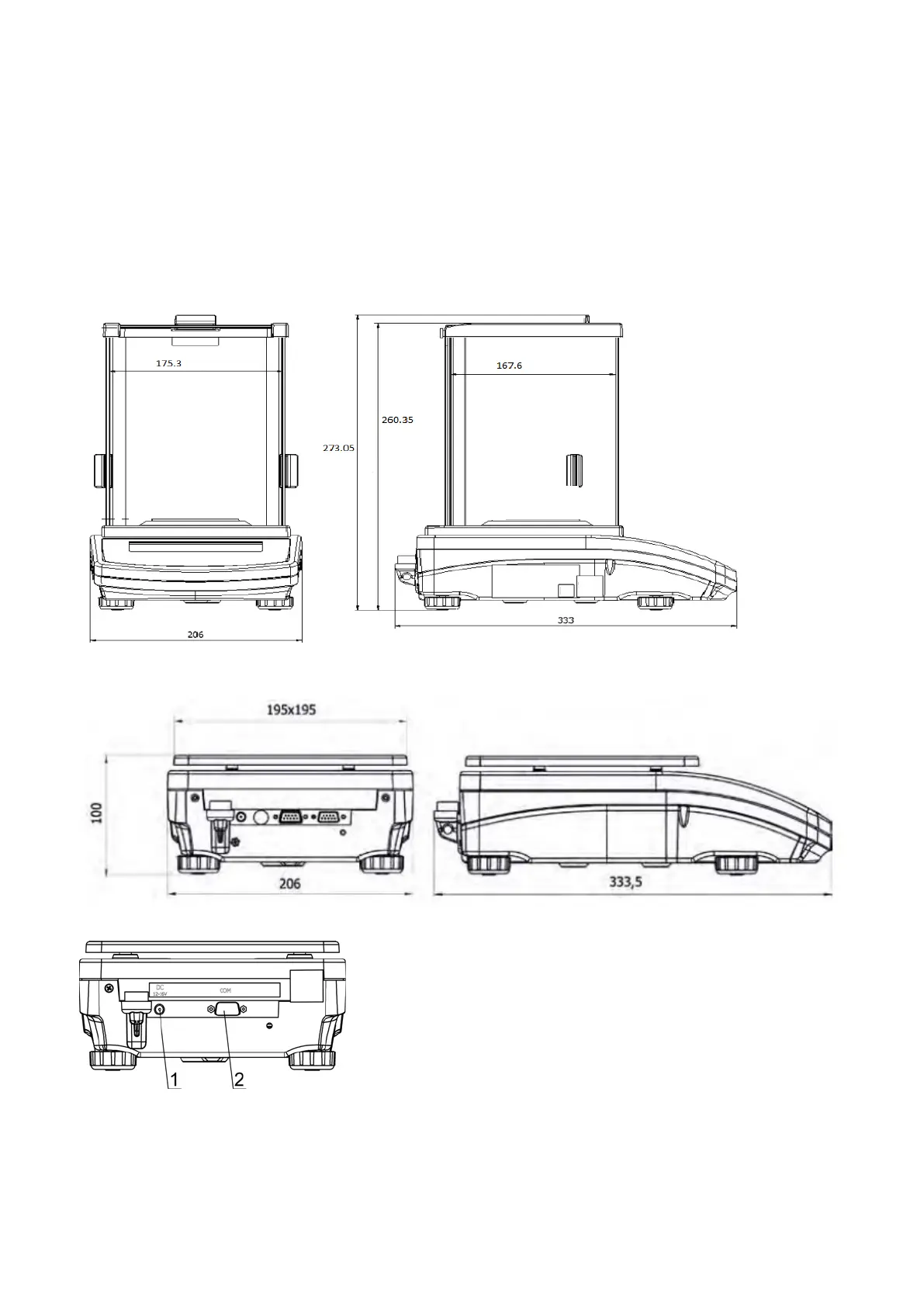

20.1. DIMENSIONS
B2 series with d=0.1mg and d=.001g:
B2 series with pan 195 x 195 mm:
20.2. CONNECTORS
1
Power supply socket
2
COM connector (printer)
