6 Components and operator's controls
19 100_0302_cp_0001.fm
6 Components and operator's controls
Recoil starter
The recoil starter starts the engine.
In certain operating situations, e.g. when ramming in posts and grounding rods, it can be advantageous
to change the traction direction of the recoil starter, i.e. the position of the recoil starter should be different
to the standard position. In such cases, consult the Service Department of your Wacker Neuson
representative.
Gas handle
The gas handle has several positions:
 Idle position
 Gas handle in its original position, not pressed.
 Engine running at idle speed.
 Percussion system disengaged and does not strike.
 Working position
 The machine is pressed against the material when the gas handle is pressed.
 Engine running at maximum speed.
 Percussion system engaged and strikes.
 Machine raised
 Machine is raised from the material when the gas handle has been pressed.
 Engine speed limited at high speed.
 Percussion system engaged, but does not strike.
Tool holder
The tool holder is used to hold the tool.

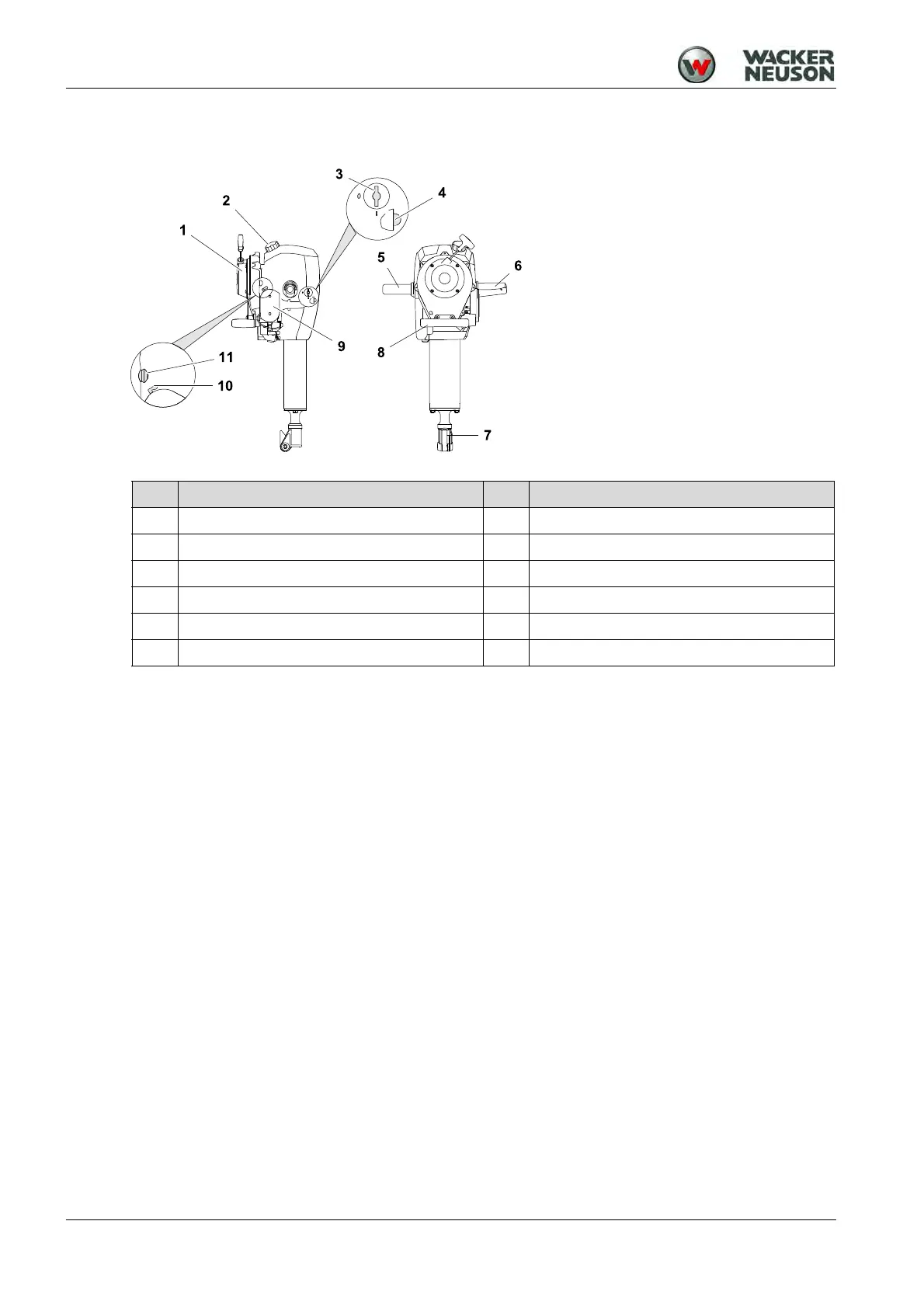

Item Designation Item Designation
1 Recoil starter 7 Tool holder
2 Fuel cap 8 Supplementary handle
3 Fuel tap 9 Air cleaner
4 Fuel pump 10 Choke
5 Handle 11 OFF switch
6 Gas handle
