Wacker Neuson BS 60-4 Repair Manual

Rammer Repair Oil Injection (if equipped)
wc_tx001549gb.fm 119

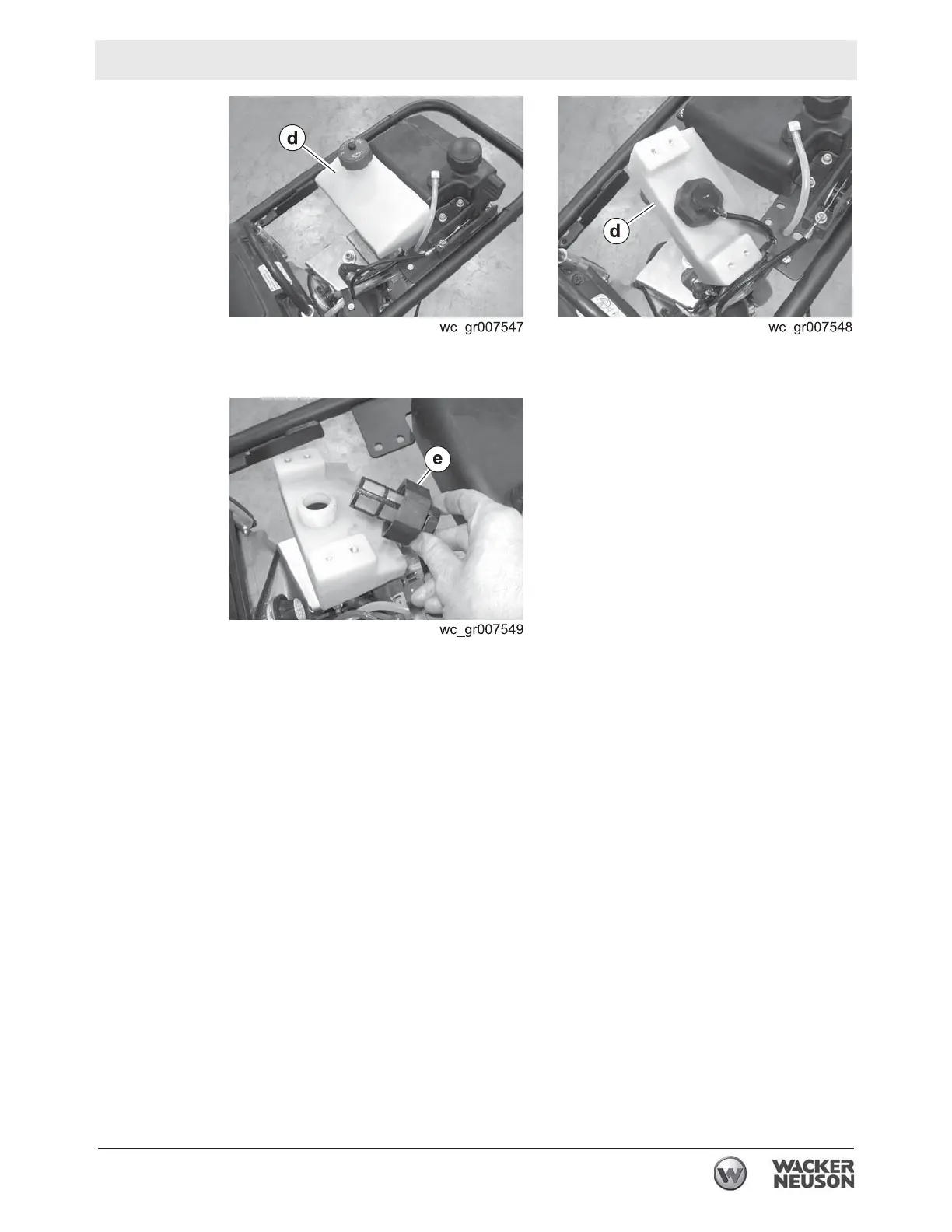

7.2.5 Remove the screws that hold the oil tank and turn it upside down.
7.2.6 Unscrew the float switch assembly (e) from the oil tank.
7.2.7 Remove the float switch and wiring from the machine.
Installation
Perform the procedure below to install the float switch.
7.2.1 Screw the new float switch assembly into the oil tank.
7.2.2 Thread the wiring through the machine to the engine.
7.2.3 Reinstall the oil tank. Torque screws to 9 Nm (6 ft.lbs.).
7.2.4 Reinstall the silencing cover.
7.2.5 Connect the wiring to the engine.
7.2.6 Reinstall the carburetor guard. Torque screws to 23 Nm (16 ft.lbs.).
Result
The replacement procedure is now complete.

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
