Wacker Neuson BS 60-4 Repair Manual

Engine and Upper Machine Components Repair
62 wc_tx001546gb.fm

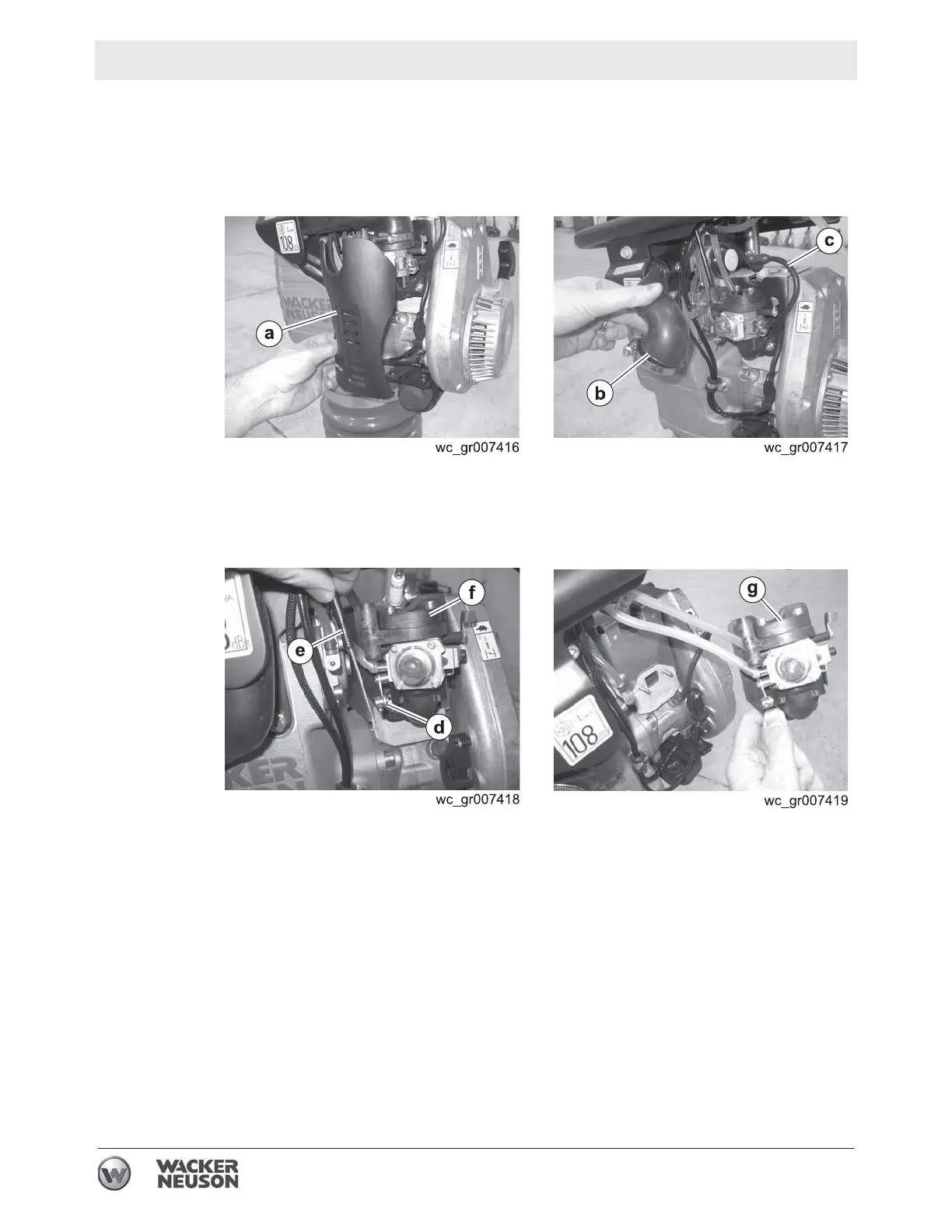

4.19 Replacing the Walbro Carburetor (auto-release choke models)
Removal
4.19.1 Stop the machine and allow it to cool.
4.19.2 Remove the carburetor guard (a).
4.19.3 Loosen the hose clamp and remove the air duct
(b).
4.19.4 Disconnect the ignition wire (c) from the spark plug.
4.19.5 Loosen the clamp
(d) and remove the throttle cable (e) from the
carburetor adapter (f).
4.19.6 Remove the two nuts and washers and remove the carburetor
assembly
(g) from the machine.
This procedure continues on the next page.

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
