Wacker Neuson BS 60-4 Repair Manual

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 71
4.23 Replacing the Carburetor (WM 100 Engines)
Requirements
• Machine shut down and cool
• Loctite® 243 or equivalent
• Torque wrench
Removal
Perform the procedure below to remove the engine.

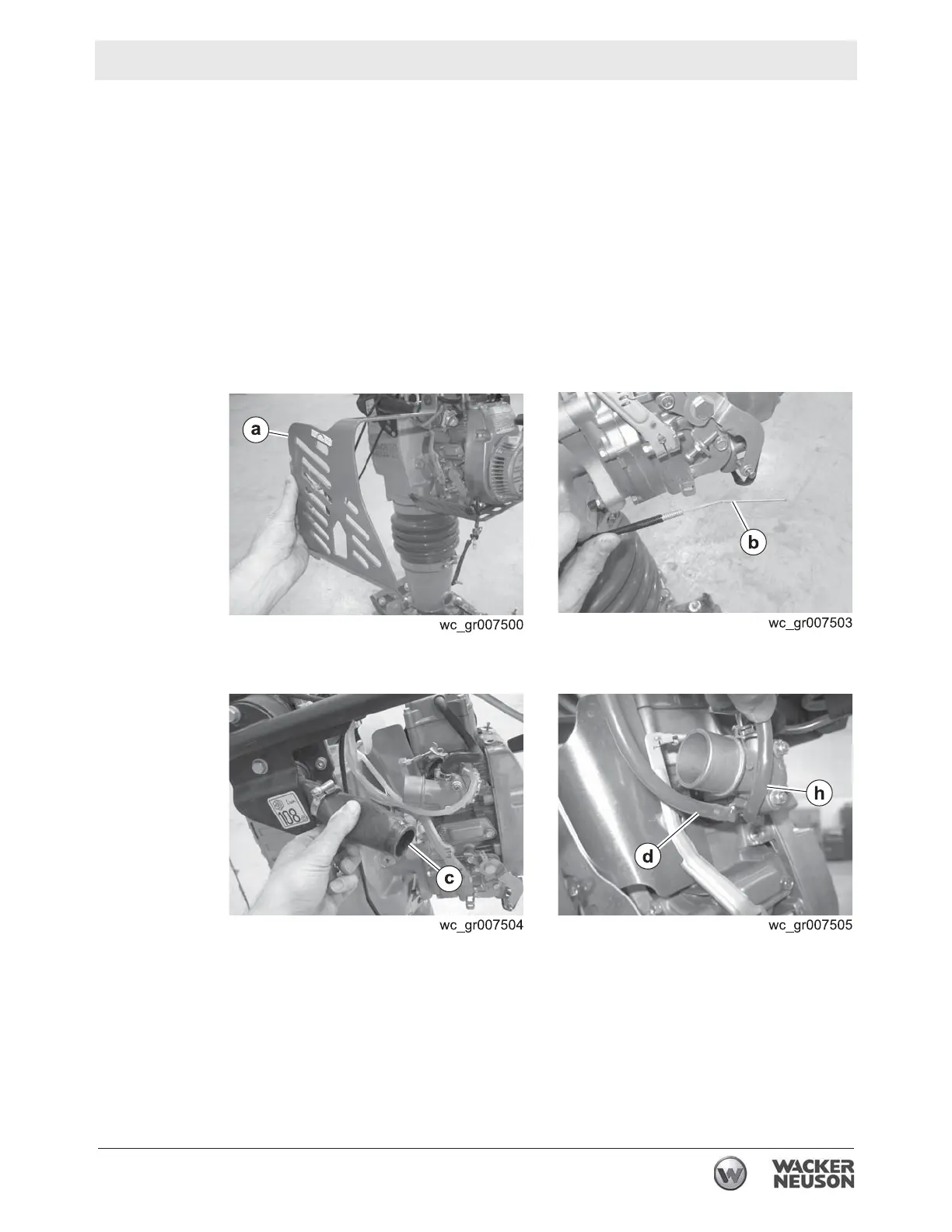

4.23.1 Disconnect the spark plug.
4.23.2 Remove the side guard
(a).
4.23.3 Disconnect the throttle cable
(b).
4.23.4 Disconnect the air hose
(c).
4.23.5 Disconnect the fuel hose
(d) and the compensation hose (h).
4.23.6 Disconnect the hose
(e).

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
