Wacker Neuson BS 60-4 Repair Manual

Engine and Upper Machine Components Repair
32 wc_tx001546gb.fm

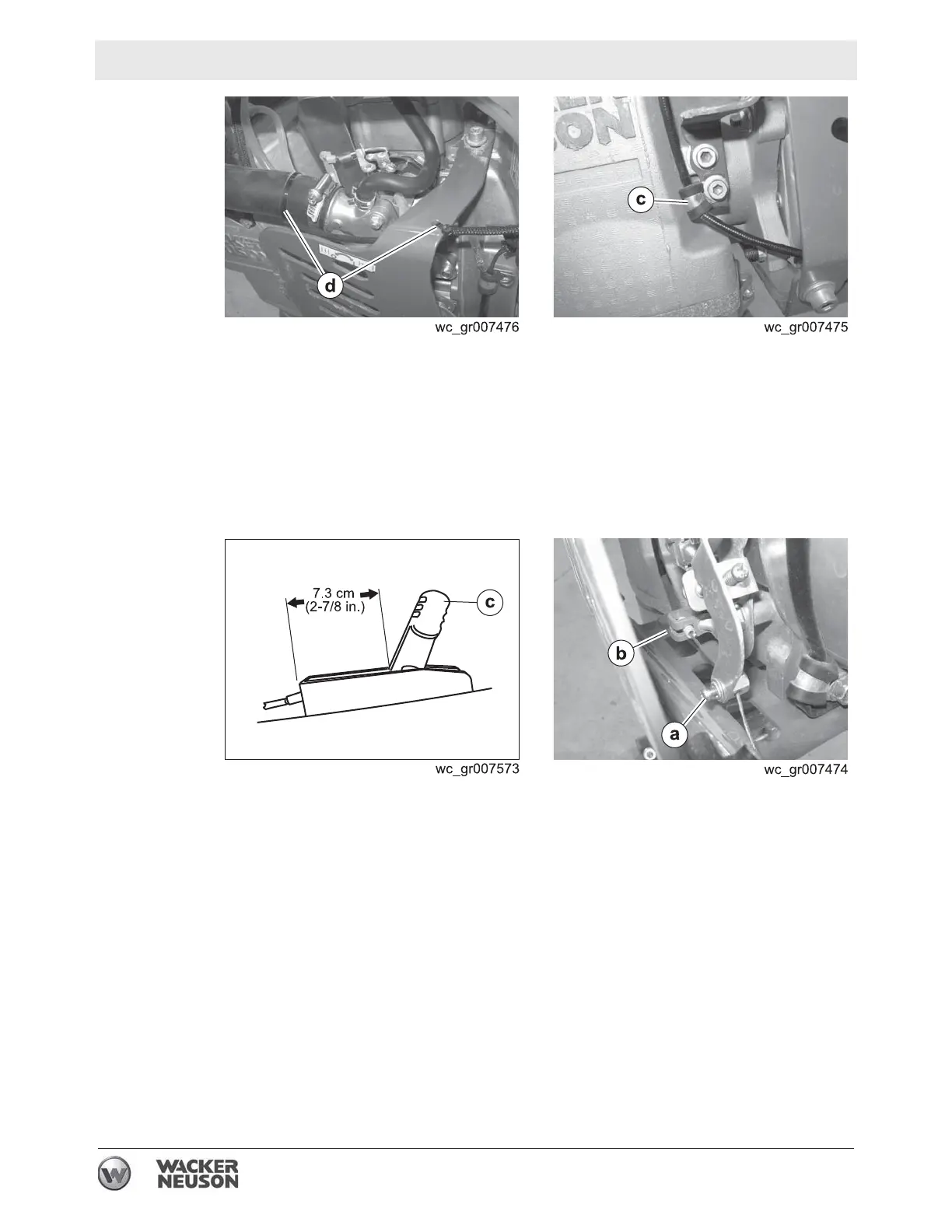

4.3.4 Install the clamp (c).
4.3.5 Connect the throttle cable to the carburetor. To do so:
e. Position the throttle control (c) 7.3 cm (2-7/8 in.) from the edge of
the control bracket.
f. Thread the throttle cable through the clamp
(b) and into the swivel
(a).
g. Pull the throttle cable taught and tighten the swivel screw.
h. Crimp the clamp
(b).
4.3.6 Reinstall the silencing cover.
Result
The replacement procedure is now complete.

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
