Wacker Neuson BS 60-4 Repair Manual

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 67

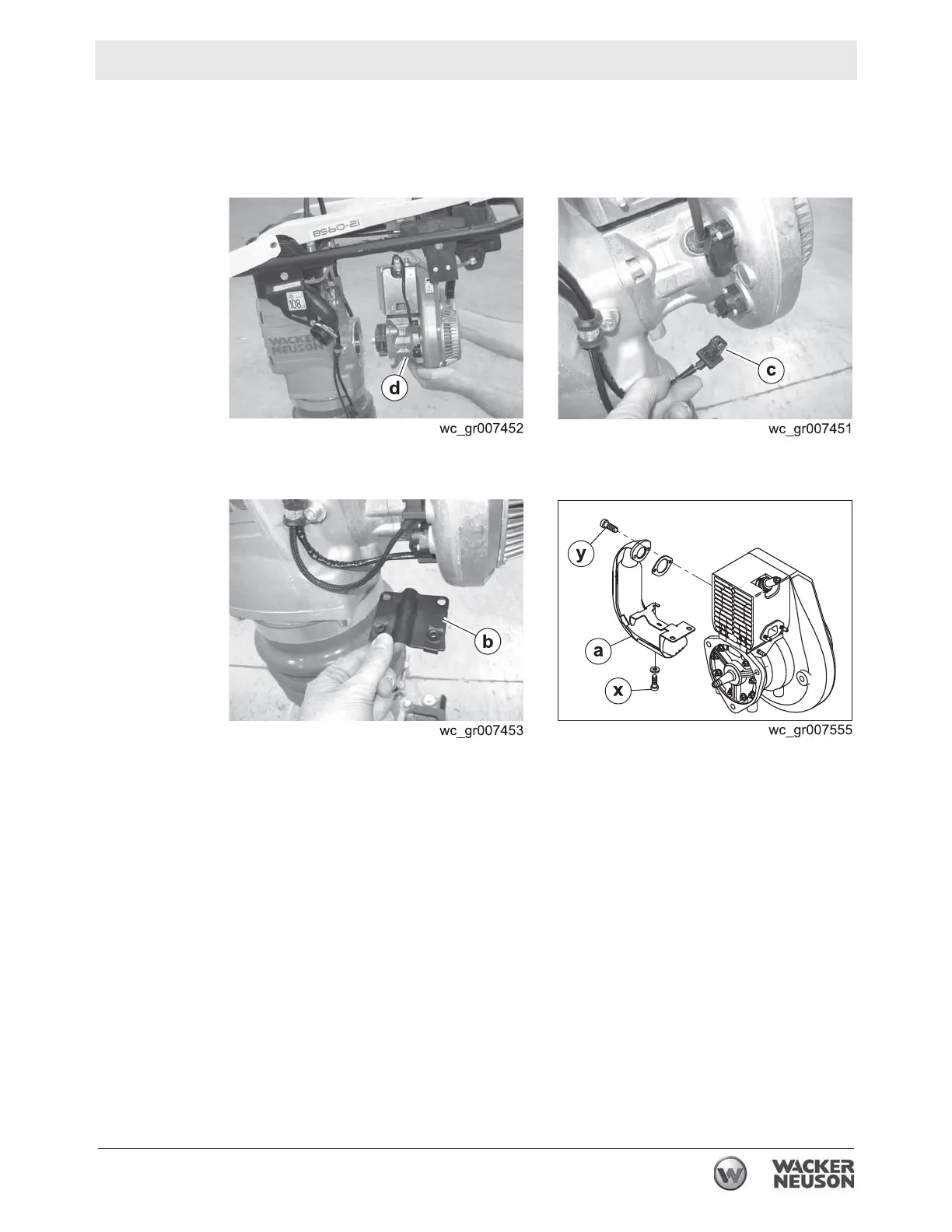

Installation
Perform the procedure below to install the engine.
4.20.1 Install the engine
(d) to the machine with three screws. Torque the
screws to 28 Nm (20 ft.lbs.).
4.20.2 Reconnect the wiring
(c) to the switches.
4.20.3 Install the bracket (b).
4.20.4 Install the muffler
(a). Torque screws (x) to 18 Nm (13 ft.lbs.). Torque
screw (y) to 23 Nm (16 ft.lbs.).
4.20.5 Install the carburetor.
Result
The engine has now been installed.

Wacker Neuson BS 60-4 Specifications

General

Engine Manufacturer	Honda
Displacement	163 cm³
Operating Weight	66 kg
Percussion Rate	700 blows/min
Engine	Honda GX 160
Stroke	60 mm
Engine Type	4-stroke
Fuel Tank Capacity	3.0 liters
