Additional control circuit – AUX I
Operating the additional control circuit
Swiveling the boom

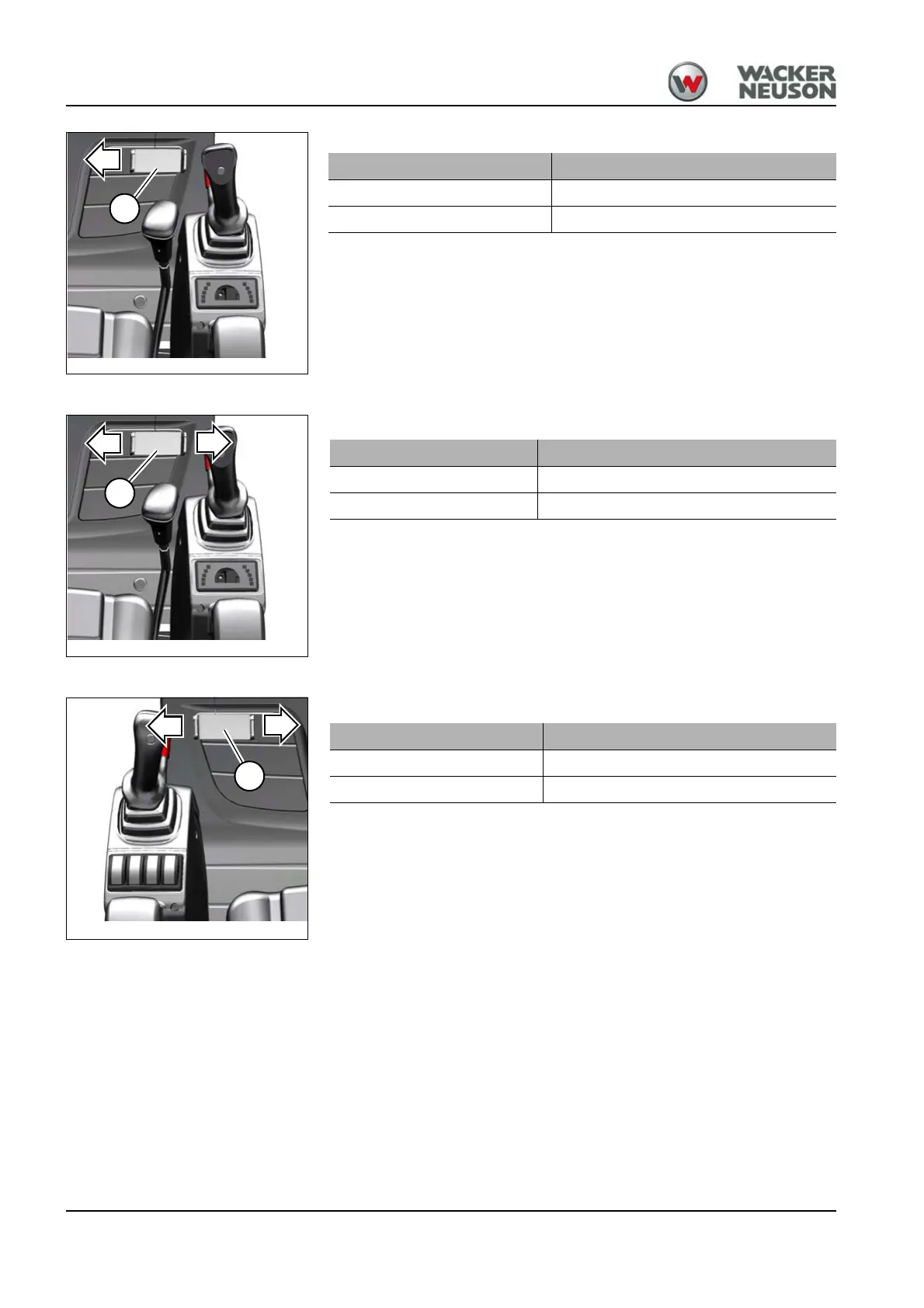

Fig. 138
A
Hammer operation Position
Switch on Actuate the pedal A to the left
Switch off Release the pedal A
Fig. 139
A
Oil flow Position
To the line on the left Actuate pedal A to the left
To the line on the right Actuate pedal A to the right
Fig. 140
A
B
Boom Position
Swivel to the left Actuate pedal B to the left
Swivel to the right Actuate pedal B to the right
