5 Operation
Mount

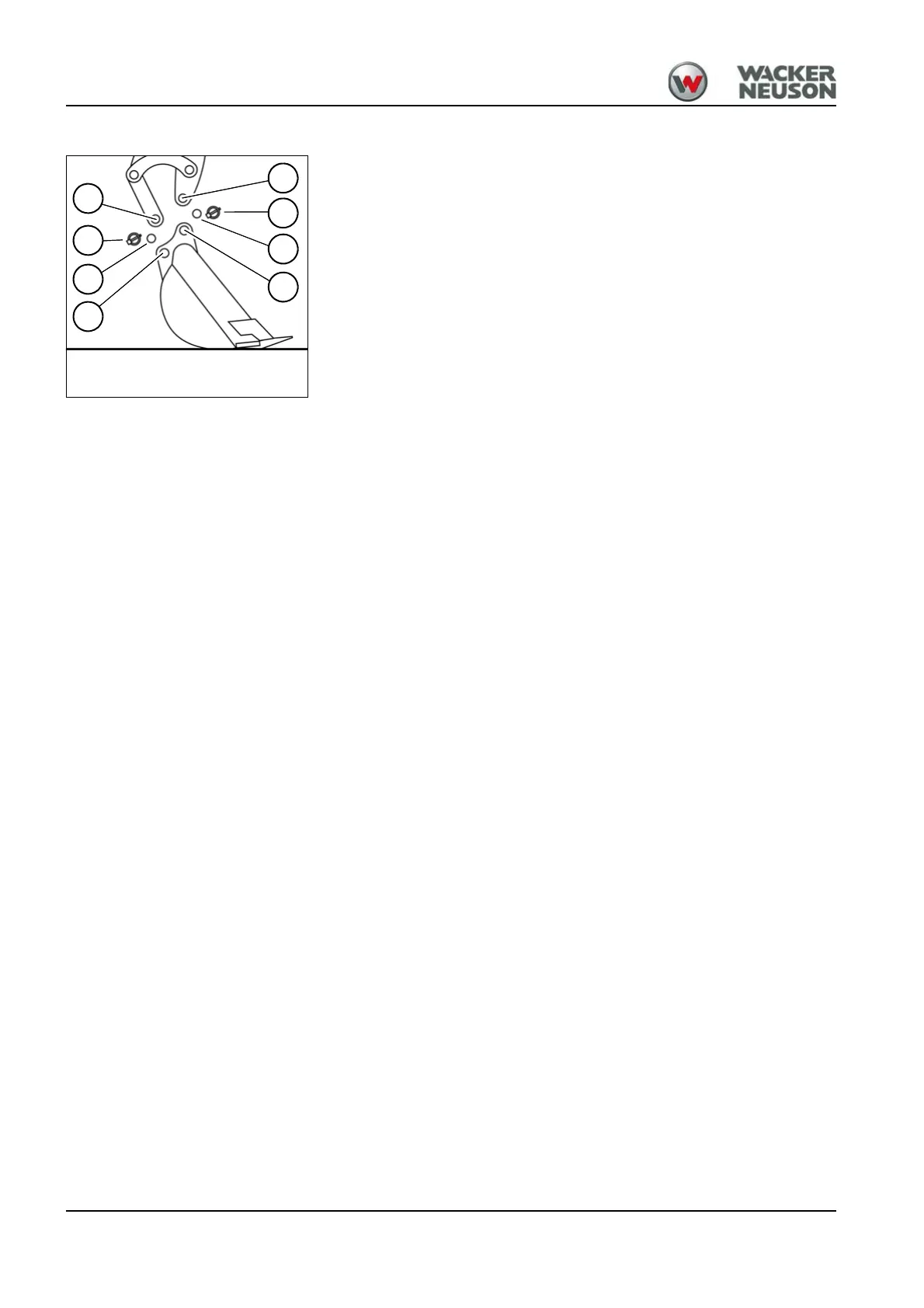

1. Install a bucket only if it is positioned on level ground with the flat side
facing downward.
2. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
3. Apply grease to the pins and articulations before inserting them.
4. Start the engine.
5. Straighten the stick so that bores D and E are flush.
6. Stop the engine. Raise the control lever base.
7. Insert pin F.
8. Actuate the stick cylinder until bores H and I are flush.
9. Stop the engine. Raise the control lever base.
10.Insert pin J.
11.Install linch pins K.
