7 Maintenance

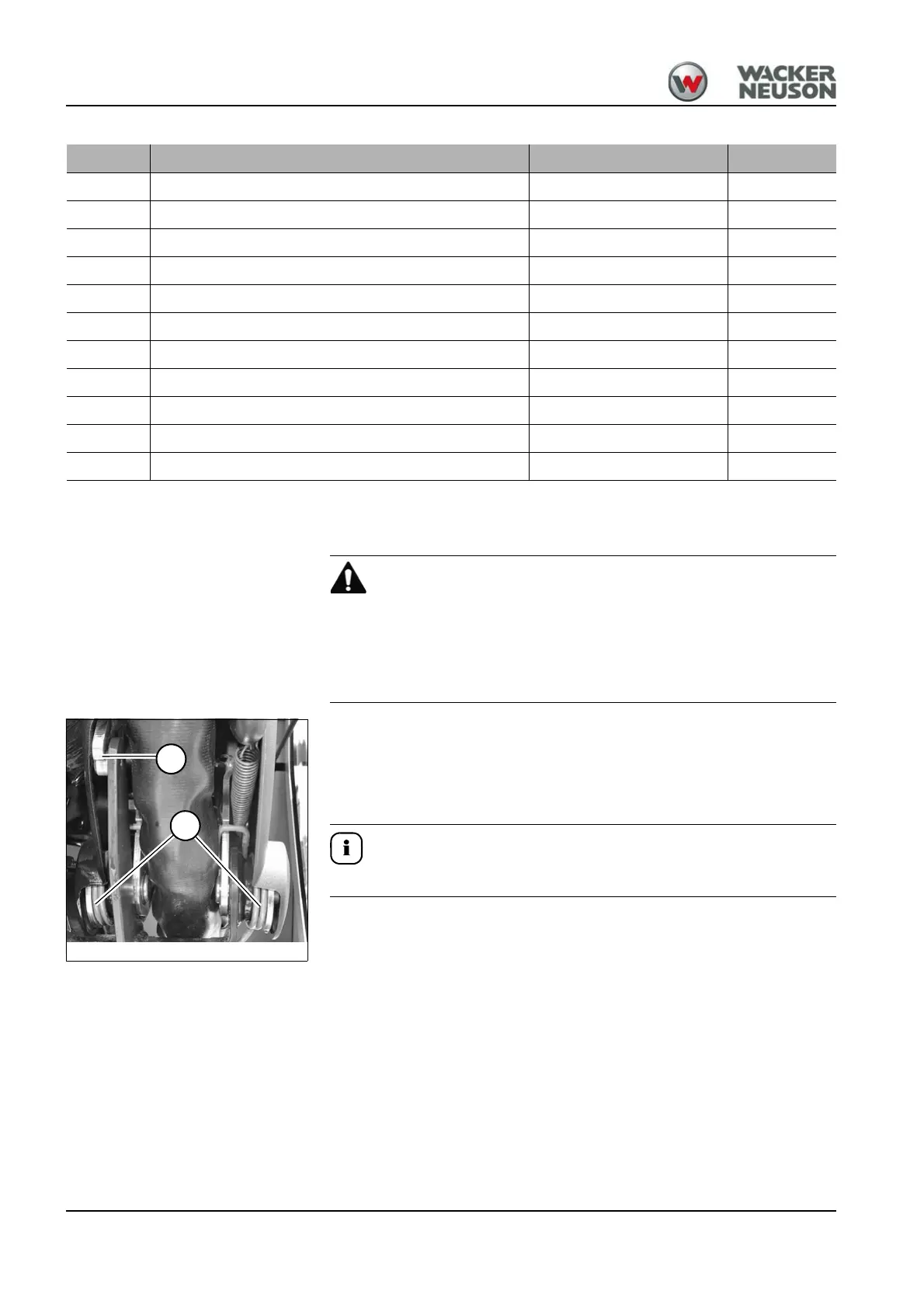

Control lever base
Crushing hazard in the area of the moving parts of the control lever
base.
There is a risk of injury in the area of the moving parts.
► Stay clear (extremities, clothing) of the moving parts.
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Raise the control lever base.
3. Spray the guide lever A and springs B with semi-fluid grease.
4. Raise and lower the control lever base several times.
Keep the lubrication points clean and remove any escaping grease.
Position Lubrication point Interval Quantity
1. Bucket cylinder Daily 2
2.
Stick cylinder Daily 2
3.
Boom cylinder Daily 2
4.
Boom Daily 2
5.
Swiveling cylinder Daily 2
6.
Stabilizer blade Daily 4
7.
Shovel arm Daily 3
8.
Joint rod Daily 1
9.
Swiveling console Daily 2
10.
Ball bearing race Every week 1
11.
Hydraulic quickhitch (option) Daily 4
