Maintenance 7
Refueling with the fuel-filling pump
Injury hazard in case of incorrect handling of fuel-filling pump!
Can cause injury.
► Keep body parts away from tank hoses.

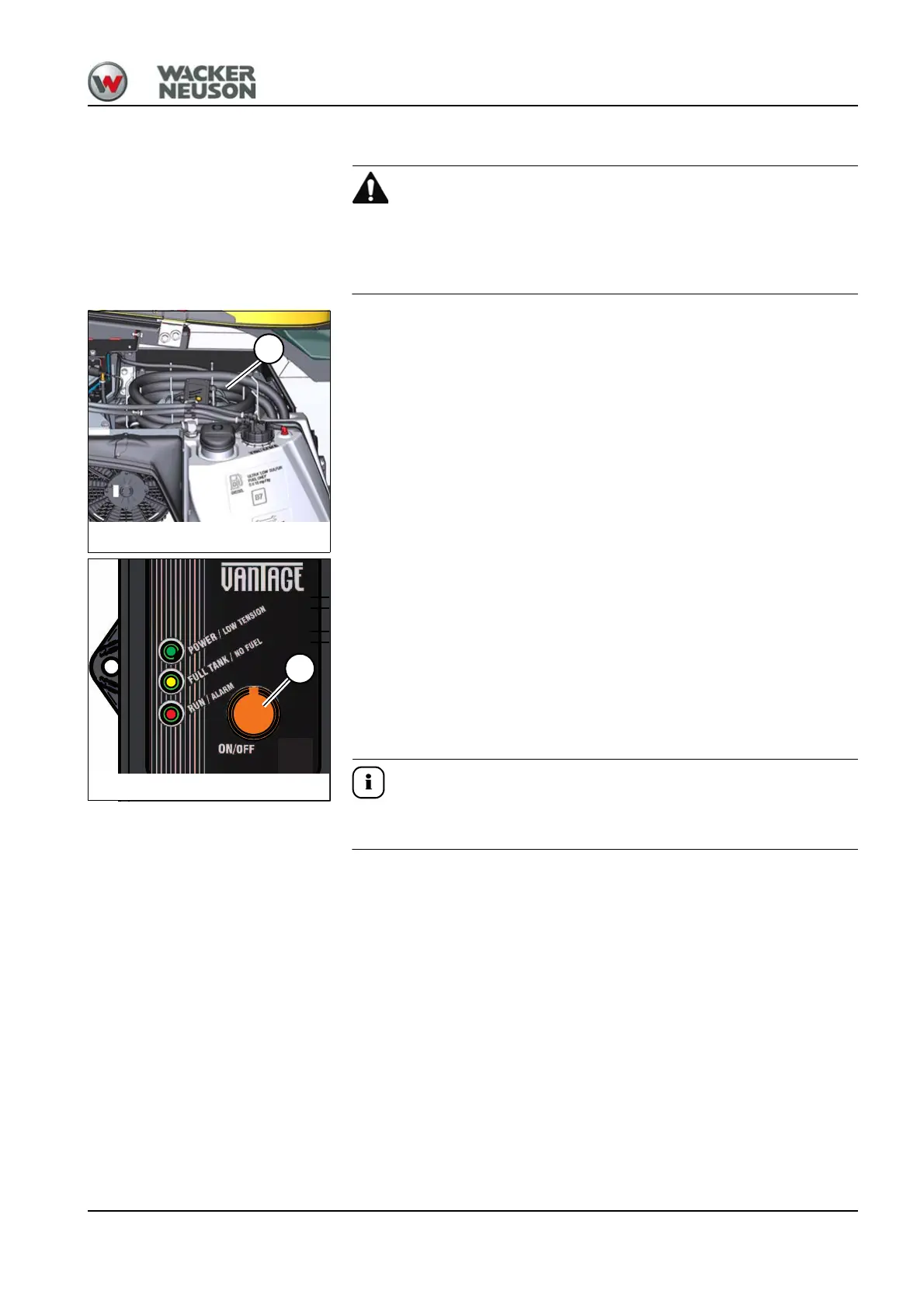

Refueling procedure
1. Stop the vehicle on firm, level, and horizontal ground.
2. Position the boom straight ahead at the center of the vehicle.
3. Lower the boom.
4. Stop the engine.
5. Raise the control lever base.
6. Open tank lock C carefully to release the pressure in the fuel tank.
7. Turn the starting key to position 1.
8. Put hose A in the fuel tank.
9. Switch on the fuel-filling pump with push button B.
➥ The green LED illuminates. The red LED illuminates, too, as soon
as fuel is pumped by the pump.
➥ Refueling stops automatically when the tank is full.
➥ The green and yellow LEDs illuminate once refueling is over.
10.Switch off the fuel-filling pump with push button B.
11.Stow away hose A.
12.Close the tank lock C.
After one minute without actuation the pump automatically enters standby
mode.
