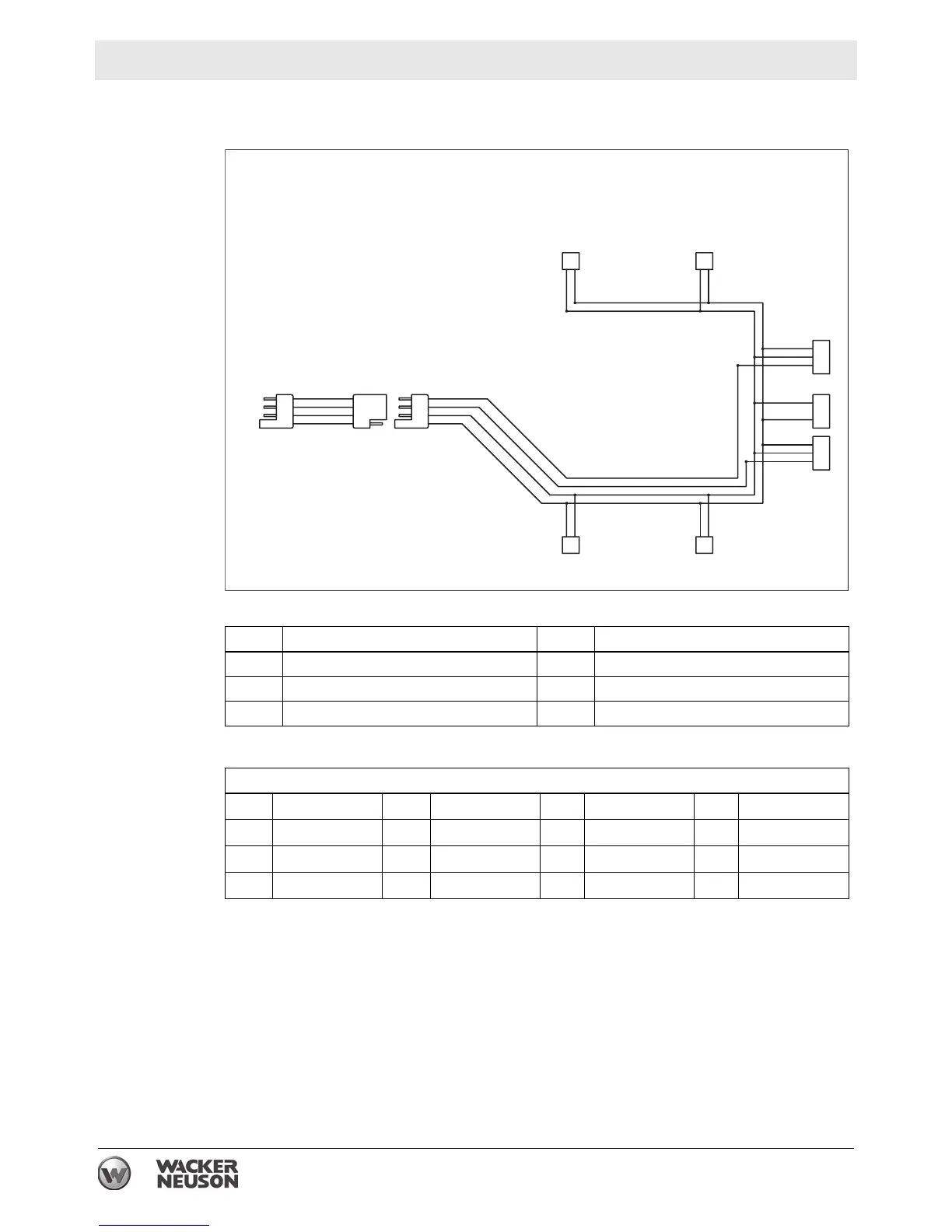

Schematics LTN
11.10 Trailer Wiring
Ref. Description Ref. Description
a Right stop, turn and tail light d Side light, red
b Left stop, turn and tail light e License plate light
c Side light, amber — —
Wire Colors
BK Black RD Red YL Yellow OR Orange
GN Green TN Tan BR Brown PU Purple
BU Blue VIO Violet CL Clear SH Shield
PK Pink WH White GY Gray LB Light blue
