Maintenance LTN 6K/8K-V
6.6 Changing the Engine Oil
When
Change the engine oil every 200 hours.
Requirements
Warm engine
Plastic sheet and container of suitable size to collect drained oil
Replacement oil (see Technical Data for oil quantity and type)
Note: In the interests of environmental protection, place a plastic sheet and a
container under the machine to collect any liquid which drains off. Dispose of this
liquid in accordance with environmental protection legislation.
Procedure
Perform the procedure below to change the engine oil.
1. Locate the oil drain hose (a) at the base of the engine and feed it through the
opening at the rear of the light tower cabinet.
2. Remove the cap from the oil drain hose.
3. Allow the oil to drain into a suitable container.
4. Replace the cap on the oil drain hose. Return the hose to its stored location.
5. Fill the engine crankcase through one of the oil filler openings (c) to the upper
mark on the dipstick (b). Engine oil level should fall within the “A” range on the
graphic. See Technical Data for oil quantity and type.
6. Reinstall the oil filler plug.
Result
The procedure is now complete.

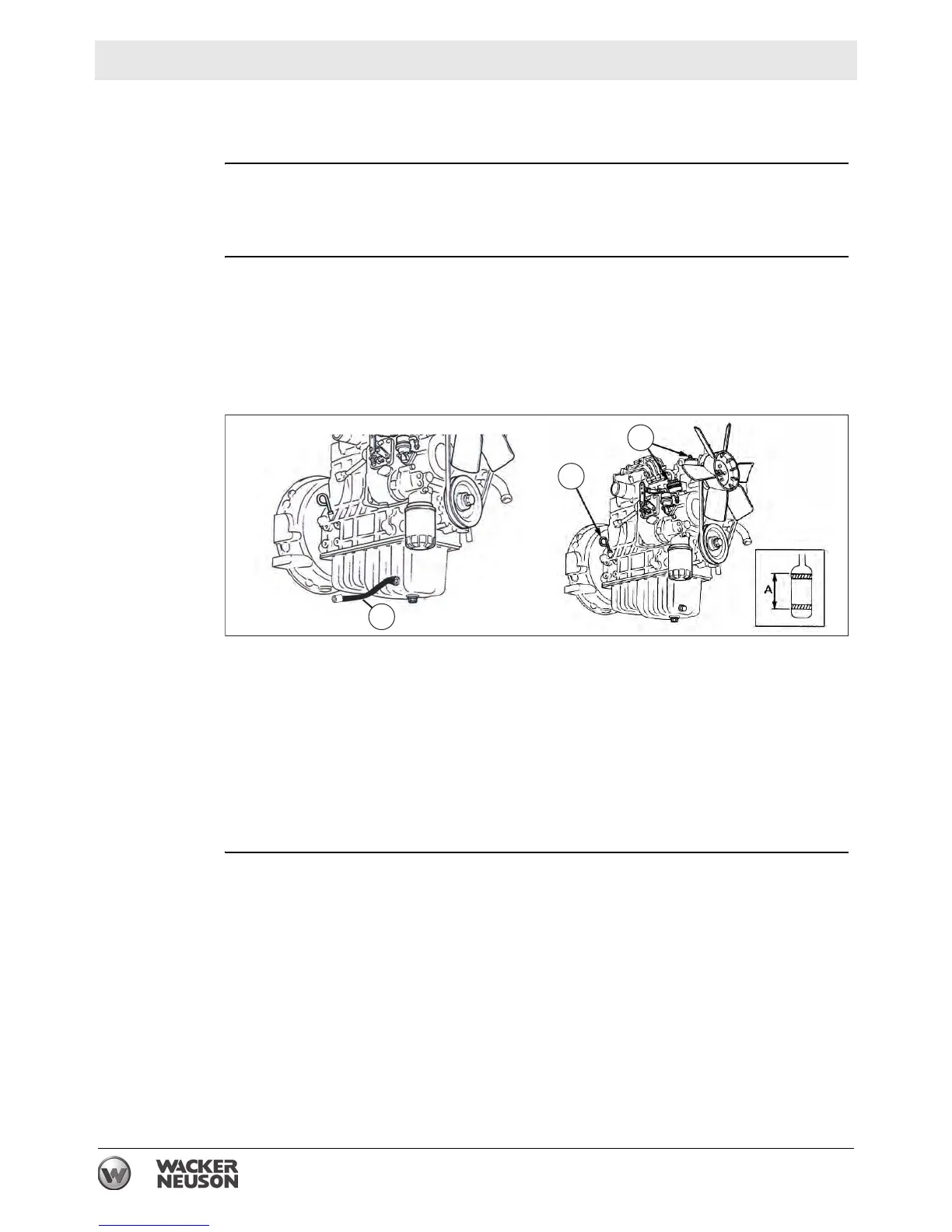

wc_gr007339
