LTN Operation
4.8 Control Panels
wc_gr009973
6K 8K
ea
bb c d c dc d
1
l fl f gk k gh
ji
2

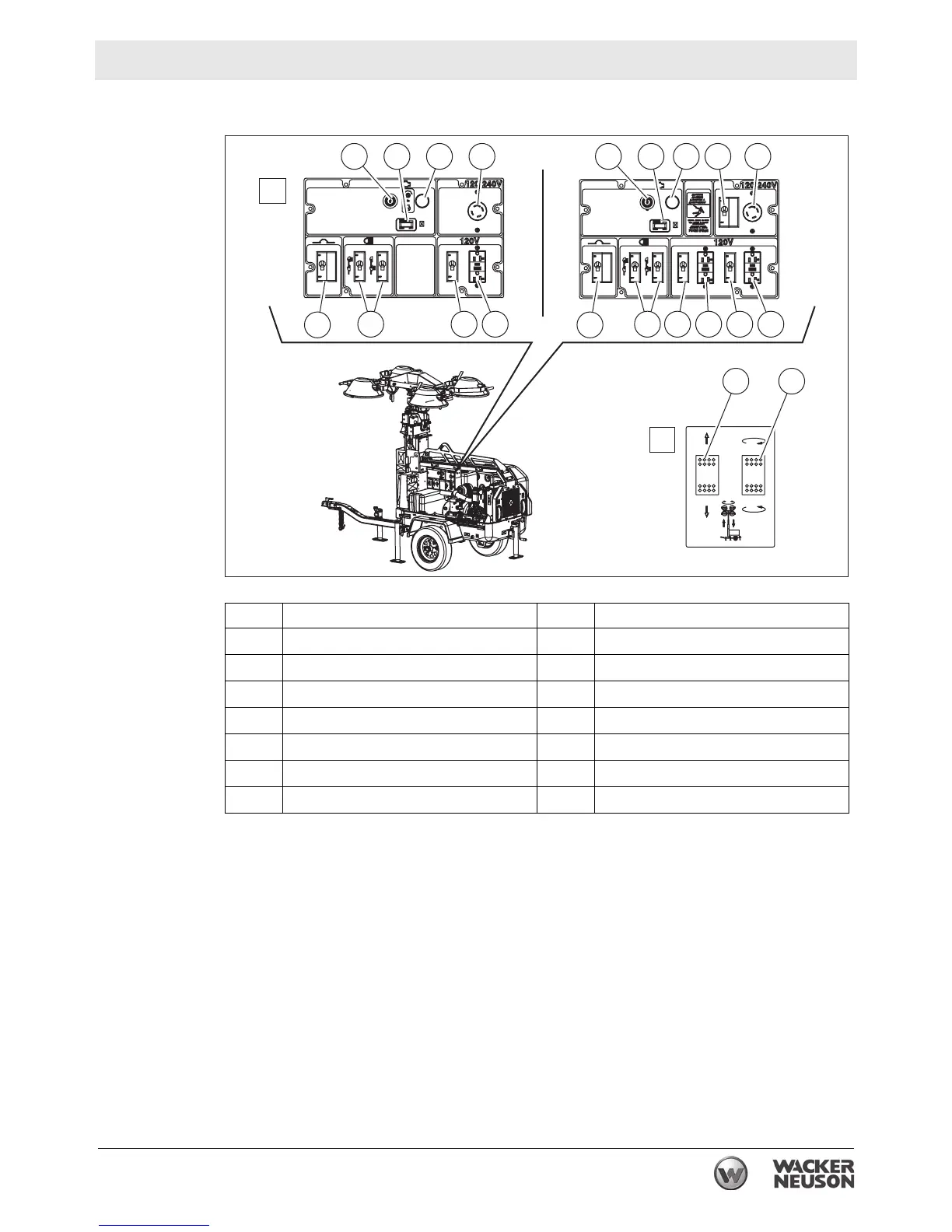

Ref Description Ref Description
1
Floodlight control panel
f
Hour meter
2
Tower control panel
g
30A receptacle
a
25A main circuit breaker
h
30A receptacle breaker
b
30A lights circuit breaker
i
Tower actuation switch
c
20A GFI circuit breaker
j
Tower rotation switch
d
20A GFI receptacle
k
Glow plug indicator
e
33A main circuit breaker
l
Key switch
