Operation LTN

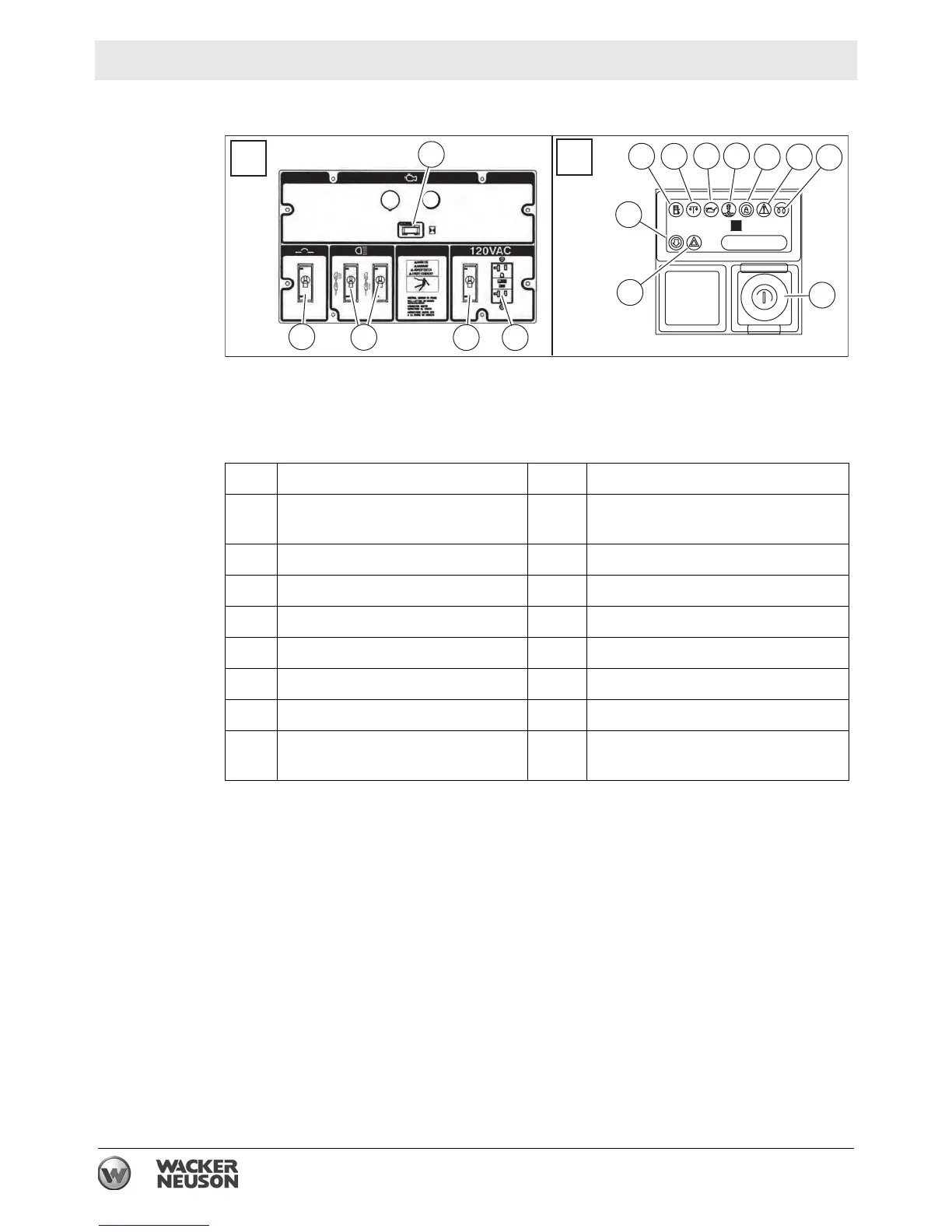

4.9 Control Panels - LTN 6L-VS
1: Floodlight Control Panel
2: Engine Control Panel
Ref. Description Ref. Description
a 50 Amp circuit breaker k High coolant temperature shut-
down indicator
b 30 Amp lights circuit breaker l Alternator indicator
c 20 Amp circuit breaker m Auxiliary lights (not used)
d 20 Amp GFI receptacle n Glow plug indicator
e Hour meter o Air filter restriction indicator
f Low fuel indicator (not used) p Auxiliary lights (not used)
g Safety shutdown indicator q Key access door
h Low oil pressure shutdown indi-
cator
r GFCI circuit breaker
wc_gr005141
KOHLER
e
b
c d
a
o
p
g
h k
l
m
n
q
f
12
