LTN Lifting and Transporting
3 Lifting and Transporting
3.1 Lifting the Machine
Requirements
Properly rated lifting equipment (crane or hoist). See Chapter Technical Data.
Machine stopped. See topic Stopping the Machine.
All doors and access covers closed and secured.
Tower is completely lowered.
Lights have been rotated so that they are level with the ground.
Outriggers have been returned to their travel position.
Outrigger bars and jacks are locked in place.
Tongue jack (c) is completely cranked in and rotated 90°.
Procedure
Follow the procedure below to lift the machine.
1. Attach the lifting equipment to one of the lifting eyes (b) on the machine using
hooks, shackles, and chains or insert forks into the fork pockets (a).
2. Lift the machine a small distance.
3. Check for stability. If necessary, lower the machine, reposition the lifting device,
and lift the machine a small distance again.
4. Continue lifting the machine as necessary.
WARNING
Crushing hazard. You may be crushed if the lifting devices fail.
f Never stand under, or get onto, the machine while it is being lifted or moved.
f Use only the designated lifting points to lift the machine.

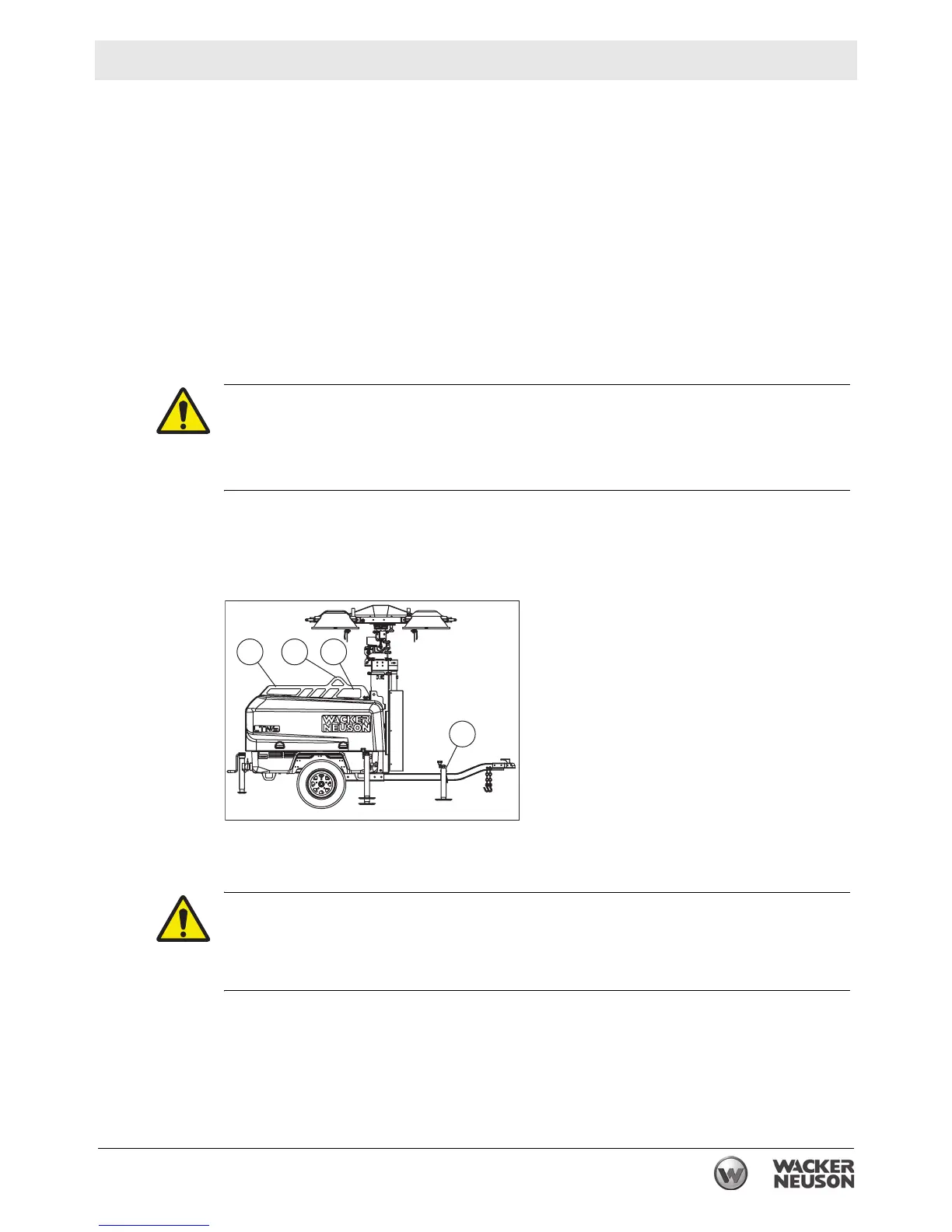

a ab
c
wc_gr009966
WARNING
Crushing hazard. An unstable machine may cause the lifting devices to fail. You
may be crushed if the lifting devices fail.
f Check for stability before continuing.
