LTV Operation

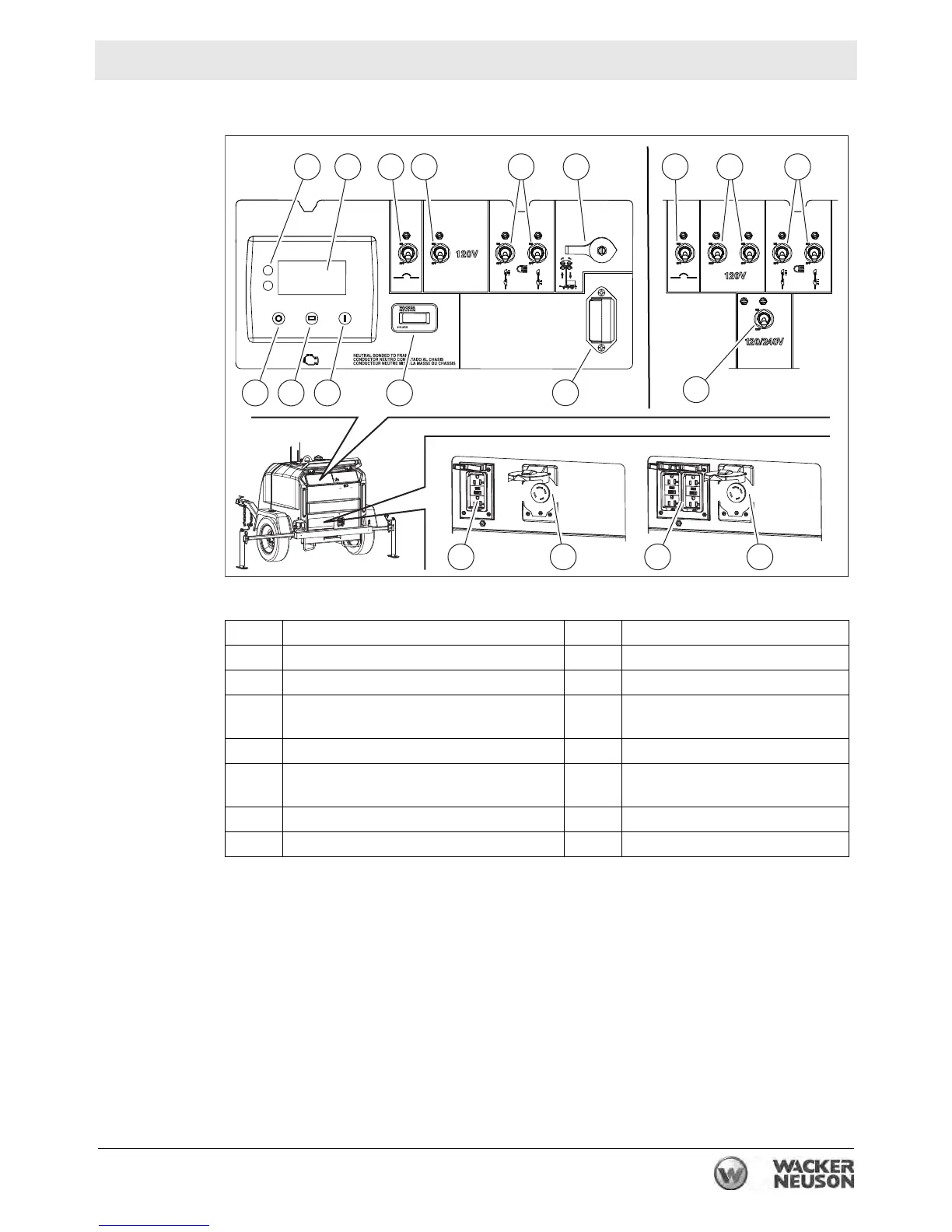

5.4 Control Panel and Receptacles—DeepSea
Ref. Description Ref. Description
a Menu navigation buttons (up/down) h Auto start button
b Controller display j Start button
c 25A main circuit breaker (6K)
33A main circuit breaker (8K)
k Hour meter
d 20A GFI circuit breaker m Control panel light
e 30A lights circuit breaker n 30A receptacle breaker
(standard for 8K)
f Tower winch rotary switch (optional) o 20A GFI receptacle
g Stop/reset button p 30A receptacle
wc_gr013748
c
b
a
d
f
e c
d
e
g
h
j
6K 8K
6K
k
m
n
o
p
o
p
8K
