LTV Machine Setup
4.6 Aiming the Lights—Vertical Mast Light Towers
Overview ■ Each individual light fixture can be independently aimed up, down, left, or right.
There are four total light fixtures on each machine.
■ This procedure is not for rotating the lights as a single unit while the tower is
raised. This procedure requires the tower is lowered and the machine is
stopped. To rotate the lights, see topic Rotating the Lights.
Requirements Before adjusting the lights, make sure that the following conditions have been met.
■ Machine is stopped
■ Tower is completely lowered
■ Lights are cool to the touch
Aiming the
light fixtures
Aiming Up or Down
Perform the procedure below to aim an individual light fixture up or down.
1. Loosen the T-handle (a) and aim the light up or down.
NOTICE: Do not loosen the nut (b). Damage to the light fixture may occur.
2. Tighten the T-handle (a) when the light is aimed properly.
3. Repeat steps 1–3 for each remaining light fixture, if desired.
This procedure continues on the next page.

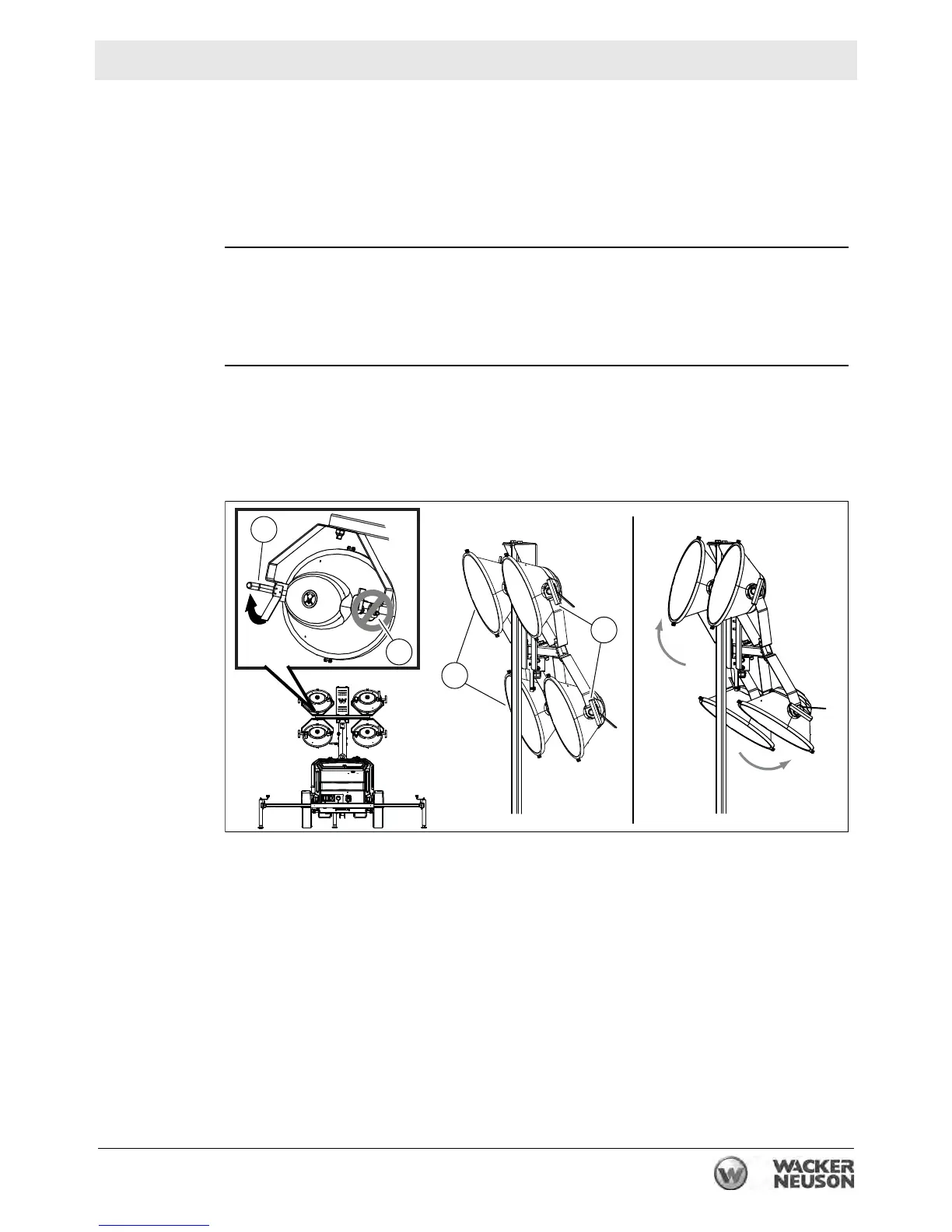

wc_gr013746
a
a
a
b
