4.11 Watering System
See Graphic: wc_gr003474

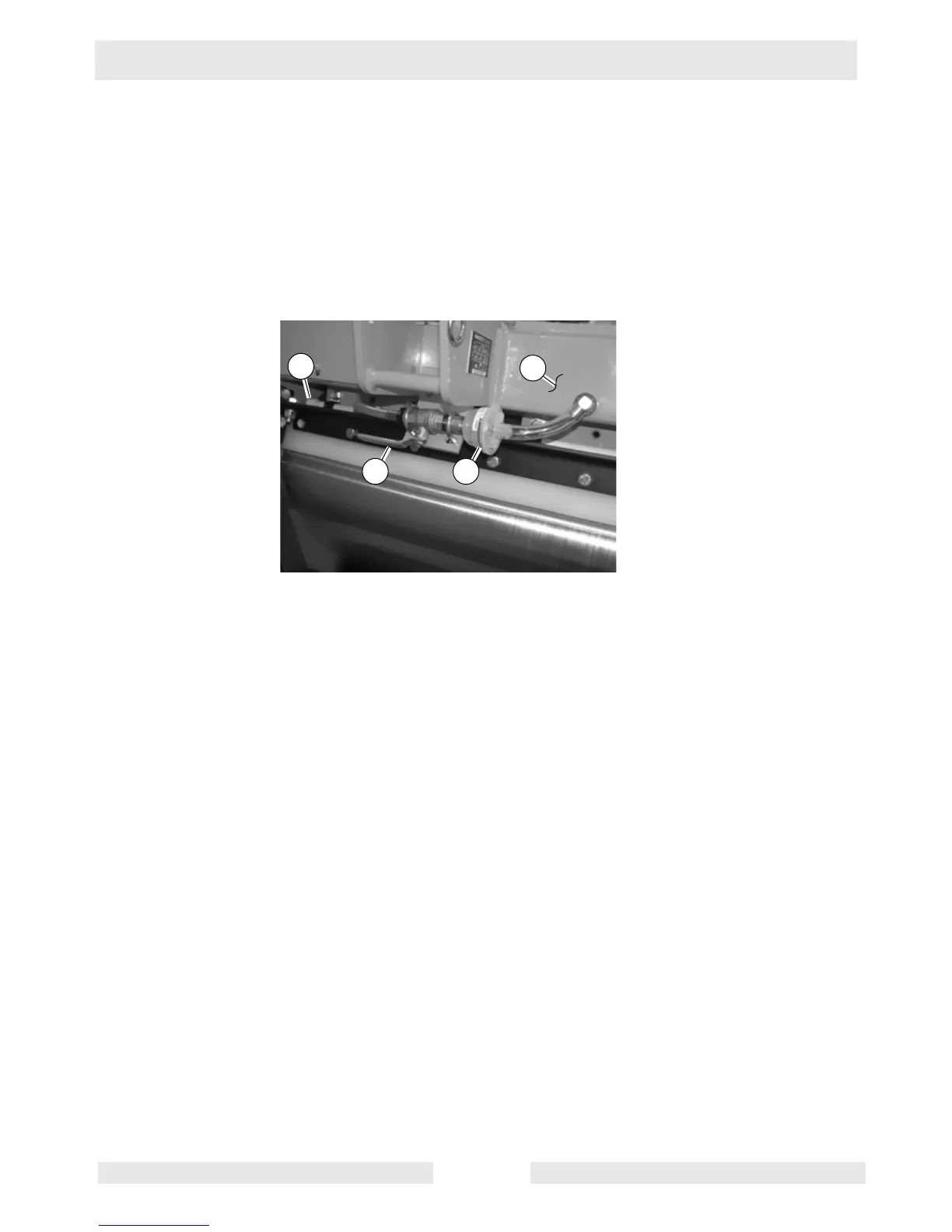

The RS 800 is equipped with a water control valve (a) which allows the
roller to be used wet or dry, and a sprinkler system (b) to distribute the
water evenly across the drum. The water is gravity fed from the water
tank (c) through the filter (d) to the sprinkler when the control valve is
in the open position (shown closed).
wc_gr003474
a
d
b
c
