RS 800 /... Maintenance
wpm_tx001254gb.fm 39

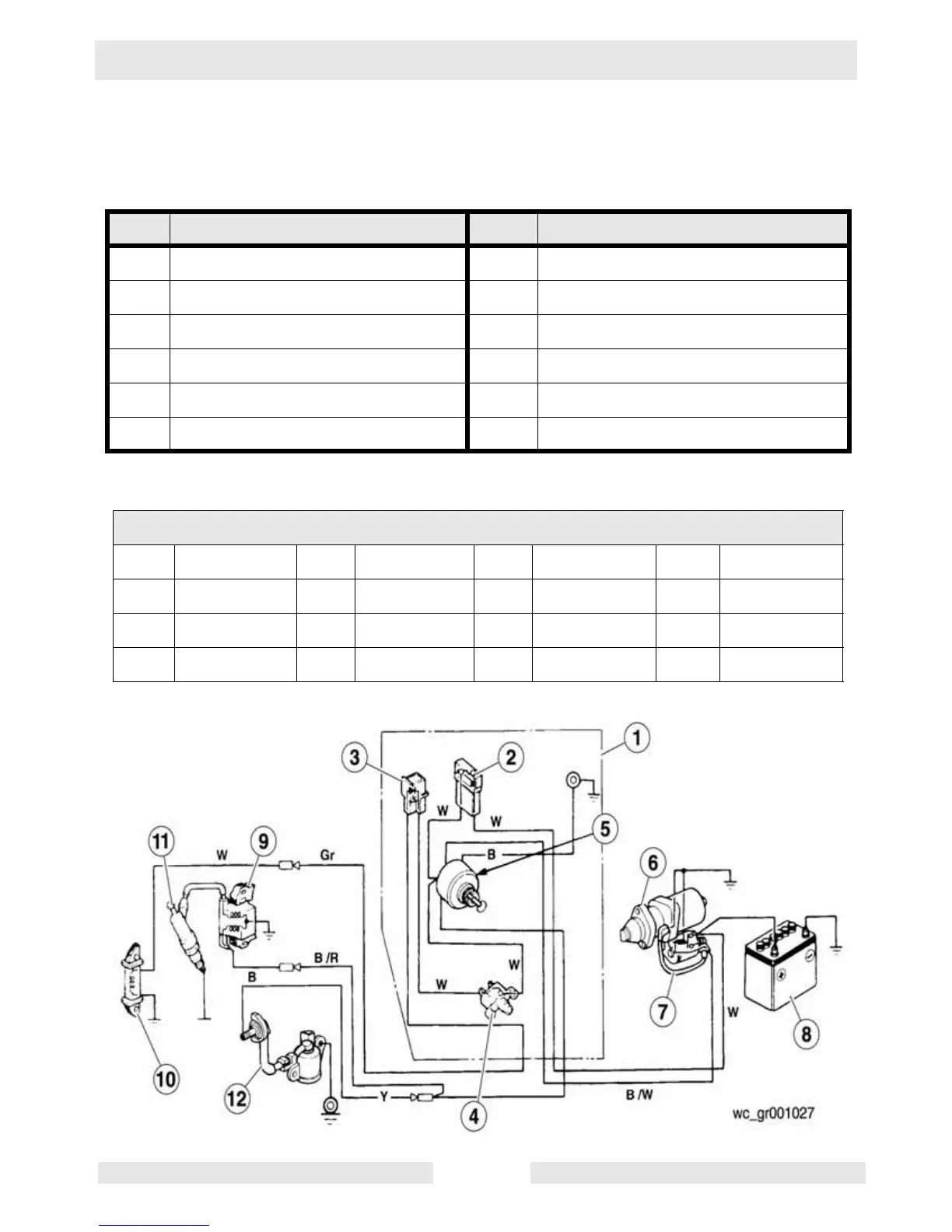

5.15 Wiring Diagram (RSS 800A)
See Graphic: wc_gr001027
Ref. Description Ref. Description
1 Control box 7 Starter solenoid
2 5 Amp fuse 8 Battery
3 Rectifier 9 Ignition
4 Circuit breaker 10 Charging coil
5 Starter switch 11 Spark plug
6 Starter motor 12 Oil level switch
Wire Colors
B Black R Red Y Yellow Or Orange
G Green T Tan Br Brown Pr Purple
L Blue V Violet Cl Clear Sh Shield
P Pink W White Gr Gray LL Light blue
