WM 80 Repair Carburetor Overhaul
wc_tx000522gb.fm 81
Reassembly

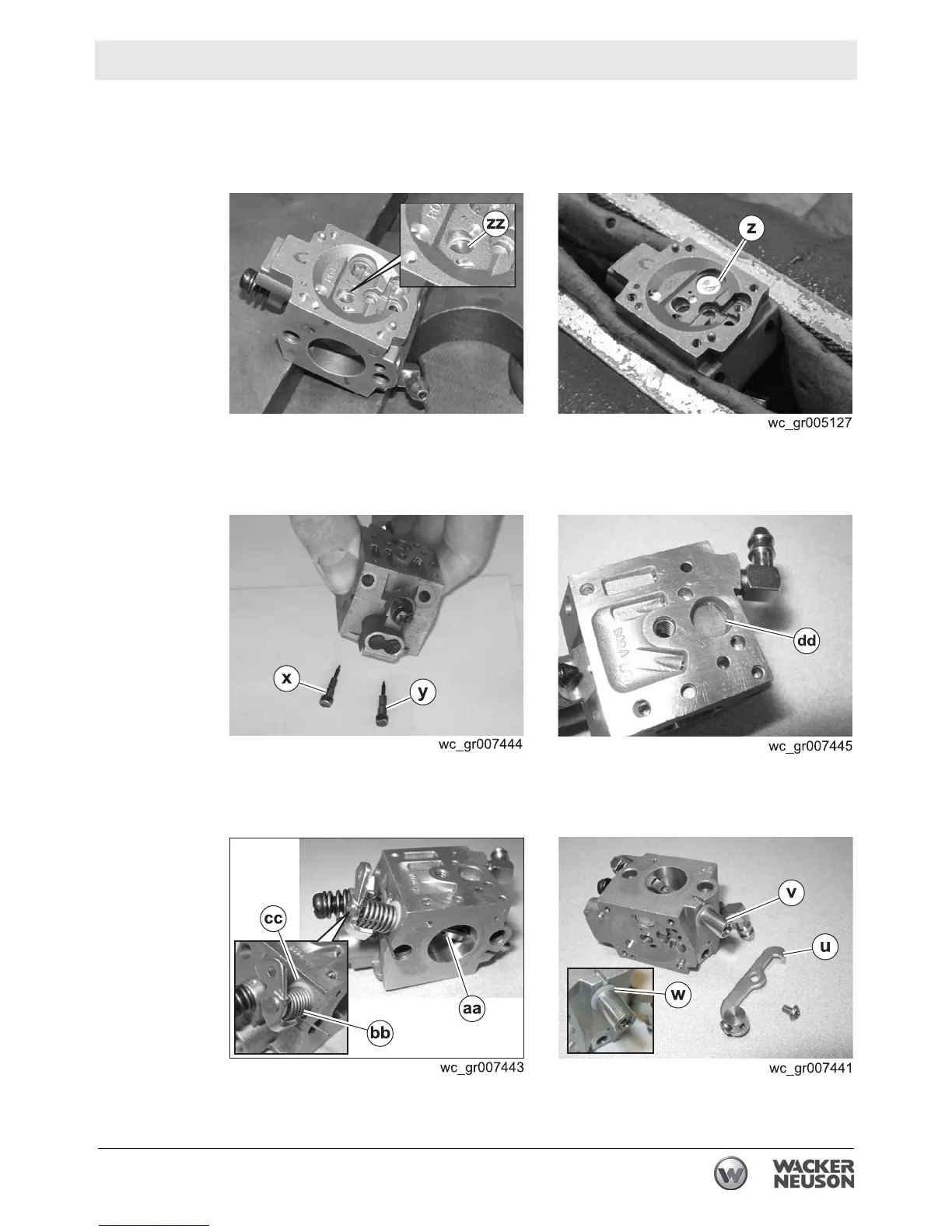

7.3.1 Align the hole in the main nozzle (zz) with the passage of the high-
speed needle. Press the main nozzle into the carburetor body until the
top of the main nozzle is flush with the carburetor body.
7.3.2 Install the Welch plug (z). Tap it in with a flat punch.
7.3.3 Install the high- and low-speed needles (x and y). Note: The high-speed
needle is shorter than the low-speed needle.
7.3.4 Install the screen(s) (dd).
7.3.5 Install the spring (bb) to the throttle shaft (aa). Install the washer (cc),
then slide the throttle shaft into the carburetor body.
7.3.6 Install the washer (w), spacer (v), and the throttle lever (u).
This procedure continues on the next page.
