7.6 Removing Ignition Coil, Flywheel, and Spark Plug

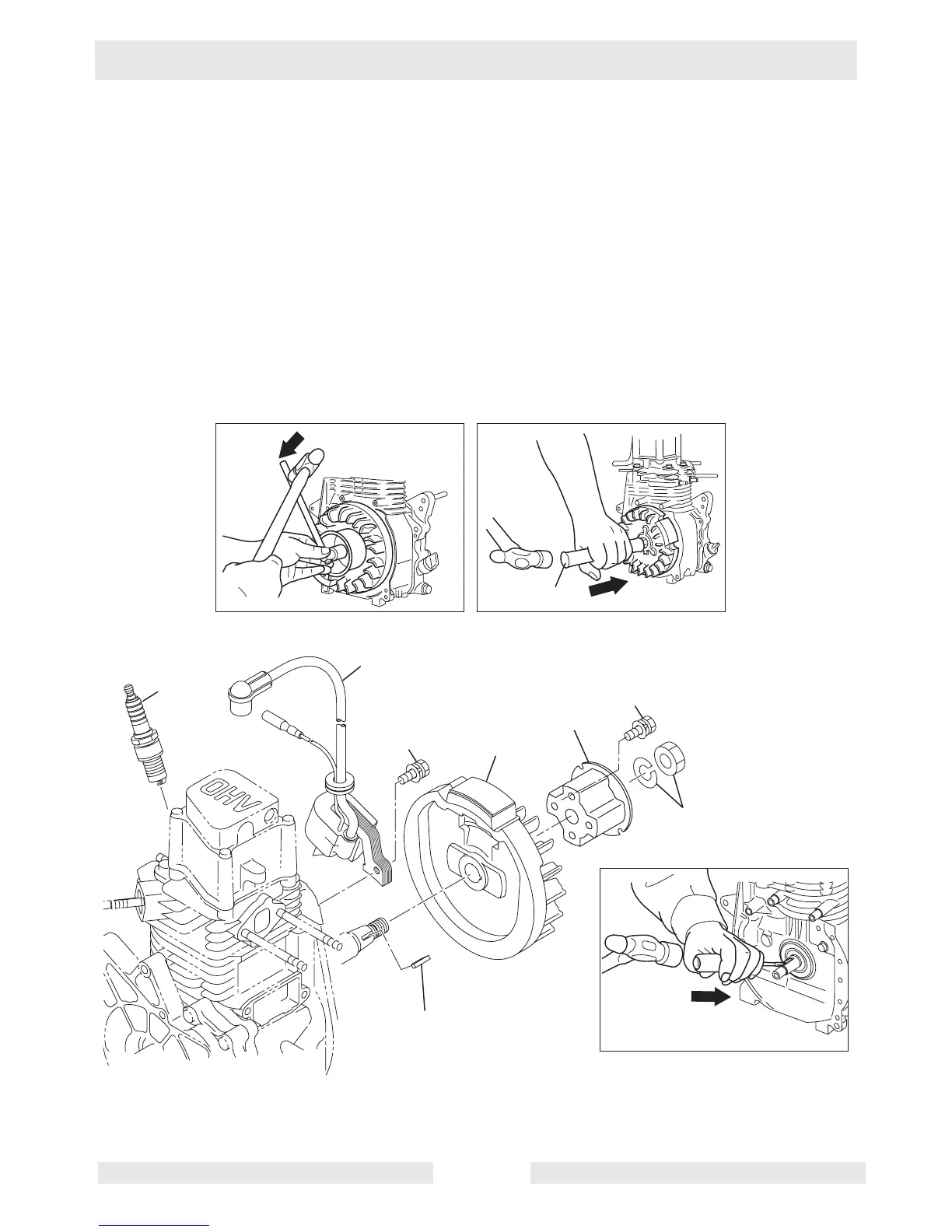

See Graphic: wc_gr001891
7.6.1 Remove the spark plug (a).
7.6.2 Remove the two M6 x 25 bolts (b) and remove the ignition coil (c).
7.6.3 Remove the M12 nut and washer (d), four M6 bolts (e), and remove
the starter pulley (f) and flywheel (g). If necessary, break the nut loose
by tapping the handle of the wrench with a hammer. To remove the
flywheel, hold an aluminum bar (h) against the flywheel side of the
crankshaft and tap the bar with a hammer.
7.6.4 Remove the Woodruff key (i) from the crankshaft.
wc_gr001891
a
c
b
d
e
g
h
f
i
