WM 90 Repair Reassembly Procedures
wc_tx000389gb.fm 67

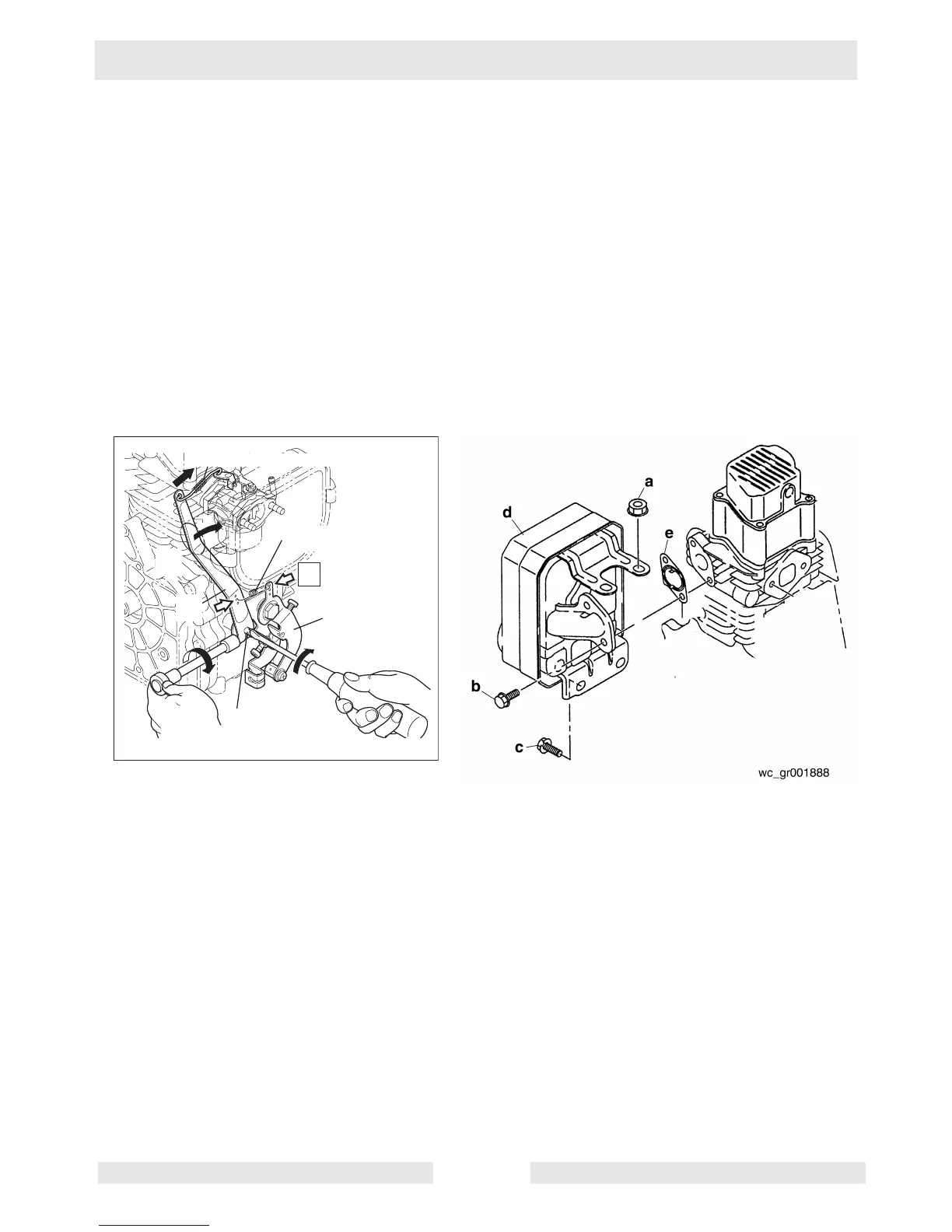

8.16 Adjusting Governor System
See Graphic: wc_gr001914
8.16.1 Turn the speed control lever (a) all the way toward the high speed
position and secure it by tightening the self-locking screw.
8.16.2 Check that the governor lever (b) is pulled by the governor spring (c)
and carburetor throttle valve is fully open.
8.16.3 Turn the governor shaft (d) clockwise all the way using a screw driver,
and tighten the lock bolt to secure the lever on the shaft.
8.16.4 Loosen the lock nut to allow the speed control lever to move freely.
Reference: governor rod spring (e); normal hooking position of
governor spring (f).
8.17 Installing Muffler
See Graphic: wc_gr001888
8.17.1 Using two flange nuts (a), two flange bolts (b), and bolts and washers
(c), install muffler (d) and gasket (e).
wc_gr001914
a
b
e
f
c
d
