Disassembly Procedures WM 90 Repair
wc_tx000389gb.fm 48
7.7 Removing Rocker Cover and Cylinder Head

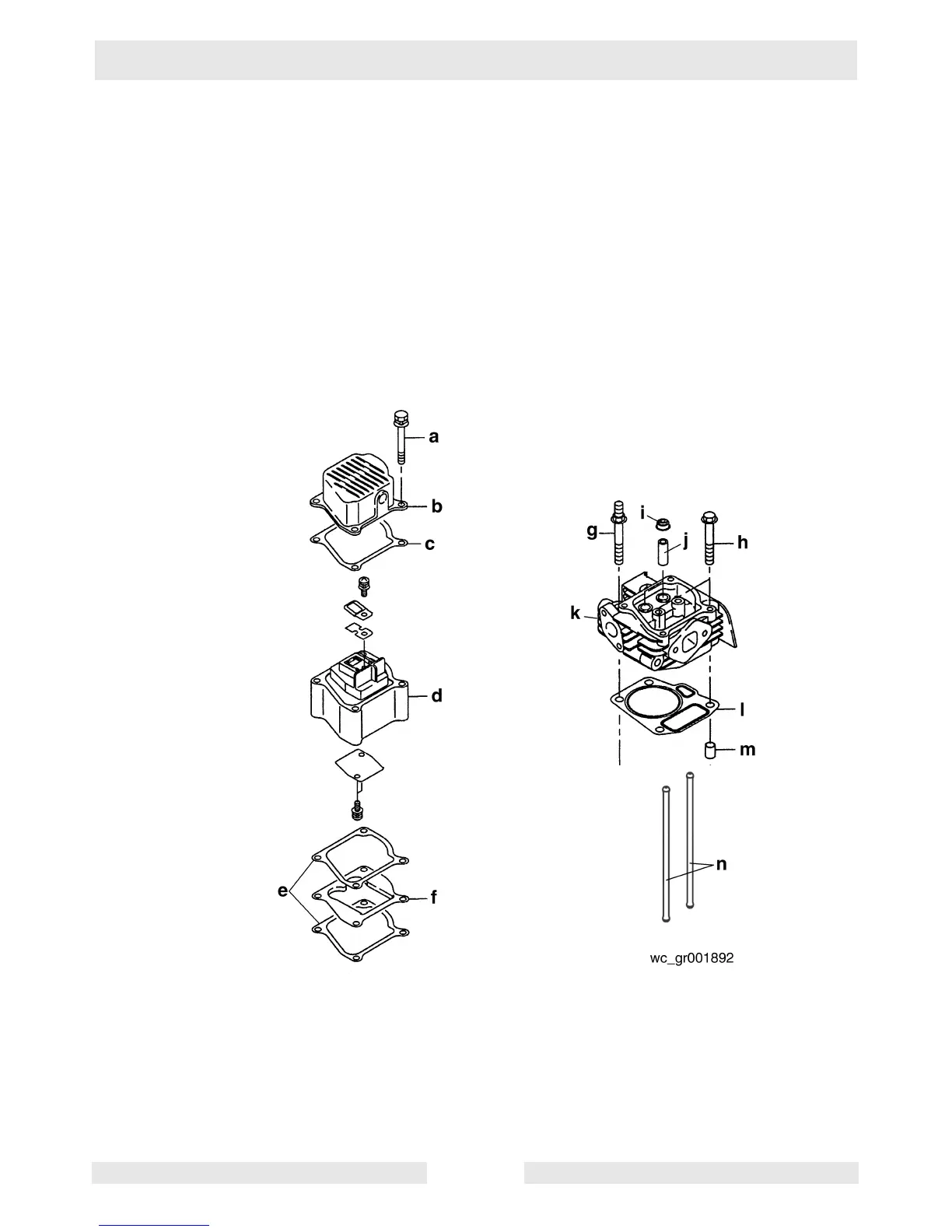

See Graphic: wc_gr001892
7.7.1 Remove the four M6 x 60 bolts (a) and remove the rocker cover (b) and
gasket (c).
7.7.2 Remove the breather (d), gaskets (e), and spacer (f).
7.7.3 Remove the two M8 x 55 bolts (g) and the two M8 bolts (h), remove
the cylinder head (k) and gasket (l)
7.7.4 Remove the pipes (m) and push rods (n).
7.7.5 If necessary, remove the seal (i) and the guide (j).
