WM 90 Repair Reassembly Procedures
wc_tx000389gb.fm 65
8.13 Installing Flywheel Magneto
8.13.1 Place the Woodruff key in the keyway of the crankshaft. Thoroughly
wipe off oil and grease from the tapered portion of the crankshaft and
also from the flywheel center hole.
8.13.2 Install the flywheel, M12 nut and washer to the crankshaft. Hold the
flywheel using a strap wrench and torque the nut to 44.2–49.1 Nm
(32.5–36.2 ft.lbs.).
8.14 Installing Ignition Coil

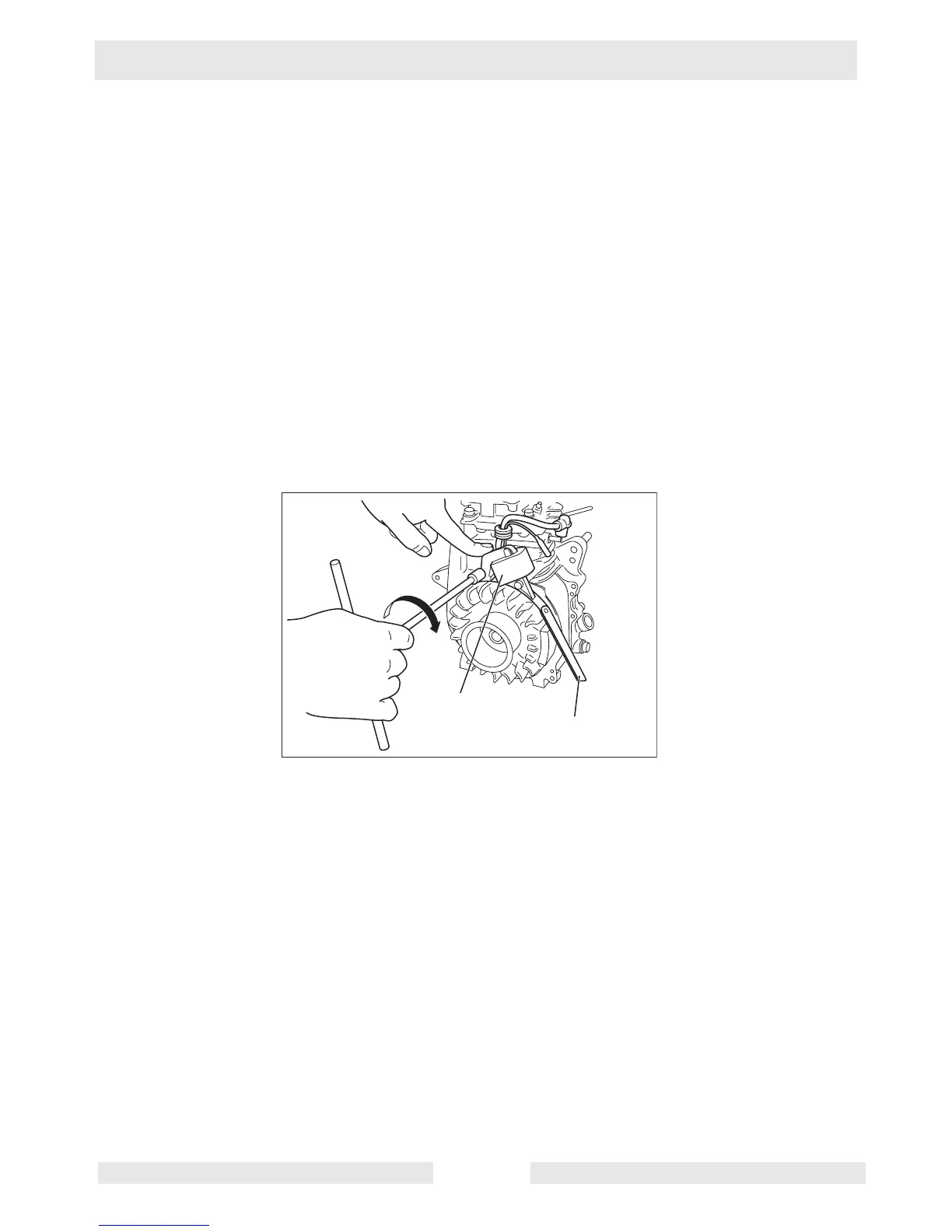

See Graphic: wc_gr001913
8.14.1 Using two M6 x 25 bolts and washers, mount the ignition coil (a) to the
engine. Before tightening the bolts, adjust the air gap using a thickness
gauge (b). Adjust the air gap to 0.3–0.5 mm (0.012–0.020 in.).
wc
_g
r001913
a
b
