Recoil Starter WM 90 Repair
wc_tx000627gb.fm 88
Rope
Check the rope length. It is 150 cm (60 in.) when new. If the rope is too
short, it may bottom out when pulled and damage the starter.
10.6 Assembling the Starter

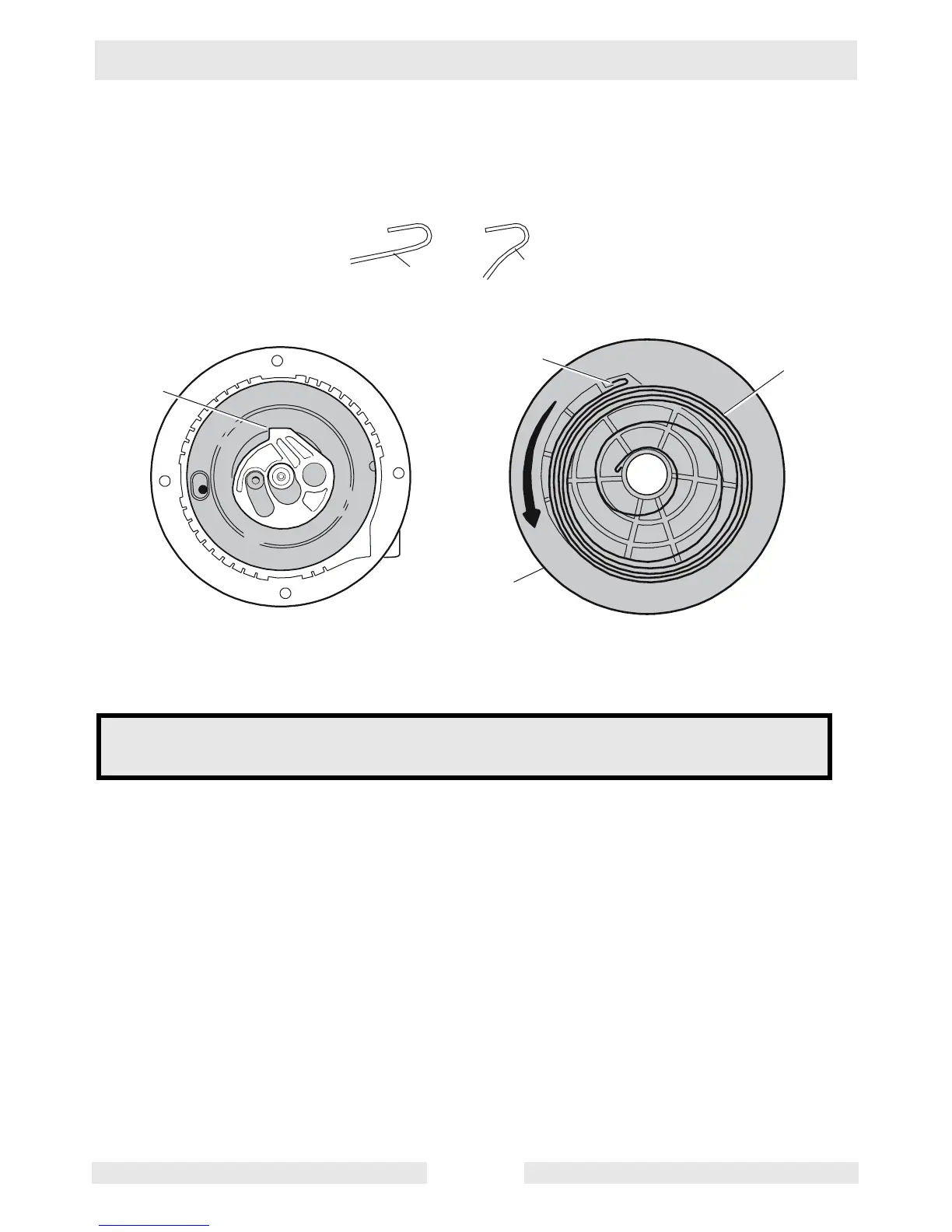

See Graphic: wc_gr002880 and wc_gr002881
10.6.1 Clean all the components of the starter before reassembling the
starter.
10.6.2 Note: To reduce dirt and dust from collecting between the spring
windings, avoid using grease to lubricate the tarter return spring or the
inside of the reel where the spring seats. Use a light lubricating oil such
as WD40 instead.
10.6.3 Install the spring (e)(5) by placing the outside end of the spring in the
slot (d) on the rope reel pulley (f) (6). Wrap the spring in a
counterclockwise direction inside the pulley until it is completely
wound. Oil the spring lightly once it is wound.
For machines with item numbers 0009386 rev. 112 and higher;
0009340 rev. 112 and higher; 0620051 rev. 108 and higher
a
c
b
wc_gr002881
d
e
f
