WAGNER 770 User Manual

SPRAY
PRIME
O
l
Proper Use and
Functions
Specications
Weight . . . . . . . . . . . . . . . . . . .25 lbs
Capacity . . . . . . . . . . . . . . . . . .2 gallon hopper
Power source . . . . . . . . . . . . . .½ Hp universal motor
Power requirement . . . . . . . . . .15 amp minimum circuit on
120 VAC, 60 Hz current
Generator . . . . . . . . . . . . . . . . .8000 Watt
Max. spraying pressure . . . . . .2800 PSI
Capability
Sprays a variety of paints (oil-based and latex),
primers, stains, preservatives and other nonabrasive
materials. Do not use materials with ash points
below 70° F (21° C)
Do not use!
This pump should not be used with textured materials,
block ller, lacquers, industrial enamels, or asphalt
sealer or materials containing HHC. See coating
supplier if ash point is not listed on the container
Safety features
Spray gun trigger lock and pressure diffuser; built-
in tip safety guard; PRIME/SPRAY knob for safe
pressure release. Conforms to ULSTD 1450. Certied
to CAN/CSAC 22.2 NO 68-92

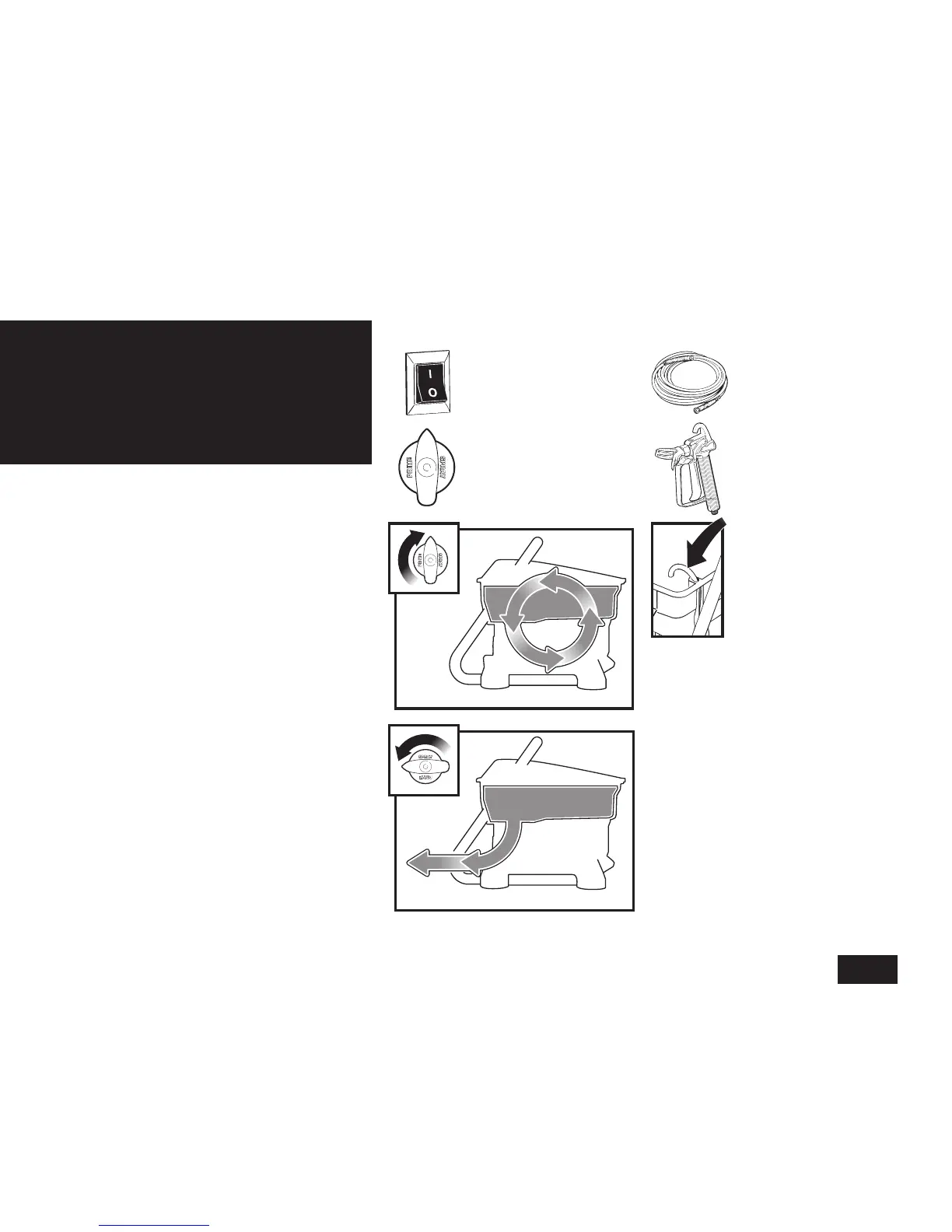

ON/OFF Switch: The ON/
OFF switch turns power
to sprayer on and off
(O=OFF,|=ON)
Spray Gun: The spray gun
controls the delivery of material
being pumped
Spray Hose: The spray hose
connects the spray gun to the
pump
Controls and Functions
Material Return Tube:
Fluid is sent back out through
the return tube and into the
hopper when the PRIME/
SPRAY knob is in the PRIME
position
PRIME/SPRAY Knob: The
PRIME/SPRAY knob directs
material to the material return
tube when set to PRIME (gure
A) or to spray hose when set to
SPRAY (gure B)
Figure A.
Figure B.
PRIME
SPRAY
Using the Wagner Paint Crew
Using the Wagner Paint Crew • Proper Use and Functions
English
6

WAGNER 770 Specifications

General

Spray Pattern Adjustment	Yes
Max Pressure	3000 PSI
Voltage	120 V
Type	Airless
Hose Length	25 ft
Power Source	Electric
Tip Size	0.015 in
