WAGNER AC 4600 - Data; Materials of the Parts Transporting Paint; Technical Data

14
AC 4600 Pro
A
D
E
C
B
B_02696
F
G
OPERATING MANUAL
EDITION 02/2009
PART NO. DOC394871
Metal Plastic
Tungsten carbide Stainless steel 1.4305 POM FPM
Stainless steel 1.4301 Stainless steel 1.4104 PTFE PA
4.3 DATA
4.3.1 MATERIALS OF THE PARTS TRANSPORTING PAINT
4.3.2 TECHNICAL DATA
Description Units Value
Maxi. air inlet pressure MPa/ psi/ bar 0.8/ 120/ 8
Maxi. material pressure MPa/ psi/ bar 25/ 3625/ 250
Paint connection Inch NPSM1/4
Air connection Inch G1/4“
Filter insert ** Mesh 100
Weight g/ oz 671 / 23.7
pH range of the material pH 3.5 - 9
Maxi. temperature material °C/ °F 55/ 131
Maxi. temperature air °C/ °F 43/ 109
Sound level at 0.3 MPa; 3 bar; 43.5 psi air
pressure and 11 MPa; 110 bar; 1549 psi material
pressure
***
dB(A) < 82
** Other fi lter types see chapter 9.4
*** A rated sound pressure level measured at 0.5m distance according to DIN EN ISO 3746
-1995.

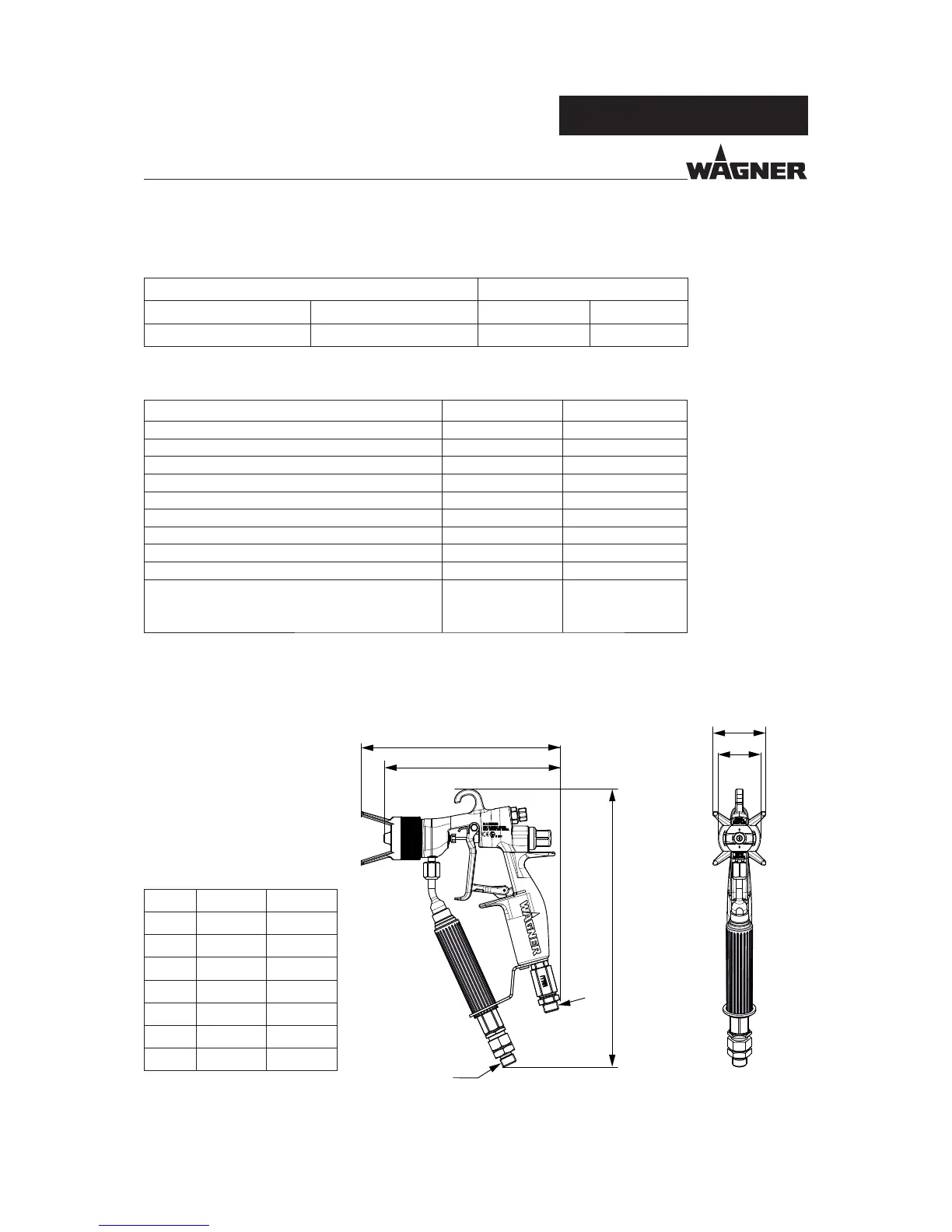

Dimensions
Dim. mm inch
A 181 7.13
B 248 9.76
C 48 1.88
D 160 6.30
E 38.5 1.52
F - NPSM1/4“
G - G1/4“
