26
AC 4600 Pro
B_02703
B
C
A
D
B_02704
OPERATING MANUAL
EDITION 02/2009
PART NO. DOC394871

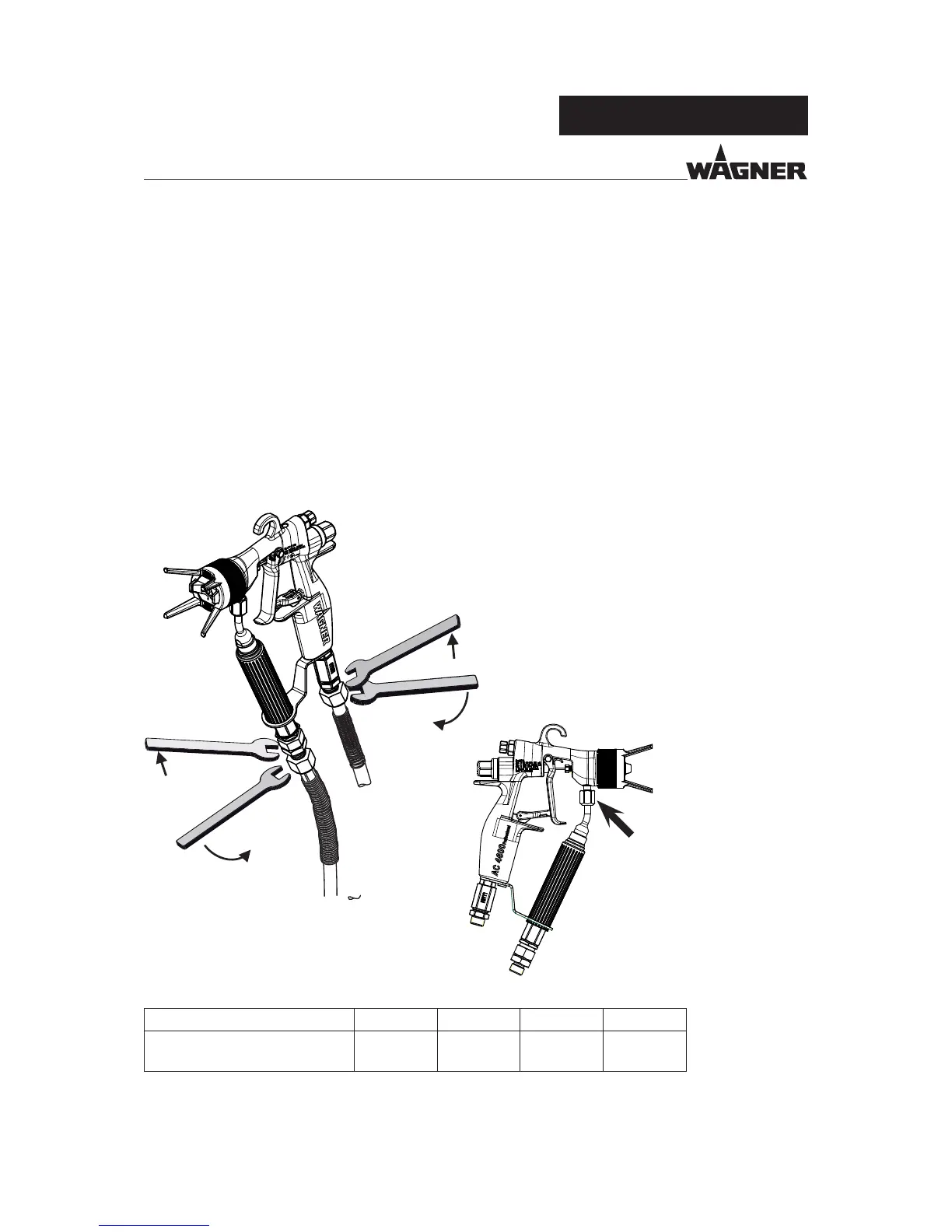

6.2 REPLACING THE MATERIAL HOSE OR AIR HOSE
1. Finishing work and cleaning.
2. Relieve spray gun and unit pressure.
3. Secure gun with trigger safety catch.
Material hose
4. Place open-ended wrench SW A on fl ats of paint connection and counterhold.
5. Turn nut to the right with open-ended wrench SW B and unscrew material hose.
Air hose
4. Place open-ended wrench SW D on fl ats of air connection and counterhold.
5. Turn nut to the right with open-ended wrench SW C and unscrew air hose.
6. Mounting:
Fit the material hose respectively air hose by hand and tighten with 2 open-ended
wrenches.
Counterhold
Note:
Do not unscrew the fi lter
housing. The nut must only be
unscrewed by WAGNER- Serv-
ice-Agency.
Description Key A Key B Key C Key D
AC 4600 Professional NPS 1/4“
SW 17 mm
0.669 inch
SW 19 mm
0.748 inch
SW 17 mm
0.669 inch
SW 14 mm
0.551 inch
Counterhold
