22
AC 4600 Pro
B_02261
x
A
B
C
D
B_02701
OPERATING MANUAL
EDITION 02/2009
PART NO. DOC394871

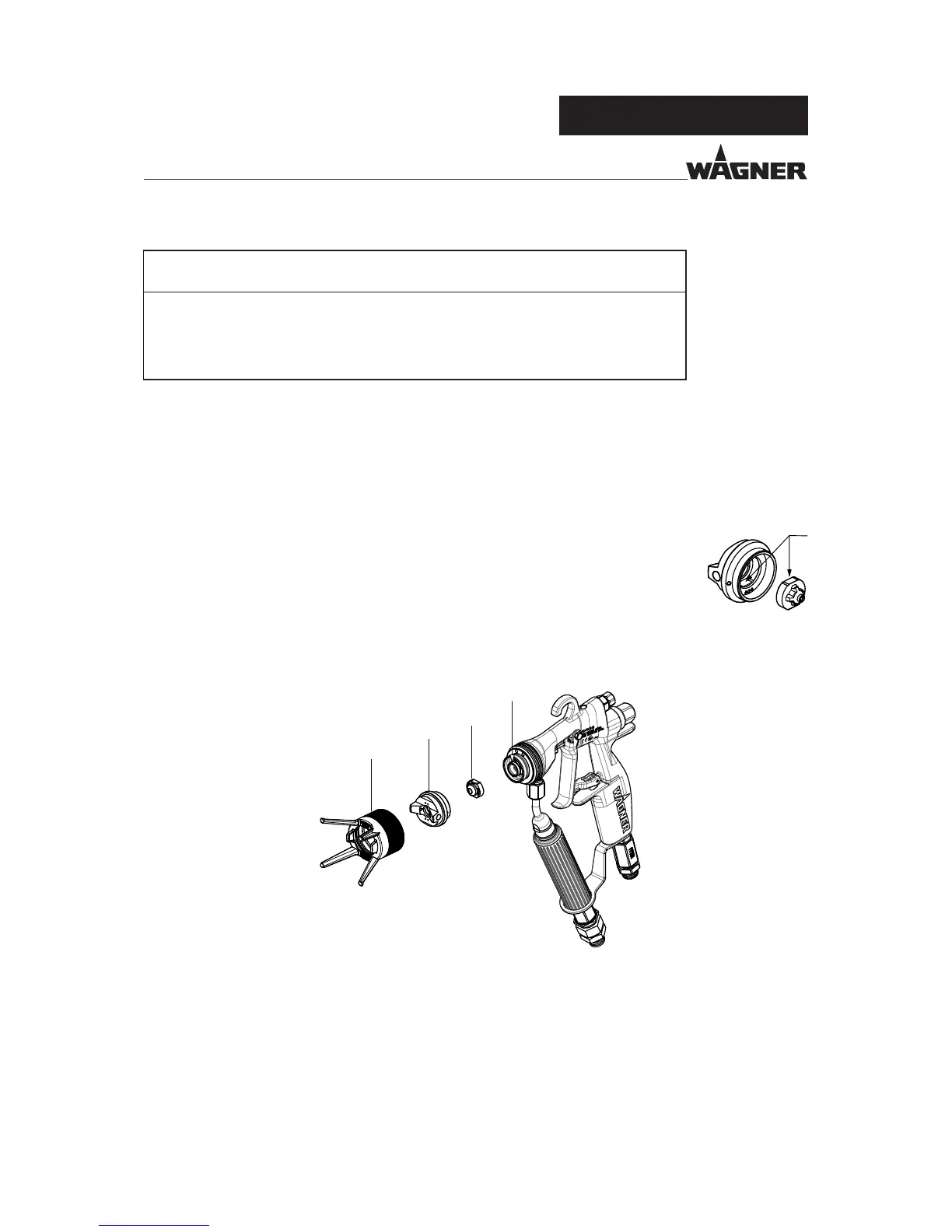

5.4.3 CHANGING THE AIRCOAT NOZZLE
1. Relieve spray gun and unit pressure.
2. Secure gun with trigger safety catch.
3. Screw off the union nut (A).
4. Remove air cap (B).
5. Press AirCoat nozzle (C) out of the air cap (B) by hand and brush with cleaning solvent
until all remaining paint has been dissolved.
6. Mounting:
Place AirCoat nozzle (C) in nozzle seal (D).
7. Fit the aircap (B) over the nozzle (C), ensuring that the location fl ats (X) are in line.
8. Fit the union nut with nozzle guard (A) and tighten by hand.
CAUTION
Defective AirCoat nozzle!
Insufficient paint application quality
Do not use sharp-edged objects to treat hard metal on the AirCoat nozzle.
SIHI_0020_GB
