WAGNER GM5000 User Manual

40
GM 5000EAC.
8
9
7
B_03198
SW6
SW5
SW2
1
4
5
2
6
7
3
ø 3.0
B_03199
SW14
SW9
SW5
SW8
Torx 20
2
1
OPERATING MANUAL
EDITION 03/2012 PART NUMBER DOC 2319150

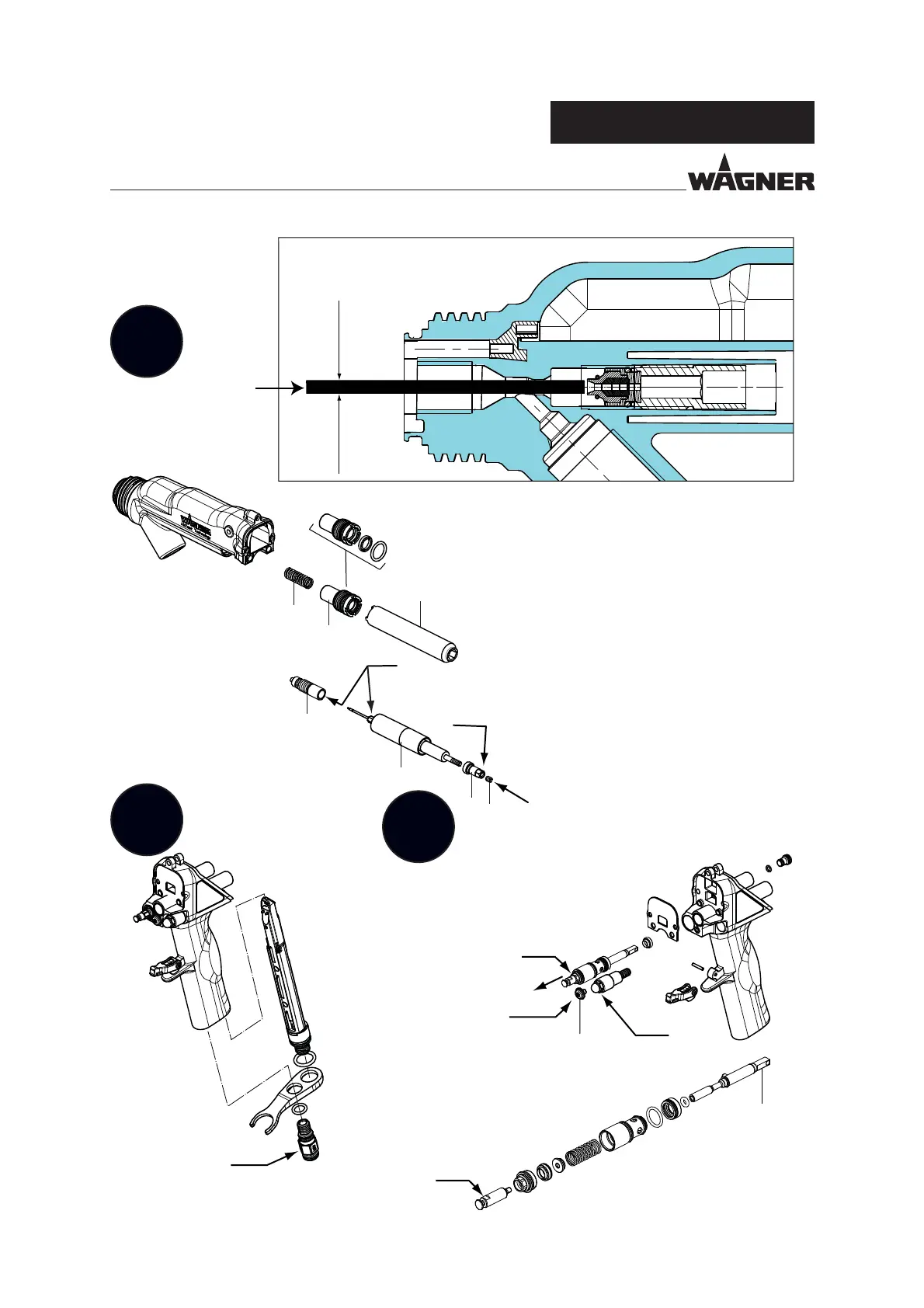

1. Remove pressure spring (4).
2. Loosen clamping screw (1)
completely with assembly tool (5).
3. Unscrew the complete package (3)
via the complete valve rod unit (2, 6
and 7) or pull out the valve rod unit
and unscrew it using an Allen key
SW5.
4. If the loosened package (3) in the
hole jammed, emit from the front
(see upper image).
Removing air valve:
Unscrew and remove sealing
nut SW8.
Hold the piston rear
(2) and unscrew piston front
SW5.
1. Undo the oval head screw (1).
2. Pull the air valve (2) out off the
hole.

WAGNER GM5000 Specifications

General

Brand	WAGNER
Model	GM5000
Category	Paint Sprayer
Language	English
