WAGO 852 Series User Manual

WAGO ETHERNET Accessories 852 Device Description 17
852-111 Industrial ECO Switch
Manual
Version 1.3.1
4.1 View
4.1.1 Front View

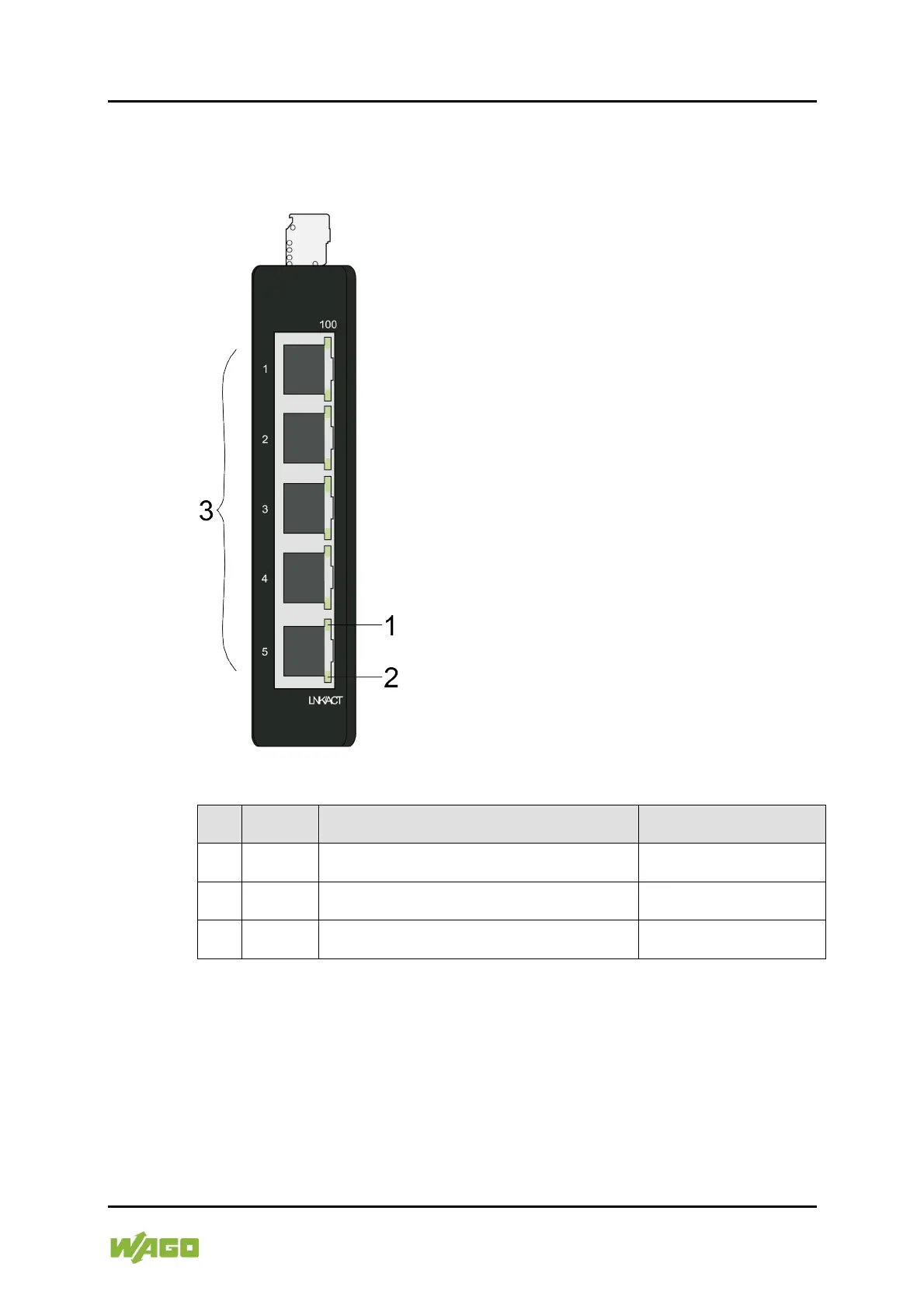

Figure 1: Front View of Industrial ECO Switch
Table 3: Legend for Figure „ Front View of Industrial ECO Switch “
Pos.
Descrip-
tion
Meaning Details see Section
1 -
Status LED TX Port 100-Mbit/s
(1 LED for each port)
“Device Description” >
“Display Elements”
2 -
Status LED T Port LNK/ACT
(1 LED for each port)
“Device Description” >
“Display Elements”
3 - Port 5 x RJ-45 (10/100BASE TX Ports)
“Device Description” >
“Connectors”

WAGO 852 Series Specifications

General

Model	852 Series
Category	Switch
Ports	8, 16
Data Rate	10/100 Mbps
Power Supply	24 VDC (typically)
Mounting Type	DIN rail
Switch Type	Managed
