WAGO 852 Series User Manual

20 Device Description WAGO ETHERNET Accessories 852
852-111 Industrial ECO Switch
Manual
Version 1.3.1
4.2.3 Network Connection
The Industrial eco switch uses ports with copper connectors that ca be used with
ETHERNET.
4.2.3.1 10/100BASE-TX Ports

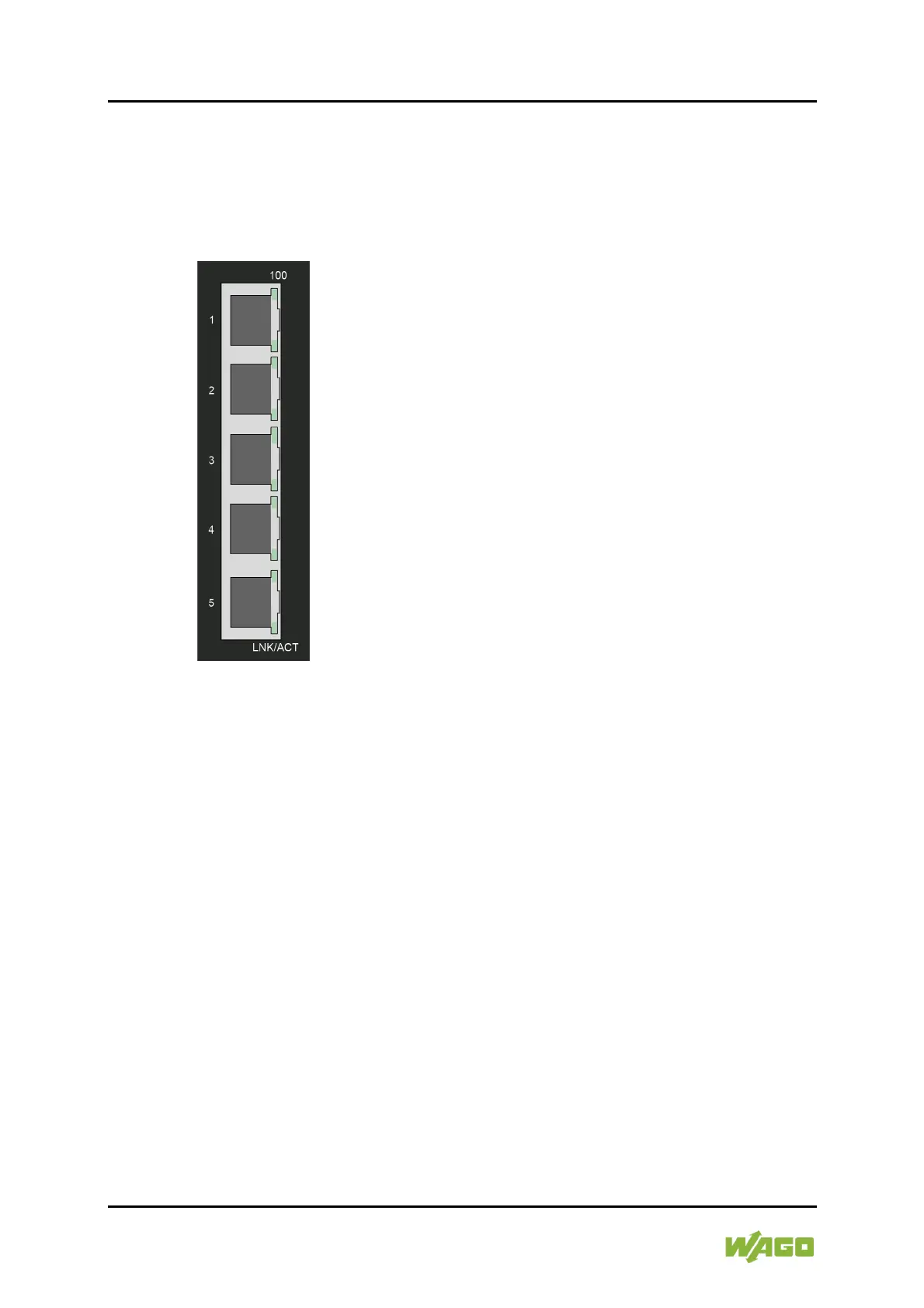

Figure 5: 10/100BASE-TX
The 10/100BASE-TX ports support network speeds of either 10 Mbit/s or
100 Mbit/s, and can operate in half- and full-duplex transfer modes. The ports
also offer automatic MDI/MDI-X crossover detection that gives true “plug and
play” capability – just plug the network cables into the ports and the ports will
adjust according to the end-node devices. The following are the recommended
cables for the RJ-45 connectors:
• 100 m – Cat. 5 or better

WAGO 852 Series Specifications

General

Model	852 Series
Category	Switch
Ports	8, 16
Data Rate	10/100 Mbps
Power Supply	24 VDC (typically)
Mounting Type	DIN rail
Switch Type	Managed
