4.3.2 Network LEDs

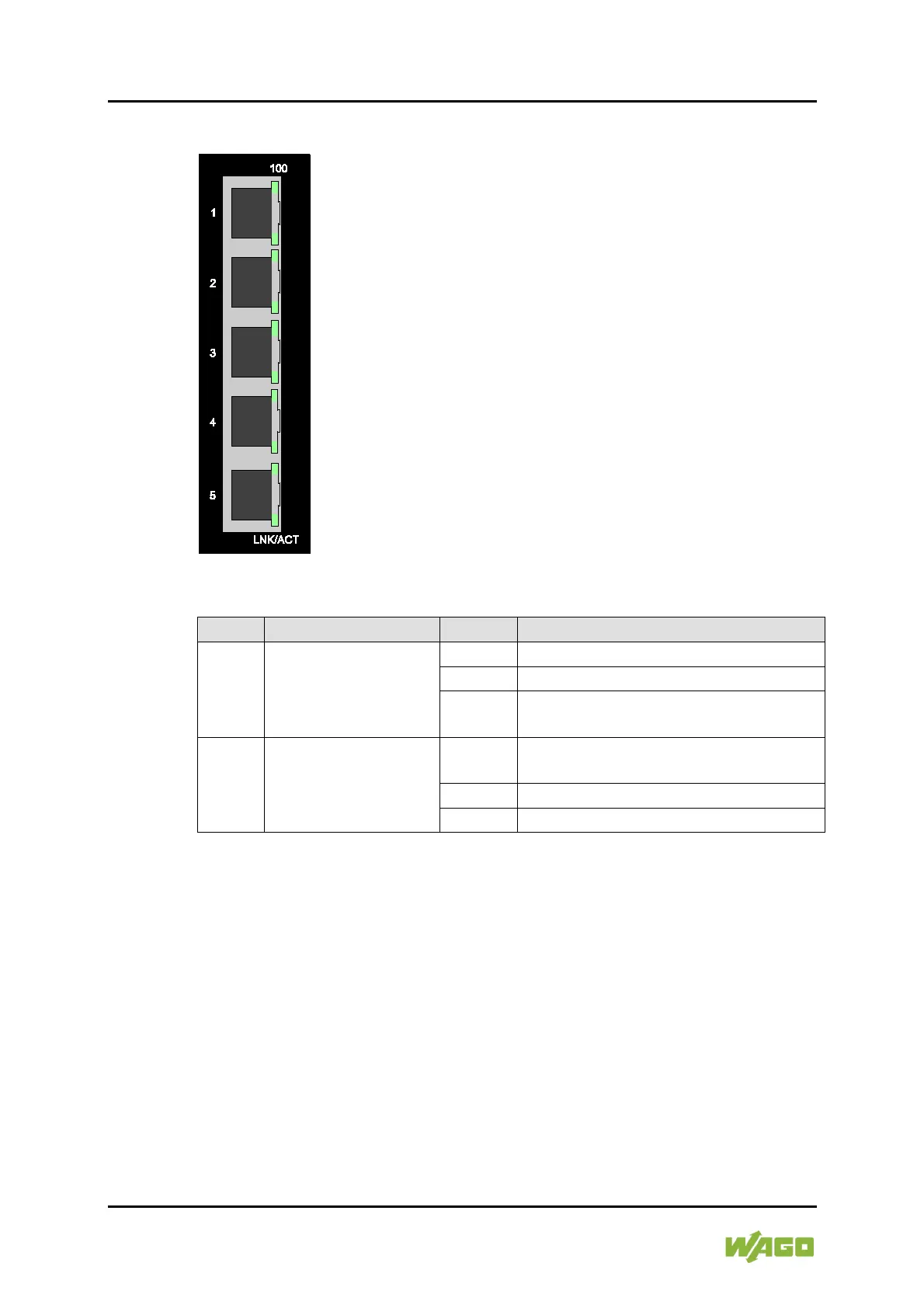

Figure 7: Network LEDs
Table 7: Legend for “Network LEDs” figure
LED
Name
Status
Description
100
100BASE-TX-Port-
LED
(1 LED for each port)
Green
Port operating at 100 Mbit/s.
Flashing
Data traffic being routed over the port.
OFF
Connection in operation at less than
100 Mbit/s.
LNK/
ACT
LNK/ACT-Port-LED
(1 LED for each port)
Green
Illuminated when connectors are
attached (1 LED for each port).
Flashing
Data traffic passing through port.
OFF
No valid link established on port.
