852-111 Industrial ECO Switch
Manual
Version 1.3.1
4.1.2 Top View

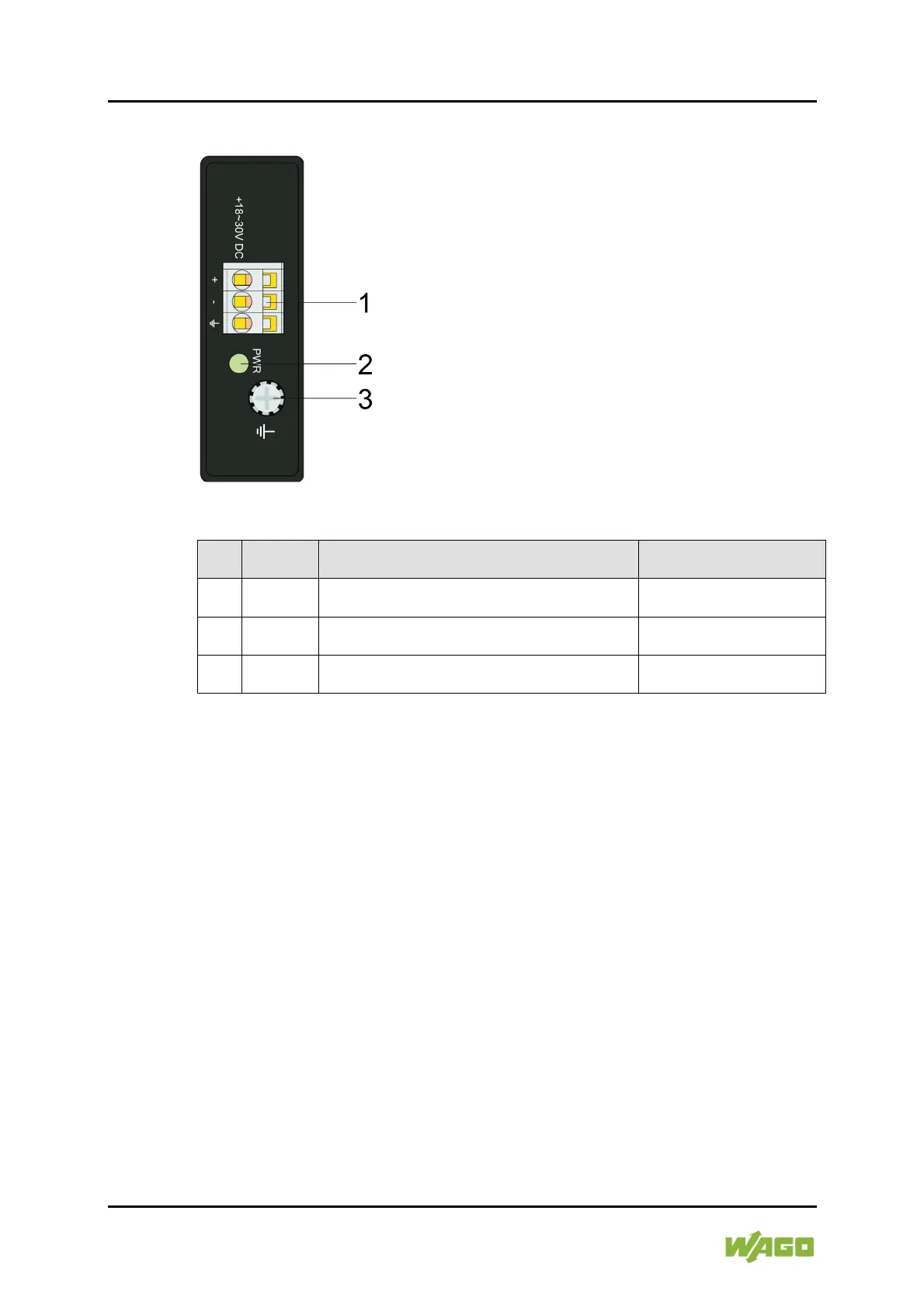

Figure 2: Top View of the Industrial ECO Switch
Table 4: Legend for Figure „ Top View of the Industrial ECO Switch “
Pos.
Descrip-
tion
Meaning Details see Section
1 -
Terminal block (male connector) for power supply
(PWR)
“Device Description” >
“Connectors”
2 PWR Status LED Power Supply
“Device Description” >
“Display Elements”
3 - Grounding screw
“Device Description” >
“Grounding screw”

WAGO 852 Series Specifications

General

Model	852 Series
Category	Switch
Ports	8, 16
Data Rate	10/100 Mbps
Power Supply	24 VDC (typically)
Mounting Type	DIN rail
Switch Type	Managed
