Walker S14 - Page 33

Operating Instructions
29

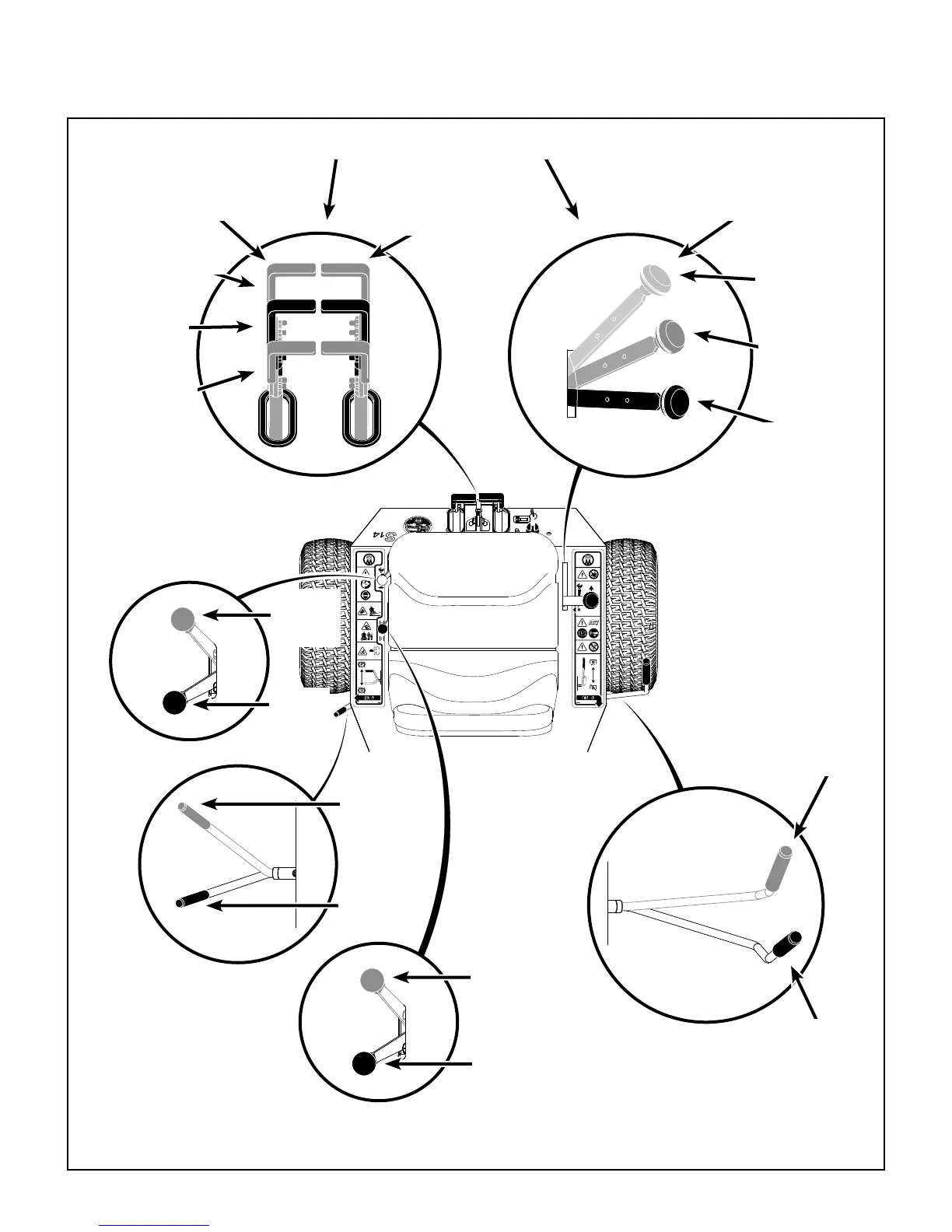

Operating Controls (Top View from Drivers Point of View)
<15°
1. 2.
BLADE CLUTCH
(PTO)
CHOKE
THROTTLE
PARKING
BRAKE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
Neutral-Park
Position
RIGHT WHEEL
STEERING LEVER
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Reverse Drive
Wheel Motion
Position
Neutral-Park
Position
FORWARD SPEED
CONTROL LEVER (FSC)
LEFT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
Fast
Throttle
Position
Idle
Position
OFF Position
ON Position
Disengaged
Position
Engaged
Position
Engaged
Position
Disengaged
Position
