Operating Instructions
38
GRASS HANDLING SYSTEM (GHS)
GHS Model Only

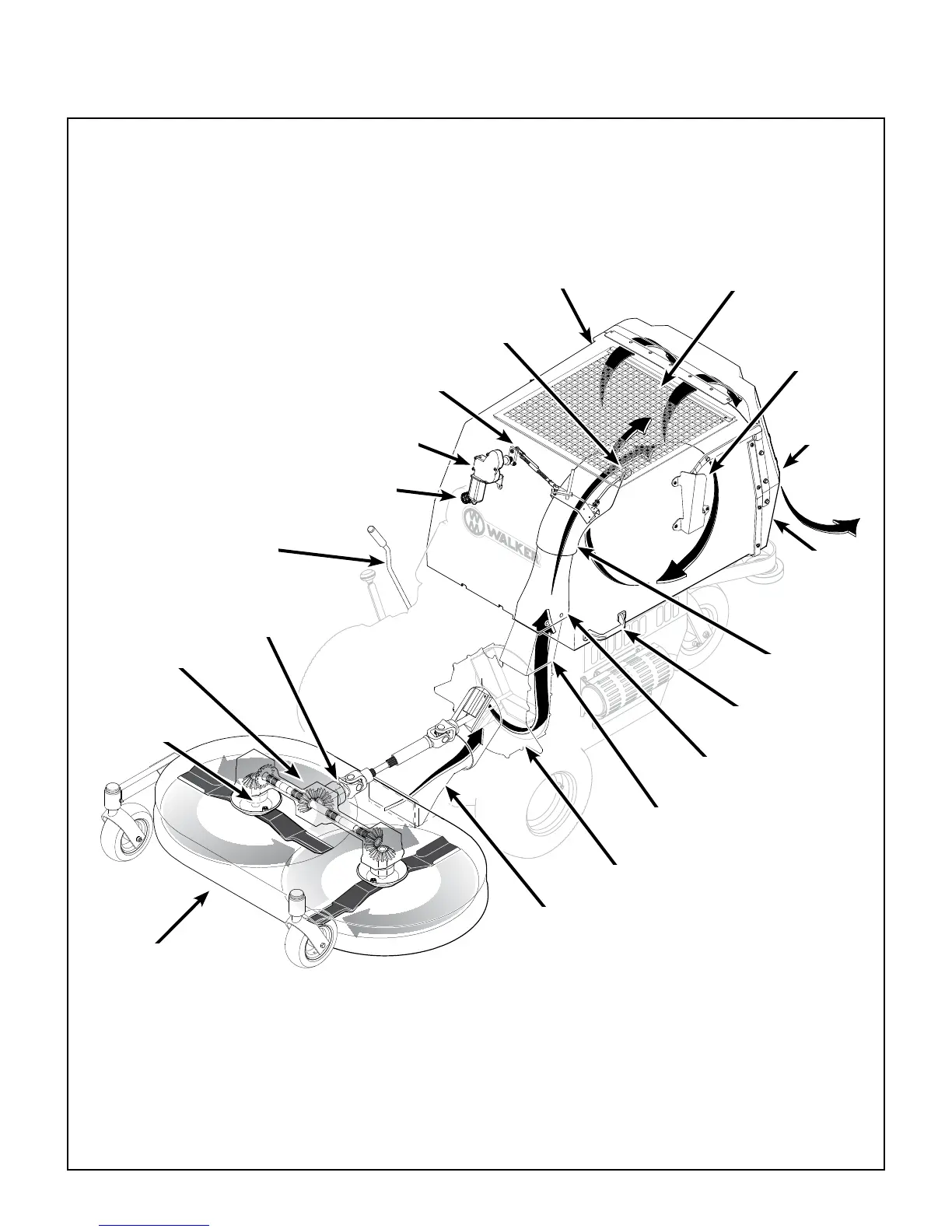

GHS Flow and Components
Rear Discharge
Mower Deck
PTO
Clutch
Shear
Bolt
(Gear Driven
Decks Only)
PTO
and
Blade
Gear Drive
Exhaust Screen
(Removable)
Catcher
Door Spring
(Not Visible)
Actuator
Rod
Powerl
®
Drive Motor
Grass-Pak
®
V
ane Switch
“Full” Signal
Horn
Catcher
Door
Grass
Catcher
Catcher
Air Exhaust
Shear Pin
(If Equipped)
Powerl
®
Delivery Spout
Dump
Handle
Catcher
Chute
Body
Chute
Assembly
Blower
Deck
Discharge Chute
