Walker S14 User Manual

65
Maintenance Instructions REPLACING/REPAIRING
Ground Drive Belt
1. To remove the ground drive belt:
a. Raise the spring-loaded idler to relax belt.
b. Slide belt off pulleys, then slowly release
the idler.

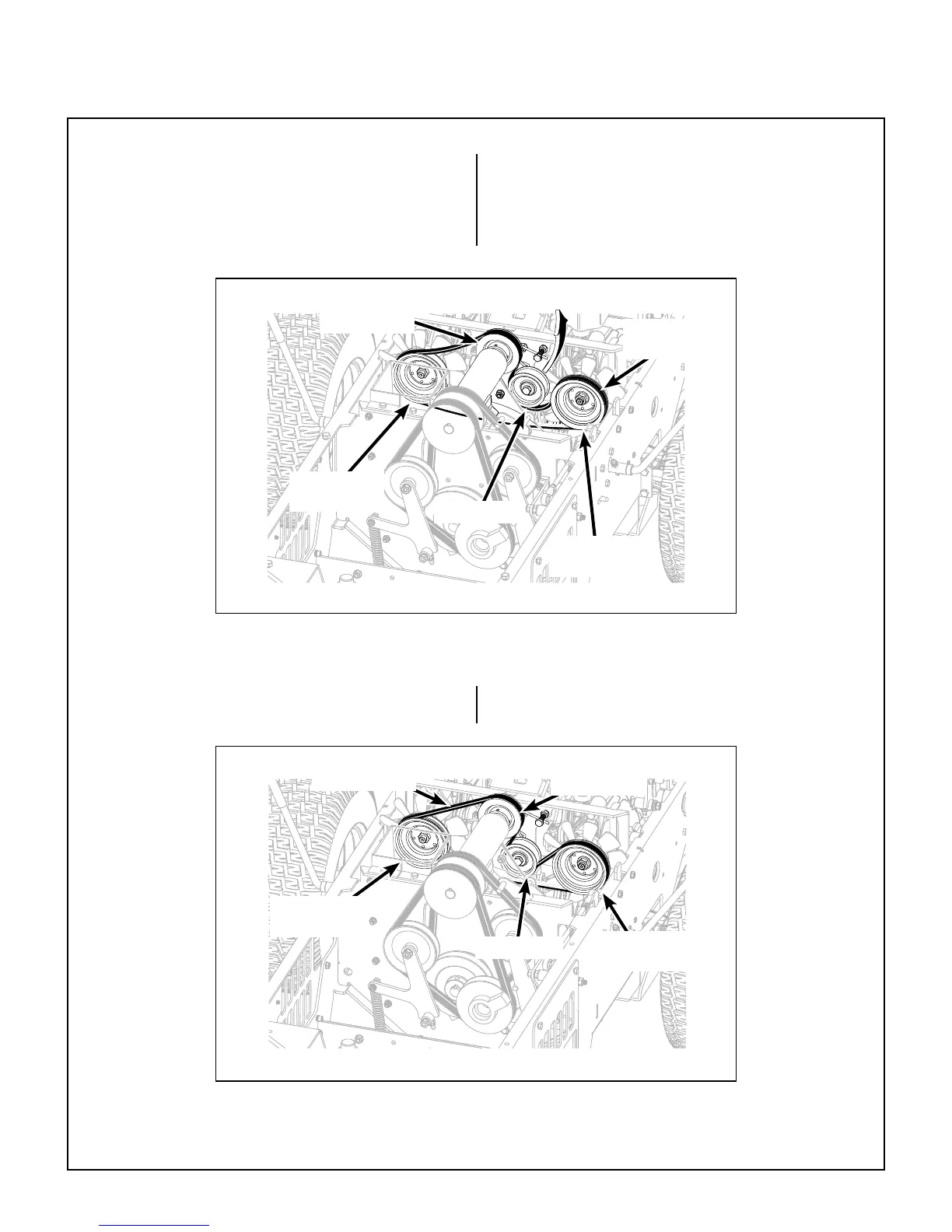

Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Engaged)
Idler Pulley
Transmission
Drive Pulley
Hydrostatic
Drive Pulley
Hydrostatic
Drive Pulley
Ground Drive
Belt
Raise Idler Pulley to Relax Belt
Transmission
Drive Pulley
Hydrostatic
Drive Pulley
Idler Pulley
Ground Drive
Belt
Hydrostatic
Drive Pulley
