Walker S14 User Manual

63
Maintenance Instructions REPLACING/REPAIRING
Engine Belt
1. To remove the engine belt:
a. Relax belt by depressing idler arm.
b. Roll the belt off the pulleys and remove the
belt, then slowly release the idler.

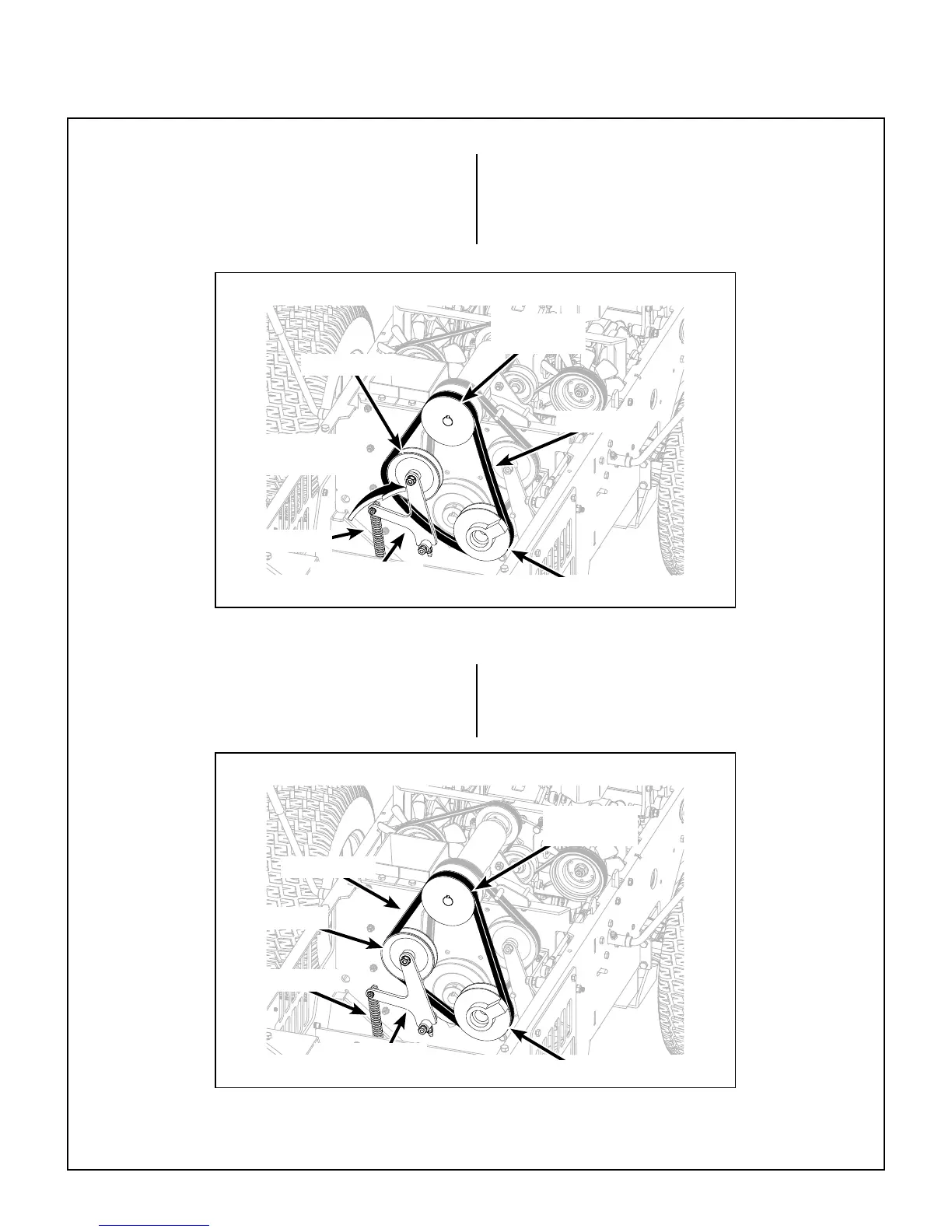

Engine Belt (Disengaged)
Engine Belt (Engaged)
2. To replace the engine belt:
a. Reverse the removal procedure to replace
the engine belt.
Belt Tightener
Arm
Idler Pulley
Engine Pulley
Tension Spring
Engine Belt
Compound
Pulley
Push Idler Pulley
to Relax Belt
Engine Belt
Compound
Pulley
Idler Pulley
Belt Tightener
Arm
Engine Pulley
Tension Spring
