Maintenance Instructions REPLACING/REPAIRING
PTO Drive Belt
1. To remove the PTO drive belt:
a. Remove the engine belt, as described in
previous section.
b. With the PTO clutch disengaged, roll the
belt off the idler pulley and remove the belt.
PTO Drive Belt (Disengaged)
PTO Drive Belt (Engaged)
2. To replace the PTO belt:
a. Install the PTO drive belt by reversing the
removal procedure. Replace engine belt.
NOTE: If installing a new PTO belt is difcult, the
blade brake band adjustment nut might need to be
loosened. If so, follow the Blade Brake Band Ad-
justment procedure in this section.

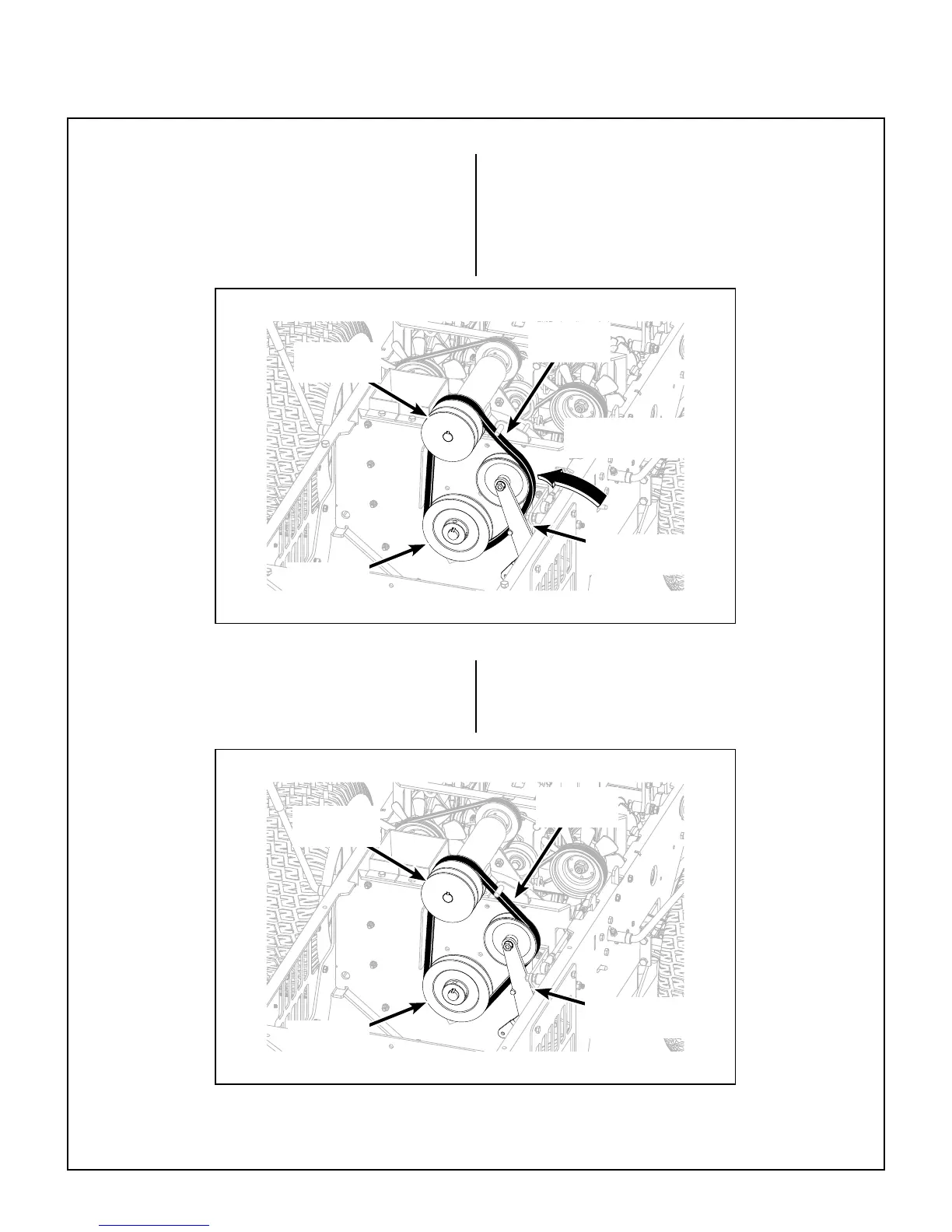

PTO Drive
Pulley
PTO
Drive Belt
PTO/Clutch/Brake
Actuator Arm
Compound
Pulley
Push Actuator Pulley
to Relax Belt
PTO Drive
Pulley
PTO
Drive Belt
PTO/Clutch/Brake
Actuator Arm
Compound
Pulley
