Maintenance Instructions LUBRICATION
48
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease
Δ
2
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Universal Joint Shaft Assembly Grease** 1
7 Tee Gearbox, Deck Oil* 1
8 Blade Drive Gearbox Oil* 2
9 FSC Lever Pivot Grease 1
10 Steering Lever Pivot Grease 2
11 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
12 Transaxle Oil Reservoir Oil/20W-50 2
13 Universal Joint Tube Assembly Grease** 1
14 Deck Support Arm Pivot Grease 2
15 Hydro Idler Pivot Grease 1
16 PTO Clutch Lever Pivot Grease 1
17 Body Latch Pivot Oil 1
18 Clutch Actuator Spring Assembly Grease 1
(Grease Slide Area)
19 PTO Belt Tightener Pivot Grease 1
20 Engine Dipstick / Oil Filler Oil*** 1
21 Catcher Hinge Point Oil 2
22 Choke Control Cable Ends Oil 2
23 Throttle Control Cable Ends Oil 2
24 Engine Idler Pivot Grease 1
25 Parking Brake Lever Grease 1
26 Choke Control Pivot Oil 1
27 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and sealed requiring
no scheduled lubrication. Oil level should be checked only
when an oil leak is noted.
** Grease every eight (8) hours.
*** Refer to Engine Oil located on page 46.
Δ Belt Driven Decks Only
NOTE: DS42 Belt Drive and DC36R Tilt-Up Decks are shown for
reference. For other Deck Lubrication Points, Refer to
Deck and Carrier Frame Illustrated
Parts Manual.

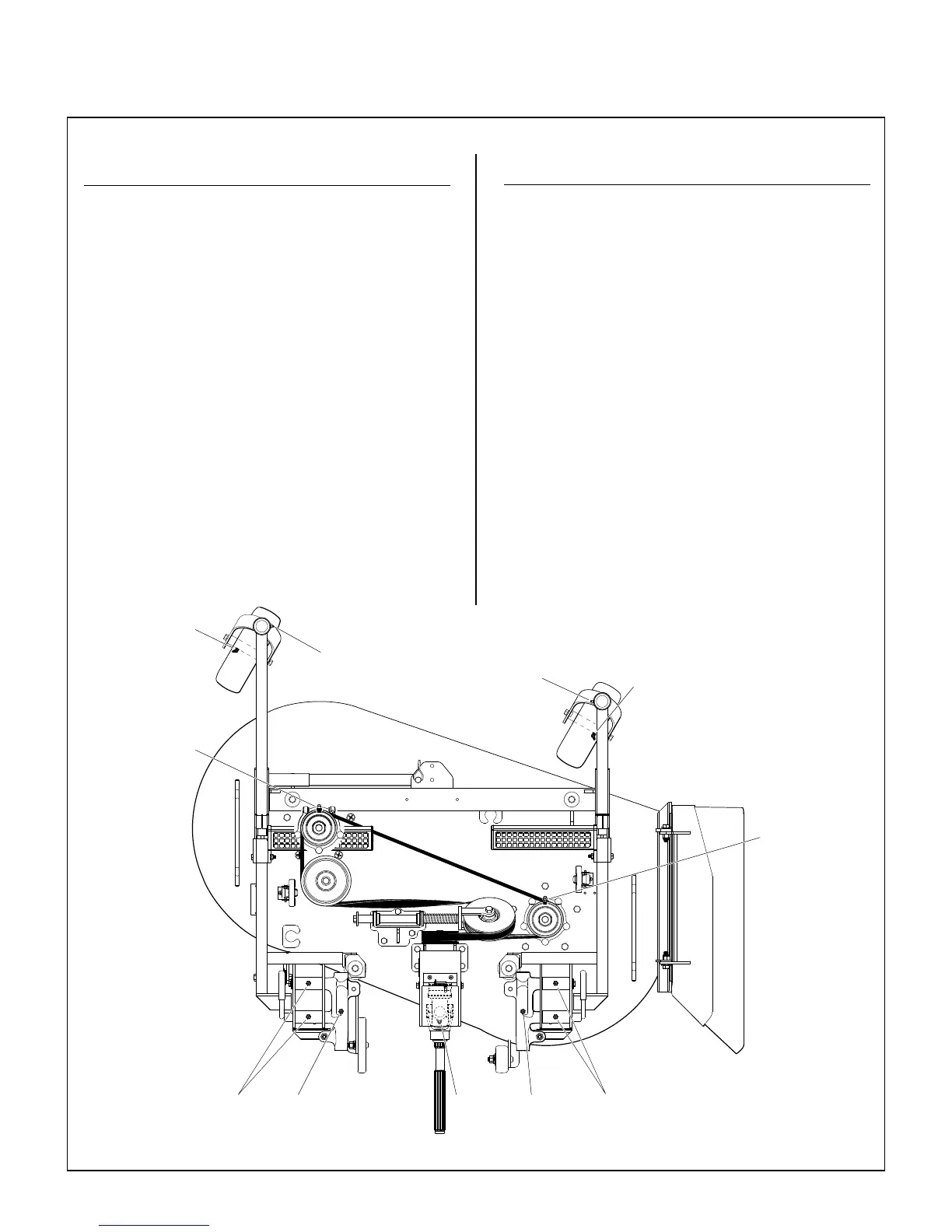

Lubrication Points for Optional Belt Driven Decks (DS42 Belt Drive Shown)
3
1
2
1
2
3
4 5 5 46
